Gear housingfor 5 speed manual transmiss cwm — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - Mounting parts for engine and transmission. for 4-speed automatic gearbox

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 31 Primary OEM: 085 301 279 A, 085 301 103 H, N 010 421 1

Gear housingfor 5 speed manual transmiss cwm for the Volkswagen Golf Mk3 (1996): factory exploded diagram 301030 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 28 OEM part numbers across 31 catalogued positions including 085 301 279 A, 085 301 103 H and N 010 421 1. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 28 OEM part numbers across 31 numbered positions.

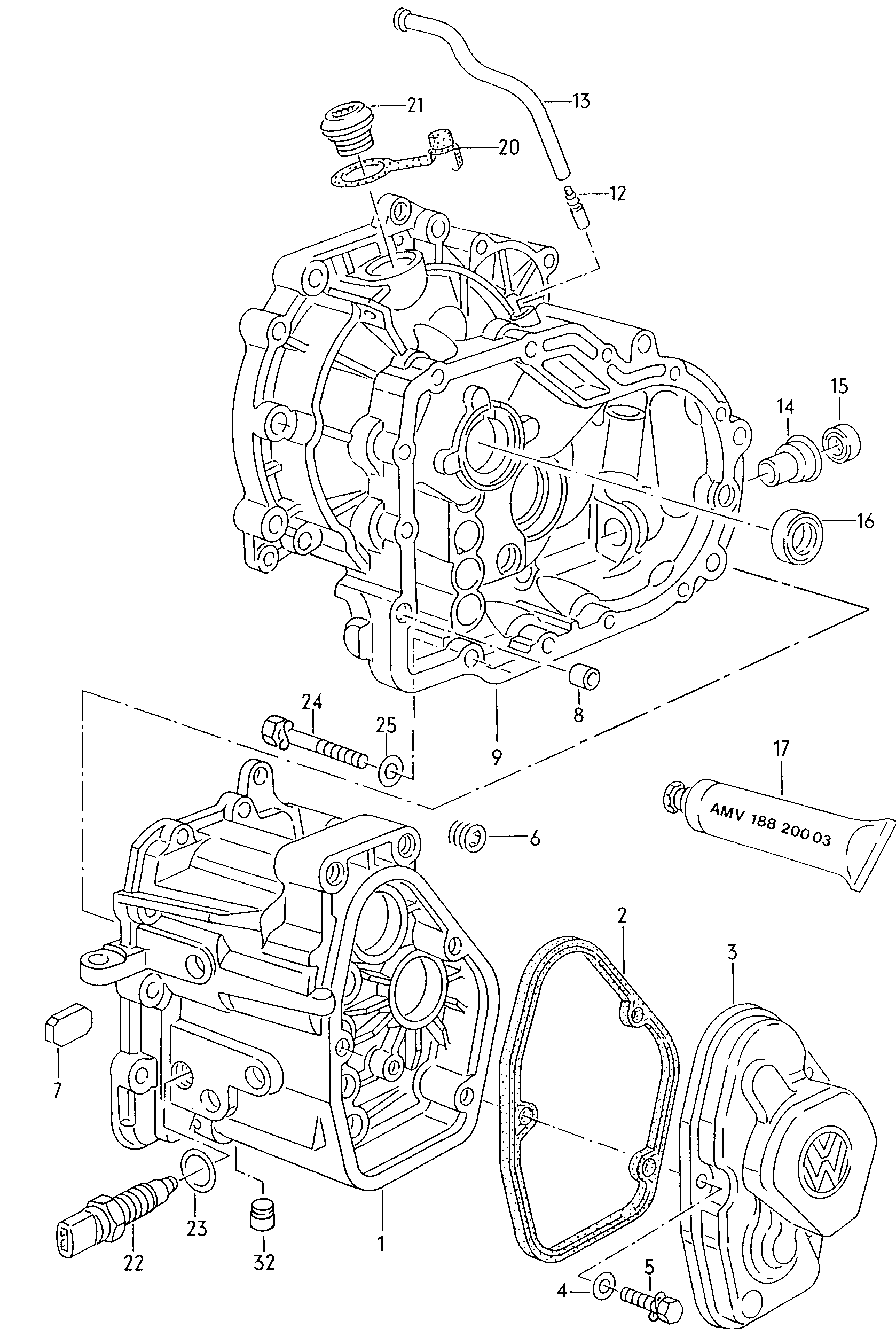

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Gear housingfor 5 speed manual transmiss. CWM
 —
-
locking screw see illustration: 311-082
311-082
 —
-
oil drip tray DCT,DDJ
 085 301 279 A
(1)
Gear housing
 085 301 103 H
(24)
Hexagon bolt M 8 X 98
M 8 X 98
 N 010 421 1
(9)
clutch housing
 085 301 107 L
1
Gear housing also use: >> G 22 105085 301 279 A
>> G 22 105085 301 279 A
 085 301 103 S
1
Gear housing
 085 301 103 E
12
ventilation union
 084 301 473 C
13
Breather line
 084 301 474
15
radial shaft seal 15 X 24 X 7
15 X 24 X 7
 085 301 227
15
radial shaft seal 24 X 7
24 X 7
 001 301 227
16
Shaft oil seal 21,8 X 35 X 7
21,8 X 35 X 7
 085 311 113
17
Sealing compound paste 100 G
100 G
 AMV 188 200 03
2
Seal
 085 301 215 A
20
Cover cap
 020 301 132
21
sealing plug M 36 X 1,5
M 36 X 1,5
 020 301 129 B
22
Switch see illustration: 919-060
919-060
 —
23
seal ring
 020 301 244
24
Hexagon bolt M 8 X 50
M 8 X 50
 N 040 262 2
25
Washer 8,4 X 15 X 1,6
8,4 X 15 X 1,6
 N 011 558 11
3
Gearbox cover
 085 301 211
32
Bungs
 085 301 115
4
Washer 7,4 X 22 X 2
7,4 X 22 X 2
 N 011 667 2
5
Hex collared bolt M 7 X 16
M 7 X 16
 N 101 136 01
6
sealing plug M 24 X 1,5
M 24 X 1,5
 012 301 127 F
7
Shaped magnet
 084 301 143 A
8
dowel sleeve 12 X 9,5
12 X 9,5
 02M 301 153
8
dowel sleeve 12 X 9,5
12 X 9,5
 020 301 153 A
9
clutch housing
 085 301 107 AG
9
clutch housing
 085 301 107 G

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1996
Generation region
RDW
Generation code
166
Factory group
02 Gearbox
Factory subgroup
301030

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gear housingfor 5 speed manual transmiss cwm diagram for the Mk3 Golf?
This diagram lists 28 OEM part numbers for the Mk3 Golf. The first three are 085 301 279 A, 085 301 103 H and N 010 421 1.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1996 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
