Gears shaftsfor 5 speed manual transmiss — Mk3 Golf Gearbox (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - For 5 speed manual transmiss.. gears and shafts

Generation: Mk3 1994 - 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 105 Primary OEM: 02J 311 241 D, 02J 311 103 A, 020 311 391 B

Gears shaftsfor 5 speed manual transmiss for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 311038 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 104 OEM part numbers across 105 catalogued positions including 02J 311 241 D, 02J 311 103 A and 020 311 391 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 104 OEM part numbers across 105 numbered positions.

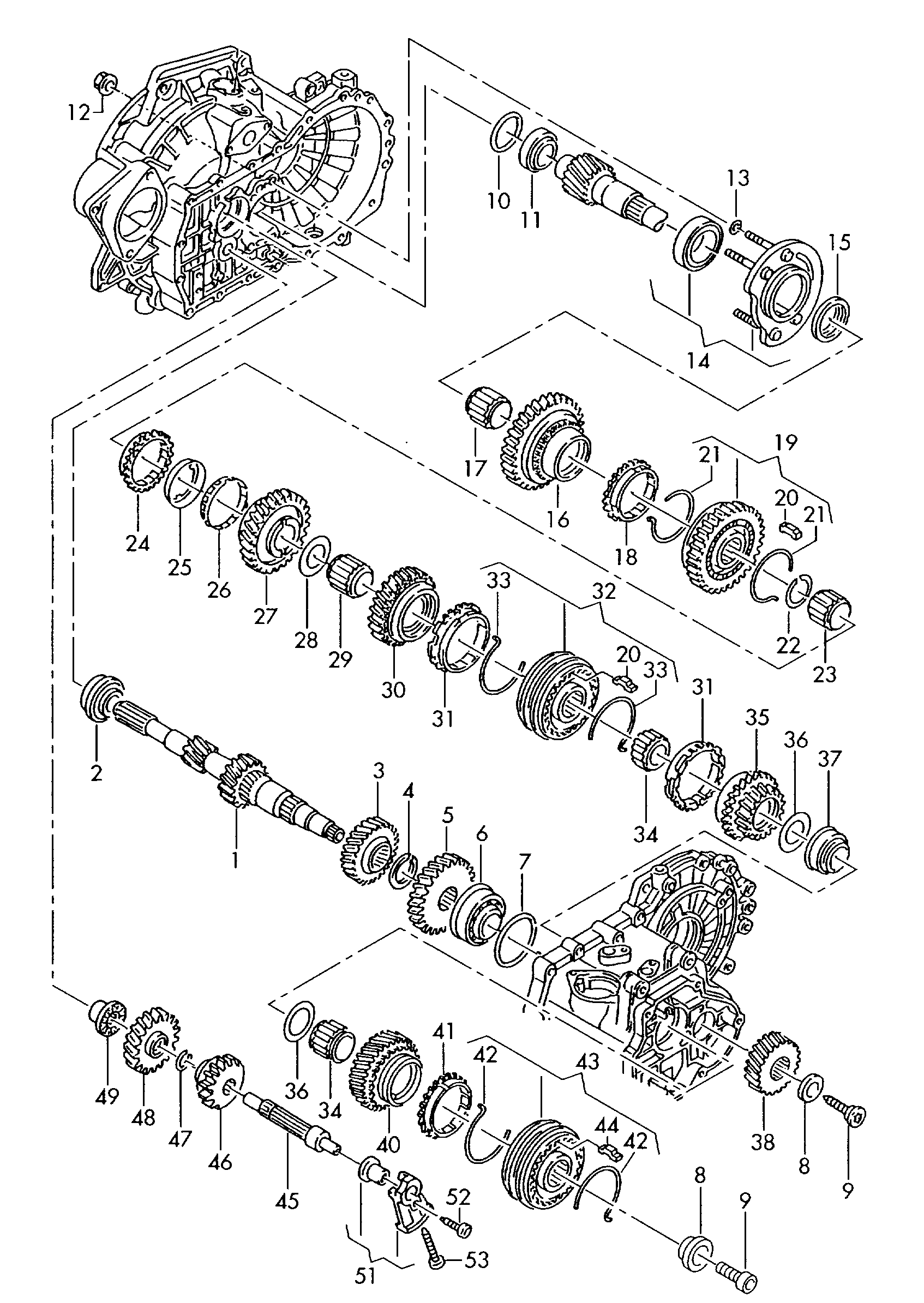

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	gears and shaftsfor 5 speed manual transmiss. 1.9 ltr. CTN,CYP 1.9 ltr.	—
-	synchronizing hub withlocking collar	02J 311 241 D
(1)	Input shaft also use: Z=9+1602 J 311 241 D CYP Z=9+1602 J 311 241 D	02J 311 103 A
(10)	adjusting washer 0,85 0,85	020 311 391 B
(10)	adjusting washer 1,05 1,05	020 311 391 F
(10)	adjusting washer 1 1	020 311 391 E
(10)	adjusting washer 0,95 0,95	020 311 391 D
(10)	adjusting washer 0,9 0,9	020 311 391 C
(10)	adjusting washer 0,8 0,8	020 311 391 A
(10)	adjusting washer 0,7 0,7	020 311 391 Q
(10)	adjusting washer 0,65 0,65	020 311 391 P
(10)	adjusting washer 1,4 1,4	020 311 391 N
(10)	adjusting washer 1,35 1,35	020 311 391 M
(10)	adjusting washer 1,3 1,3	020 311 391 L
(10)	adjusting washer 1,25 1,25	020 311 391 K
(10)	adjusting washer 1,2 1,2	020 311 391 J
(10)	adjusting washer 1,15 1,15	020 311 391 H
(10)	adjusting washer 1,1 1,1	020 311 391 G
(11)	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 F
(14)	mounting with taper rollerbearing	02D 311 206 A
(2)	Taper roller bearing 22 X 45 X 16,6 22 X 45 X 16,6	085 311 123 D
(2)	Taper roller bearing 22 X 45 X 16,6 22 X 45 X 16,6	085 311 123 K
(27)	change gear Z=33/16 CYP Z=33/16	02A 311 261 L
(29)	needle bearing - 30,6 X 40 X 25,8 30,6 X 40 X 25,8	02J 311 325
(29)	needle bearing - 30,6 X 40 X 25,8 30,6 X 40 X 25,8	02A 311 325 F
(3)	gear Z=31/23 CYP Z=31/23	02A 311 285 T
(30)	change gear Z=34/25 CTN Z=34/25	02A 311 129 AA
(35)	change gear Z=29/30 CYP Z=29/30	02A 311 145 L
(38)	gear Z=29/39 CYP Z=29/39	02A 311 361 AD
(40)	change gear Z=29/39 CYP Z=29/39	02A 311 158 AE
(41)	synchronizer ring	02A 311 295 C
(46)	sliding wheel for reverse gear	02A 311 531 Q
(5)	gear Z=29/30 CYP Z=29/30	02A 311 351 J
(53)	Hex socket head locating bolt M 8 X 35 M 8 X 35	N 904 646 01
(6)	Taper roller bearing 30 X 68,5 X 17,2 30 X 68,5 X 17,2	02A 311 123 D
(7)	1 set shims 0,65-1,27 0,65-1,27	02A 398 140
1	Input shaft Z=9+16 CYP Z=9+16	02B 311 103
1	Input shaft Z=9+17 CTN Z=9+17	02A 311 103 D
10	adjusting washer 0,75 0,75	020 311 391
11	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 N
11	Taper roller bearing 29 X 50,29 X 14,73 29 X 50,29 X 14,73	311 405 625 E
12	Hexagon collar nut M 8 M 8	N 106 092 03
12	Hexagon collar nut M 8 M 8	N 015 083 11
13	O-ring 7 X 2 7 X 2	N 903 649 01
14	mounting with taper rollerbearing	02D 311 206 B
14	mounting with taper rollerbearing	02A 311 206 H
15	thrust washer	WHT 007 055
15	thrust washer	02A 311 221
16	change gear Z=34/9 Z=34/9	02A 311 251
17	needle bearing - 38 X 43 X 25 38 X 43 X 25	02A 311 213 C
18	synchronizer ring	02A 311 247 C
19	synchronizing hub withlocking collar	02A 311 239 E
19	synchronizing hub	02D 311 239
2	Taper roller bearing 22 X 45 X 16,6 22 X 45 X 16,6	085 311 123 N
2	Taper roller bearing 22 X 45 X 16,6 22 X 45 X 16,6	085 311 123
20	locking piece	084 311 313
21	Spring	02A 311 311 A
22	Securing ring	091 311 321 A
23	needle bearing - K 35 X 40 X 23,8 K 35 X 40 X 23,8	02A 311 265 D
24	synchronizer ring	02A 311 269 F
25	outer ring	02A 311 279
26	synchronizer ringinner	02A 311 277
27	change gear Z=36/17 CTN Z=36/17	02A 311 261 G
28	thrust washer 30,8 X 52 X 3,5 30,8 X 52 X 3,5	02A 311 175 C
3	gear Z=34/25 CTN Z=34/25	02A 311 285 AJ
3	gear Z=34/25 CTN Z=34/25	02A 311 285 L
30	change gear Z=34/26 Z=34/26	02A 311 129 AB
30	change gear Z=31/23 CYP Z=31/23	02A 311 129 AH
31	synchronizer ring	02A 311 269 E
31	synchronizer ring	02A 311 269 A
32	synchronizing hub	02A 311 301 D
33	Spring	088 311 311 D
34	needle bearing - 29 X 40 X 24 29 X 40 X 24	02A 311 115 C
34	needle bearing - 29 X 40 X 24 29 X 40 X 24	02A 311 115 E
35	change gear Z=34/35 CTN Z=34/35	02A 311 145 M
36	thrust washer 9,2 X 49 X 2,5 9,2 X 49 X 2,5	02A 311 155 A
37	roller sleeve 29 X 46 X 18,1 29 X 46 X 18,1	02A 311 375
37	roller sleeve 29 X 46 X 18,1 29 X 46 X 18,1	02A 311 375 C
38	gear Z=34/45 CTN Z=34/45	02A 311 361 Q
4	Securing ring 30,8 X 2,5 30,8 X 2,5	02A 311 321
40	change gear Z=34/45 CTN Z=34/45	02A 311 158 E
41	synchronizer ring	02A 311 295 D
41	synchronizer ring	02A 311 295 A
42	Spring	02J 311 336 A
42	Spring	02A 311 311 C
43	synchronizing hub withlocking collar	02A 311 303 D
43	synchronizing hub withlocking collar	02J 311 241 C
44	locking piece	02J 311 313
44	locking piece	02A 311 313 A
45	reverse gear shaft	02A 311 515 K
46	sliding wheel for reverse gear Z=20 Z=20	02A 311 531 K
47	snap ring 20 20	N 909 824 01
47	snap ring 20 X 2 20 X 2	N 100 698 02
48	intermediate wheel Z=18 Z=18	02A 311 507 D
49	Needle bush 15 X 21 X 18 15 X 21 X 18	02A 311 523 B
5	gear Z=34/35 CTN Z=34/35	02A 311 351 C
51	Supportreverse gear shaft	02A 311 514 A
52	Torxsocket head bolt M 8 X 26 M 8 X 26	N 905 362 01
53	Oval hexagon socket head bolt M 8 X 32 M 8 X 32	N 904 625 01
53	Oval hexagon socket head bolt M 8 X 32 M 8 X 32	N 904 625 02
6	Taper roller bearing 30 X 68,5 X 17,2 30 X 68,5 X 17,2	02A 311 123 E
6	Taper roller bearing 30 X 68,5 X 17,2 30 X 68,5 X 17,2	02A 311 123
8	Belleville spring 24 X 52 X 2,65 24 X 52 X 2,65	02A 311 324 C
9	Hex socket head collared bolt M 10 X 1 X 43 M 10 X 1 X 43	02A 311 335 C
9	Hex socket head collared bolt M 10 X 1 X 35,5 M 10 X 1 X 35,5	02A 311 335 D
