Gears shaftsfor 5 speed manual transmiss cwm — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - For 4-speed manual gearbox. gears and shafts

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 73 Primary OEM: D 000 600 A2, 085 311 105 Q, 085 311 105 T

Gears shaftsfor 5 speed manual transmiss cwm for the Volkswagen Golf Mk3 (1996): factory exploded diagram 311030 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 71 OEM part numbers across 73 catalogued positions including D 000 600 A2, 085 311 105 Q and 085 311 105 T. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 71 OEM part numbers across 73 numbered positions.

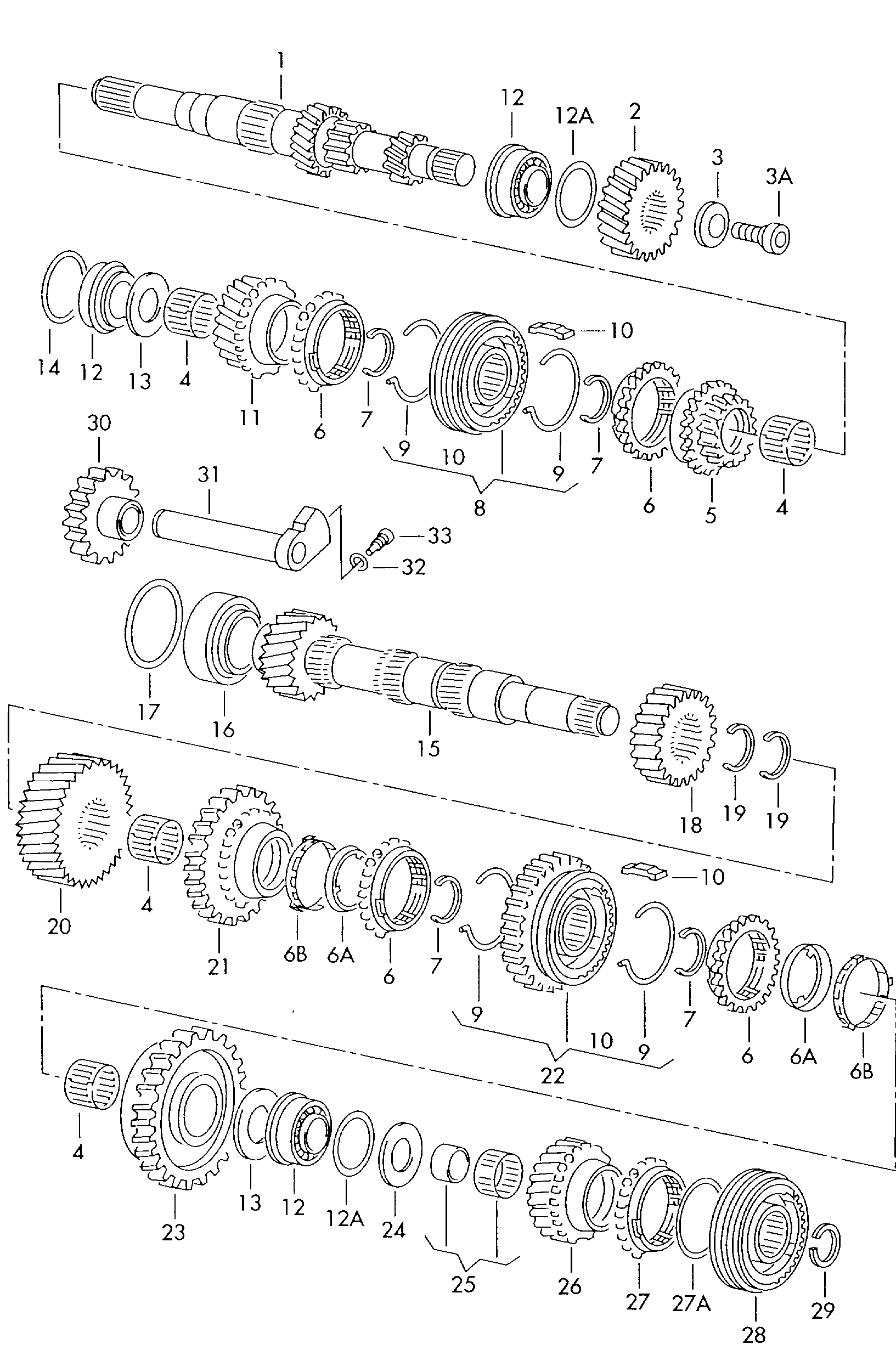

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
gears and shaftsfor 5 speed manual transmiss. CWM
 —
-
Locking fluid
 D 000 600 A2
(1)
Input shaft Z=11+22
Z=11+22
 085 311 105 Q
(1)
Input shaft Z=11+22
Z=11+22
 085 311 105 T
(11)
change gear Z=41/46
Z=41/46
 085 311 145 B
(14)
adjusting washer 1,1
1,1
 085 311 391 BD
(14)
adjusting washer 0,8
0,8
 085 311 391 AR
(14)
adjusting washer 0,825
0,825
 085 311 391 R
(14)
adjusting washer 0,85
0,85
 085 311 391 AS
(14)
adjusting washer 0,875
0,875
 085 311 391 S
(14)
adjusting washer 0,9
0,9
 085 311 391 AT
(14)
adjusting washer 0,925
0,925
 085 311 391 T
(14)
adjusting washer 0,95
0,95
 085 311 391 BA
(14)
adjusting washer 0,975
0,975
 085 311 391 AA
(14)
adjusting washer 1
1
 085 311 391 BB
(14)
adjusting washer 1,025
1,025
 085 311 391 AB
(14)
adjusting washer 1,05
1,05
 085 311 391 BC
(14)
adjusting washer 1,075
1,075
 085 311 391 AC
(14)
adjusting washer 1,125
1,125
 085 311 391 AD
(14)
adjusting washer 1,25
1,25
 085 311 391 BG
(14)
adjusting washer 1,225
1,225
 085 311 391 AF
(14)
adjusting washer 1,2
1,2
 085 311 391 BF
(14)
adjusting washer 1,175
1,175
 085 311 391 AE
(14)
adjusting washer 1,15
1,15
 085 311 391 BE
(14)
adjusting washer 0,675
0,675
 085 311 391 N
(14)
adjusting washer 0,7
0,7
 085 311 391 AP
(14)
adjusting washer 0,725
0,725
 085 311 391 P
(14)
adjusting washer 0,75
0,75
 085 311 391 AQ
(14)
adjusting washer 0,775
0,775
 085 311 391 Q
(17)
1 set shims 0,65-1,4
0,65-1,4
 020 398 391
(20)
gear 40/32
40/32
 085 311 285 H
(21)
change gear 43/22
43/22
 085 311 261 C
(22)
synchronizing hub withlocking collar
 085 311 239 B
(22)
synchronizing hub withlocking collar 44
44
 085 311 239 C
(23)
change gear 38/11
38/11
 085 311 251
(26)
change gear 37/50
37/50
 085 311 158 D
(27)
synchronizer ring
 085 311 295
(27)
synchronizer ring
 085 311 295 E
(28)
synchronizing hub withlocking collar
 085 311 303 A
(29)
1 set circlips 2-2,6
2-2,6
 085 398 008
(30)
reverse gear
 084 311 529
(30)
reverse gear Z=28
Z=28
 085 311 529
(5)
change gear Z=40/32
Z=40/32
 085 311 129 K
(6)
synchronizer ring
 085 311 247 B
(6)
synchronizer ring
 084 311 295 C
(6)
synchronizer ring
 084 311 295 B
(8)
synchronizing hub withlocking collar
 085 311 301
(9)
Spring
 084 311 311 C
(9)
Spring
 084 311 311 C
10
locking piece
 084 311 313
12
Taper roller bearing 22 X 45 X 16,6
22 X 45 X 16,6
 085 311 123 D
13
thrust washer 22 X 40 X 2,5
22 X 40 X 2,5
 085 311 221
14
adjusting washer 0,65
0,65
 085 311 391 AN
15
No longer available see illustration: 409-015
409-015
 —
16
Taper roller bearing 29 X 50,2 X 14,7
29 X 50,2 X 14,7
 311 405 625 F
18
gear 41/46
41/46
 085 311 351
19
Securing ring 29,8 X 2,5
29,8 X 2,5
 085 311 152 A
2
gear Z=37/50
Z=37/50
 085 311 361
24
thrust washer 22 X 40 X 3
22 X 40 X 3
 085 311 155
25
needle bearing -
 085 311 431 C
27A
Spring
 085 311 311
3
Belleville spring 15,5 X 34 X 2,1
15,5 X 34 X 2,1
 085 311 324 A
31
reverse gear idler spindle
 085 311 503 A
31
reverse gear idler spindle
 085 311 503 C
32
Spring washer 10 X 18
10 X 18
 N 012 242 2
32
Spring washer 10
10
 N 012 231 4
33
fillister hd. bolt M 10 X 16,5 X 34
M 10 X 16,5 X 34
 085 311 589 B
3A
Locating bolt M 8 X 15 X 19
M 8 X 15 X 19
 N 905 747 02
3A
Locating bolt M 8 X 15 X 19
M 8 X 15 X 19
 N 905 747 01
4
needle bearing - 27 X 32 X 24,8
27 X 32 X 24,8
 085 311 115
6A
outer ring
 085 311 279
6B
synchronizer ringinner
 085 311 277
7
Securing ring 24,9 X 2,5
24,9 X 2,5
 085 311 317

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1996
Generation region
RDW
Generation code
166
Factory group
02 Gearbox
Factory subgroup
311030

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gears shaftsfor 5 speed manual transmiss cwm diagram for the Mk3 Golf?
This diagram lists 71 OEM part numbers for the Mk3 Golf. The first three are D 000 600 A2, 085 311 105 Q and 085 311 105 T.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1996 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
