Which VW part numbers are on the mounting parts engine transmission 4 speed manual diagram for the Mk3 Golf?

This diagram lists 13 OEM part numbers for the Mk3 Golf. The first three are N 907 016 04, N 103 378 03 and N 019 524 1.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Mounting parts engine transmission 4 speed manual — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - 4 & 5-speed manual gearbox

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 22 Primary OEM: N 907 016 04, N 103 378 03, N 019 524 1

Mounting parts engine transmission 4 speed manual for the Volkswagen Golf Mk3 (1997): factory exploded diagram 300072 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 13 OEM part numbers across 22 catalogued positions including N 907 016 04, N 103 378 03 and N 019 524 1. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 13 OEM part numbers across 22 numbered positions.

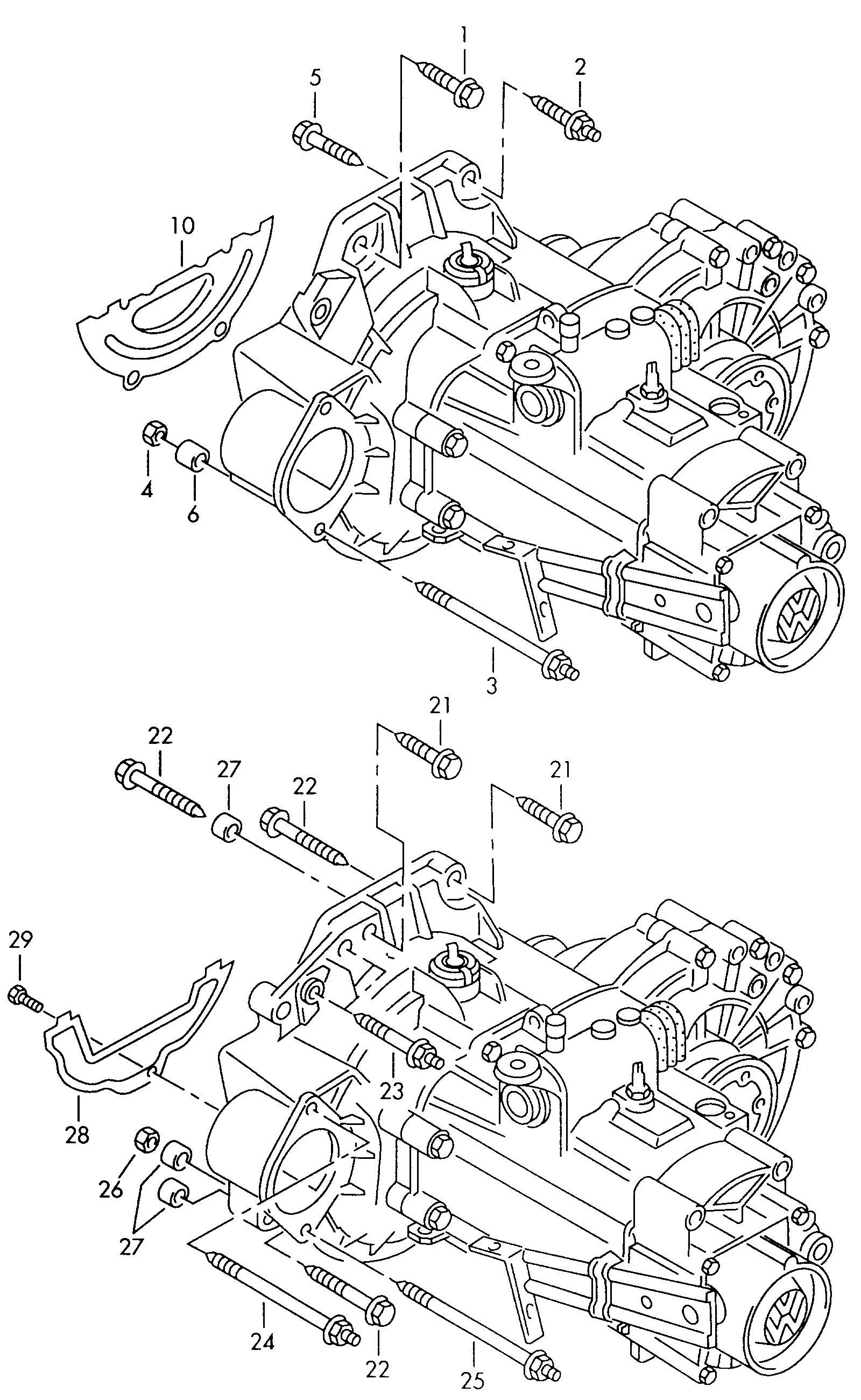

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mounting parts for engine andtransmission 4-speed manual transmission 5-speed manual transmission 4 cylinder CYY,DMM,CHD,CHB,CHE,CHC,DFQ,CRY,CQB,CYW,DFP,DFN,DFW,DGE,DFX,DFY 4 cylinder	—
	mounting parts for engine andtransmission 4-speed manual transmission 5-speed manual transmission 1.4/1.6 ltr. CZK,DGM,CZA,CJF,CYZ,DGL,DGG,DGH 1.4/1.6 ltr.	—
(2)	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
1	Hex collared bolt M 12 X 55 M 12 X 55	N 103 378 03
1	Hexagon bolt M 12 X 55 M 12 X 55	N 019 524 1
10	Cover plate see illustration: 103-020 103-020	—
2	double stud with hexagon drive M 12 X 55/M 8 X 16 M 12 X 55/M 8 X 16	N 909 678 01
2	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
21	Hexagon bolt M 12 X 55 M 12 X 55	N 019 524 1
21	Hex collared bolt M 12 X 55 M 12 X 55	N 103 378 03
22	Hexagon bolt M 12 X 64 X 48 M 12 X 64 X 48	N 019 528 1
23	double stud with hexagon drive see illustration: 911-010 911-010	—
24	double stud with hexagon drive see illustration: 911-010 911-010	—
25	double stud with hexagon drive see illustration: 911-010 911-010	—
26	Hexagon nut see illustration: 911-010 911-010	—
27	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
28	Cover plate	02K 301 159 B
29	bolt, hex. hd. with shoulder,self-locking M 6 X 10 M 6 X 10	N 014 340 1
3	double stud with hexagon drive see illustration: 911-010 911-010	—
4	double stud with hexagon drive see illustration: 911-010 911-010	—
5	Hexagon bolt M 12 X 62 X 48 M 12 X 62 X 48	N 902 992 01
6	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 02 Gearbox
Factory subgroup: 300072
