Mounting parts engine transmission 5 speed manual — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - 4 & 5-speed manual gearbox

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 22 Primary OEM: N 900 086 02, 191 971 248, N 907 016 04

Mounting parts engine transmission 5 speed manual for the Volkswagen Golf Mk3 (1997): factory exploded diagram 300074 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 17 OEM part numbers across 22 catalogued positions including N 900 086 02, 191 971 248 and N 907 016 04. Parts on this plate carry the engine code ASD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 17 OEM part numbers across 22 numbered positions.

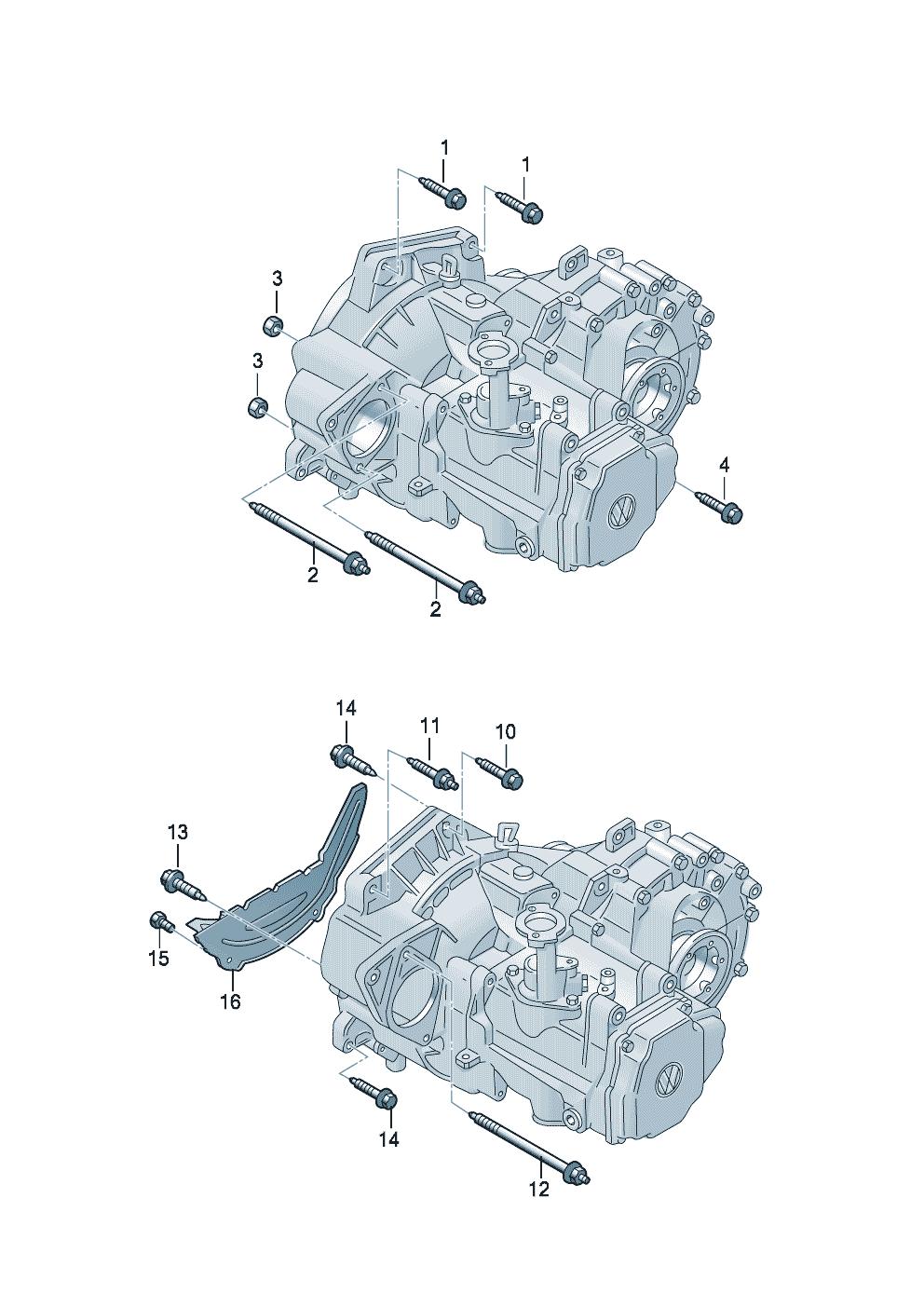

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mounting parts for engine andtransmission 5-speed manual transmission 4 cylinder DPA,ASD,CTN,CYP 4 cylinder ASD	—
	mounting parts for engine andtransmission 5-speed manual transmission 6 cylinder CCM,CDM 6 cylinder	—
-	Washer 12 X 25 X 2,8 12 X 25 X 2,8	N 900 086 02
-	Washer 12 X 25 X 2,8 12 X 25 X 2,8	N 900 086 02
(1)	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
(1)	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
(16)	Supports for engine/gearbox see illustration: 199-020 199-020	—
1	Hexagon bolt M 12 X 55 M 12 X 55	N 019 524 1
1	Hex collared bolt M 12 X 55 M 12 X 55	N 103 378 03
10	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
10	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
11	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
11	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
12	Hexagon bolt see illustration: 911-010 911-010	—
13	Hexagon bolt also use: M 12 X 58 N 900 086 02 M 12 X 58 N 900 086 02	N 040 338 1
14	Hexagon bolt M 12 X 46 M 12 X 46	N 101 633 01
15	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
16	cover plate	02A 301 157 C
2	Hexagon bolt see illustration: 911-010 911-010	—
3	Hexagon collar nut M 10 M 10	N 102 613 02
3	Hexagon nut M 10 M 10	N 015 100 2
4	Hexagon bolt also use: M 12 X 58 N 900 086 02 M 12 X 58 N 900 086 02	N 040 338 1
