Mounting parts engine transmissionfor 4 speed automatic — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - 4 & 5-speed manual gearbox

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 26 Primary OEM: N 103 378 03, N 019 524 1, N 904 955 02

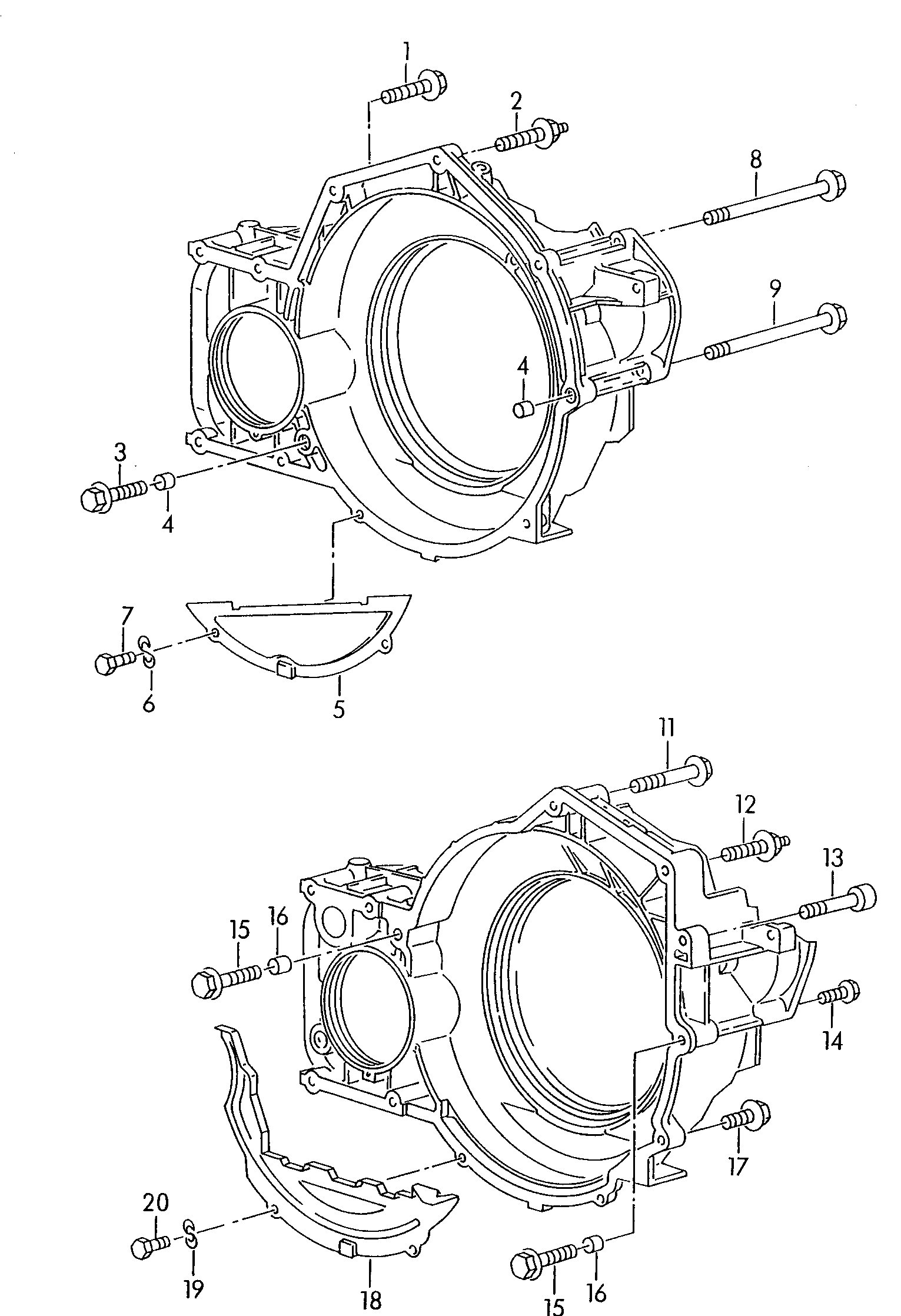

Mounting parts engine transmissionfor 4 speed automatic for the Volkswagen Golf Mk3 (1997): factory exploded diagram 300080 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 20 OEM part numbers across 26 catalogued positions including N 103 378 03, N 019 524 1 and N 904 955 02. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 20 OEM part numbers across 26 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fastenersfor 4-speed automatic gearbox CKX,CKZ,CLK,DAB,DKR,DKSDLV,DNR,DLX,DLZ,DNS,DMB	—
	Fastenersfor 4-speed automatic gearbox CLB,DLL,DMA,DNT	—
(11)	Hex collared bolt only for: M 12 X 5532 MM M 12 X 5532 MM	N 103 378 03
1	Hexagon bolt M 12 X 55 M 12 X 55	N 019 524 1
1	Hex collared bolt M 12 X 55 M 12 X 55	N 103 378 03
11	Hex collared bolt M 12 X 80 M 12 X 80	N 904 955 02
11	Hex collared bolt only for: M 12 X 8058 MM M 12 X 8058 MM	N 904 955 03
12	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
12	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
13	Socket head bolt withinner multipoint head see illustration: 199-020 199-020	—
14	Hex collared bolt see illustration: 911-010 911-010	—
15	Hexagon bolt M 12 X 58 M 12 X 58	N 040 338 1
16	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
17	Hexagon bolt M 12 X 46 M 12 X 46	N 101 633 01
18	cover plate	096 409 157 B
19	Spring washer 7 7	N 012 234 5
2	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	N 907 016 04
2	double stud with hexagon drive M 12 X 55/M 8 X 10 M 12 X 55/M 8 X 10	191 971 248
20	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
3	Hexagon bolt M 12 X 58 M 12 X 58	N 040 338 1
4	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
5	cover plate	095 409 157 B
6	Spring washer 7 7	N 012 234 5
7	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
8	double stud with hexagon drive see illustration: 911-010 911-010	—
9	double stud with hexagon drive	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 02 Gearbox
Factory subgroup: 300080
