Mounting parts engine transmissionfor 4 speed manual — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - 4-speed manual transmission. 5-speed manual transmission

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 10 Primary OEM: N 019 529 1, 191 971 248 A, N 902 992 01

Mounting parts engine transmissionfor 4 speed manual for the Volkswagen Golf Mk3 (1996): factory exploded diagram 300070 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 8 OEM part numbers across 10 catalogued positions including N 019 529 1, 191 971 248 A and N 902 992 01. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 8 OEM part numbers across 10 numbered positions.

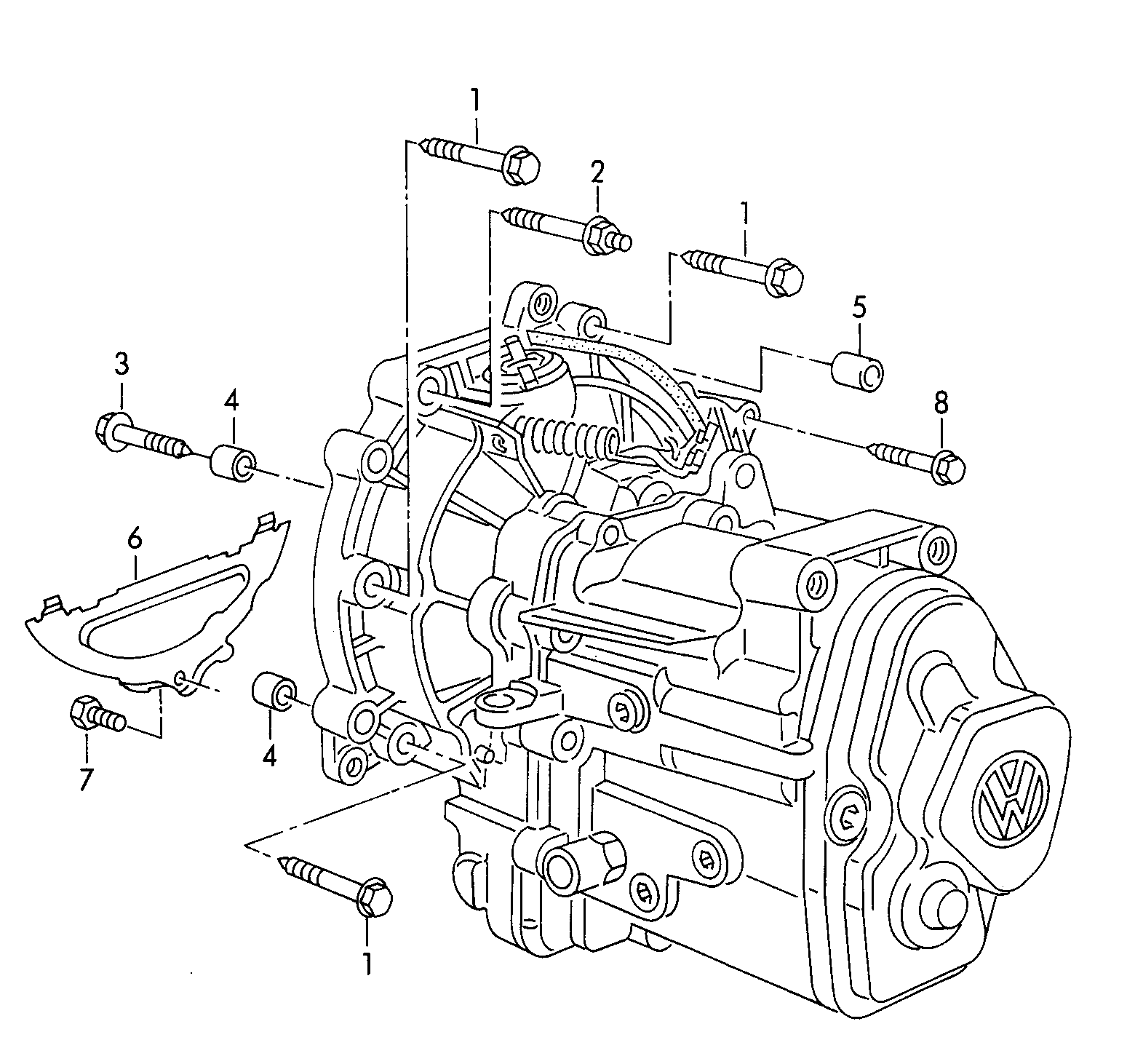

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mounting parts for engine andtransmissionfor 4-speed manual gearboxfor 5 speed manual transmiss. 4 cylinder CED,CWM 4 cylinder	—
1	Hexagon bolt M 12 X 70 X 48 M 12 X 70 X 48	N 019 529 1
2	double stud with hexagon drive M 12 X 70/M 8 X 10 M 12 X 70/M 8 X 10	191 971 248 A
3	Hexagon bolt M 12 X 62 X 48 M 12 X 62 X 48	N 902 992 01
4	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
5	Bearing bush 12,1 X 14,12 X 14 12,1 X 14,12 X 14	014 301 155
6	cover plate	085 301 159 A
6	cover plate	085 301 159 B
7	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
8	Hexagon bolt see illustration: 911-010 911-010	—
