Oil pumpshift rodfor 4 speed automatic gearbox ckx ckz clk — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - Gear housing. for 4-speed automatic gearbox

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 39 Primary OEM: 01M 321 241, 01M 321 241 B, 095 321 262

Oil pumpshift rodfor 4 speed automatic gearbox ckx ckz clk for the Volkswagen Golf Mk3 (1995): factory exploded diagram 321058 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 36 OEM part numbers across 39 catalogued positions including 01M 321 241, 01M 321 241 B and 095 321 262. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 36 OEM part numbers across 39 numbered positions.

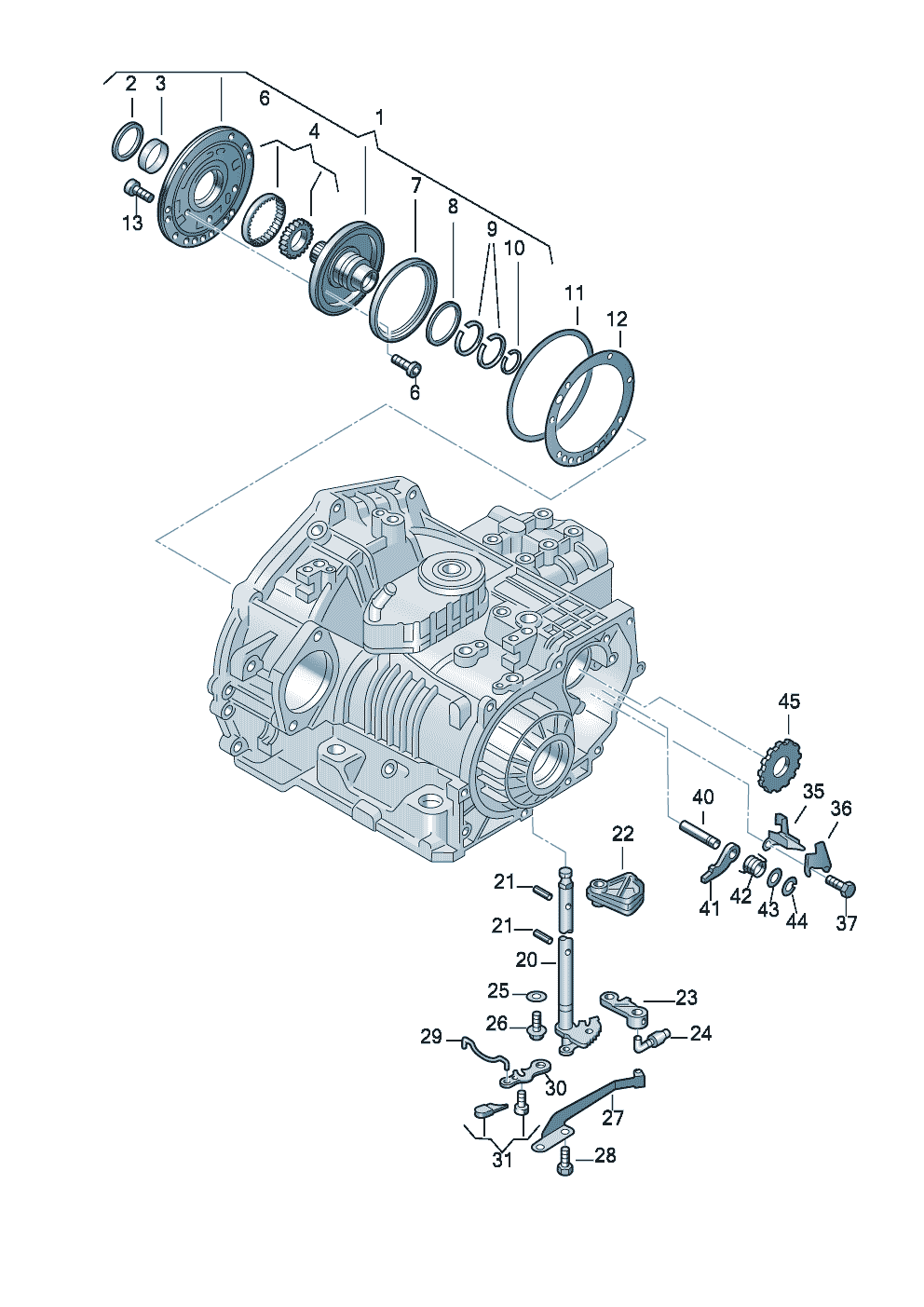

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
oil pumpshift rodfor 4-speed automatic gearbox CKX,CKZ,CLK,CLB
 —
1
oil pump
 01M 321 241
1
oil pump
 01M 321 241 B
10
piston ring
 095 321 262
11
O-ring 188 X 3
188 X 3
 095 321 386
12
Seal
 01M 321 385
13
Socket head bolt with innermultipoint head M 6 X 27
M 6 X 27
 N 905 829 02
2
radial shaft seal 51 X 65 X 7
51 X 65 X 7
 095 321 243
2
radial shaft seal 51 X 65 X 7
51 X 65 X 7
 095 321 243 A
20
shift rod
 096 321 173 C
21
Spring pin 5,15 X 24
5,15 X 24
 N 905 487 01
22
shift segment
 096 321 190
23
engaging lever
 095 321 189 A
24
thrust piece
 098 321 467
25
Washer 6,5 X 21 X 2
6,5 X 21 X 2
 N 011 550 1
26
fillister head bolt withallen key head M 6 X 15
M 6 X 15
 N 100 292 01
27
detent spring
 096 321 221
28
Locating bolt M 6 X 6 X 15
M 6 X 6 X 15
 N 904 800 01
29
operating rod
 095 325 279 C
3
Protective cap No replacement part
 —
30
lever
 095 321 194 A
31
Retaining clip with screw
 095 325 299
35
Guide plate
 095 321 482 A
36
Support plate
 095 321 485 B
37
Hex collared bolt M 6 X 20
M 6 X 20
 N 902 803 02
37
hexagon head bolt (combi) M 6 X 20
M 6 X 20
 N 905 330 02
4
gear set
 01M 321 263
40
pin - engagement lever
 095 321 123 B
41
lever for parking lock
 095 321 119 A
42
tension spring
 095 321 121 D
42
tension spring
 01M 321 121
43
thrust washer
 095 323 313
44
Retaining washer 10
10
 N 012 441 2
45
wheel-parking lock see illustration: 323-070
323-070
 —
6
Hex socket countersunk bolt M 6 X 14
M 6 X 14
 N 101 193 01
7
piston
 095 321 531 B
7
piston
 095 321 531 C
8
thrust washer
 095 321 285
9
piston ring
 095 321 261 A
