Servo motor coupling ecomatic — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - Coupling. Servo motor

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 18 Primary OEM: 1H0 142 303 B, 1H0 142 059, 1H0 142 059 A

Servo motor coupling ecomatic for the Volkswagen Golf Mk3 (1996): factory exploded diagram 142010 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 14 OEM part numbers across 18 catalogued positions including 1H0 142 303 B, 1H0 142 059 and 1H0 142 059 A. Parts on this plate carry the engine code 1Y. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 18 numbered positions.

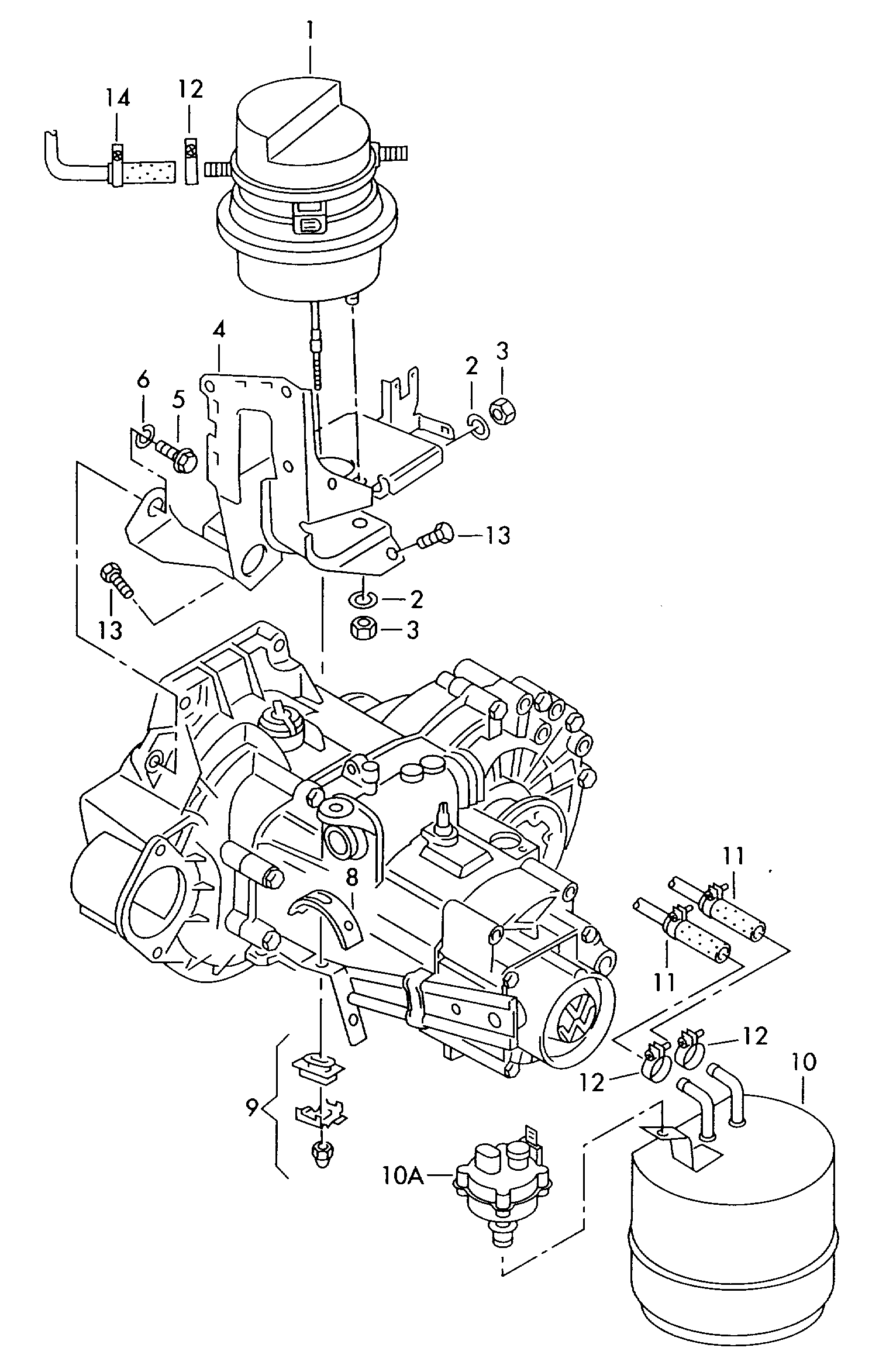

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Servo motor Coupling ecomatic:1 Y 1Y	—
(4)	Console 1Y	1H0 142 303 B
1	Servo motor 1Y	1H0 142 059
1	Servo motor 1Y	1H0 142 059 A
10	vacuum reservoir 1Y	1H0 142 201
11	Vacuum pipe withnon-return valve see illustration: 611-070 611-070 1Y	—
11	Vacuum pipe withnon-return valve see illustration: 611-70 611-70 1Y	—
12	Clamp 5 X 8 5 X 8 1Y	N 900 455 01
13	Hex collared bolt M 8 X 18 M 8 X 18 1Y	N 019 538 2
14	Vacuum pipe see illustration: 611-070 611-070 1Y	—
2	spring ring 8 8 1Y	N 012 038 7
3	Hexagon nut M 8 M 8 1Y	N 011 008 18
3	Hexagon nut M 8.0 M 8.0 1Y	N 011 008 30
5	Hex collared bolt M 8 X 20 M 8 X 20 1Y	N 019 533 6
5	Hex collared bolt M 8 X 20 M 8 X 20 1Y	N 101 559 01
5	Hex collared bolt M 8 X 20 M 8 X 20 1Y	N 019 533 7
8	arm 1Y	1H0 142 317
9	1 set fixing parts forclutch cable 1Y	1H0 198 142
