Shift rod selector forkfor 5 speed manual transmiss ccm dpa — Mk3 Golf Gearbox (1997)
Factory title: Volkswagen Golf (1997 - 1998) - For 4-speed manual gearbox. for 5 speed manual transmiss.. gears and shafts

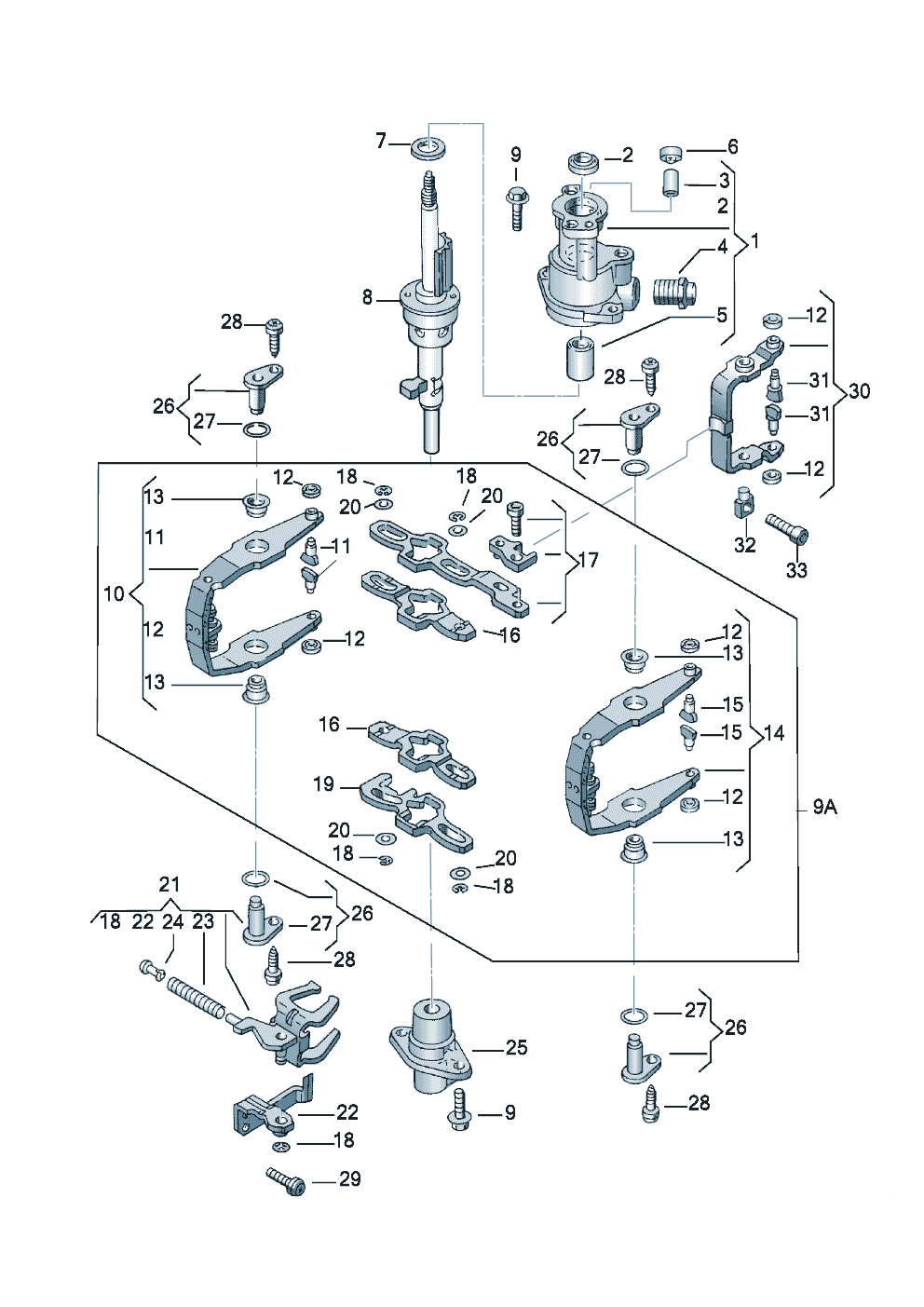

Shift rod selector forkfor 5 speed manual transmiss ccm dpa for the Volkswagen Golf Mk3 (1997): factory exploded diagram 311090 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 46 OEM part numbers across 52 catalogued positions including 02J 301 231, 02A 301 231 H and 02A 311 549 D. Parts on this plate carry the engine code ASD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 46 OEM part numbers across 52 numbered positions.
| № | Description | Part number |
|---|---|---|
| shift rod Selector forkfor 5 speed manual transmiss. CCM,DPA,ASD,CTN,CDM,CYP ASD | — | |
| (1) | Selector housing G 01 09 7>> | 02J 301 231 |
| (1) | Selector housing G >> 31 08 7 | 02A 301 231 H |
| (10) | Selector fork | 02A 311 549 D |
| (13) | angular ball bearing 11,8 X 8,5 X 21 11,8 X 8,5 X 21 | 02A 311 590 C |
| (16) | Shift rail | 02A 311 560 B |
| (25) | End cap | 02A 301 252 D |
| (4) | locking screw G 01 09 7>> M 20 X 1,5 M 20 X 1,5 | 020 301 241 H |
| (8) | shift rod G >> 31 08 7 | 02A 301 233 F |
| (8) | shift rod G 01 09 7>> | 02J 301 233 |
| (8) | shift rod G 01 09 7>> | 02J 301 233 E |
| 1 | Selector housing G >> 03 09 5 | 02A 301 231 D |
| 10 | Discont. / replace: 02 A 311 490 K 02 A 311 490 K | — |
| 11 | shift segment | 02J 311 585 A |
| 11 | shift segment | 02A 311 585 H |
| 12 | Clamping washer 7 X 15 7 X 15 | N 903 975 01 |
| 14 | Selector fork | 02A 311 549 E |
| 14 | Discont. / replace: 02 A 311 490 K 02 A 311 490 K | — |
| 15 | shift segment | 02A 311 585 J |
| 16 | Discont. / replace: 02 A 311 490 K 02 A 311 490 K | — |
| 17 | Shift rail | 02A 311 566 D |
| 17 | Discont. / replace: 02 A 311 490 K 02 A 311 490 K | — |
| 18 | Retaining washer 7 7 | N 012 437 3 |
| 19 | Discont. / replace: 02 A 311 490 K 02 A 311 490 K | — |
| 19 | Shift rail | 02A 311 577 B |
| 2 | Shaft oil seal 24,3 X 6,4 24,3 X 6,4 | 02A 301 227 M |
| 2 | Shaft oil seal 24,3 X 6,5 24,3 X 6,5 | 02A 301 227 C |
| 20 | Washer 9,2 X 13,5 X 1 9,2 X 13,5 X 1 | 02A 311 616 |
| 21 | Selector fork | 02A 311 521 E |
| 22 | Support Selector fork | 02A 301 445 |
| 23 | Pressure spring | 02A 311 548 A |
| 24 | Glide piece | 02A 311 614 |
| 26 | Mounting pin | 02A 301 427 A |
| 27 | O-ring 14 X 2 14 X 2 | N 903 620 01 |
| 28 | Socket head bolt M 8 X 22 M 8 X 22 | N 903 663 01 |
| 28 | Cylinder screw,self-locking M 8 X 22 M 8 X 22 | N 903 663 03 |
| 29 | Torxsocket head bolt M 8 X 26 M 8 X 26 | N 905 362 01 |
| 29 | Hex socket head locating bolt M 8 X 35 X 24 M 8 X 35 X 24 | N 904 646 01 |
| 3 | Sleeve 12 X 30 12 X 30 | 014 301 473 |
| 3 | Sleeve 12 X 30 12 X 30 | 012 301 474 A |
| 30 | Selector fork | 02A 311 562 A |
| 31 | shift segment | 02A 311 585 K |
| 32 | bearing for selector fork | 02A 301 443 |
| 33 | Socket head bolt withhexagon socket head M 8 X 35 M 8 X 35 | N 014 713 5 |
| 4 | locking screw G >> 31 08 7 M 22 X 1,5 M 22 X 1,5 | 02A 301 241 H |
| 5 | Ball sleeve 15,2 X 23 X 23 15,2 X 23 X 23 | 02A 311 648 C |
| 6 | Cap for venting the gearbox | 014 301 485 |
| 7 | stop ring 15,8 X 28 X 1 15,8 X 28 X 1 | 02A 301 320 B |
| 9 | Hex collared bolt M 8 X 25 M 8 X 25 | N 019 502 2 |
| 9 | Hex collared bolt M 8 X 25 M 8 X 25 | N 019 502 4 |
| 9A | Selector fork group with gear-shift rail | 02A 311 490 K |
| 9A | Selector fork group with gear-shift rail | 02A 311 490 J |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- ASD
- Factory group
- 02 Gearbox
- Factory subgroup
- 311090
