Shift rodselector shaft selector forkfor 4 speed manual — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - For 4-speed manual gearbox. gears and shafts

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 24 Primary OEM: 084 311 543 E, N 012 242 2, N 012 231 4

Shift rodselector shaft selector forkfor 4 speed manual for the Volkswagen Golf Mk3 (1996): factory exploded diagram 311062 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 23 OEM part numbers across 24 catalogued positions including 084 311 543 E, N 012 242 2 and N 012 231 4. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 23 OEM part numbers across 24 numbered positions.

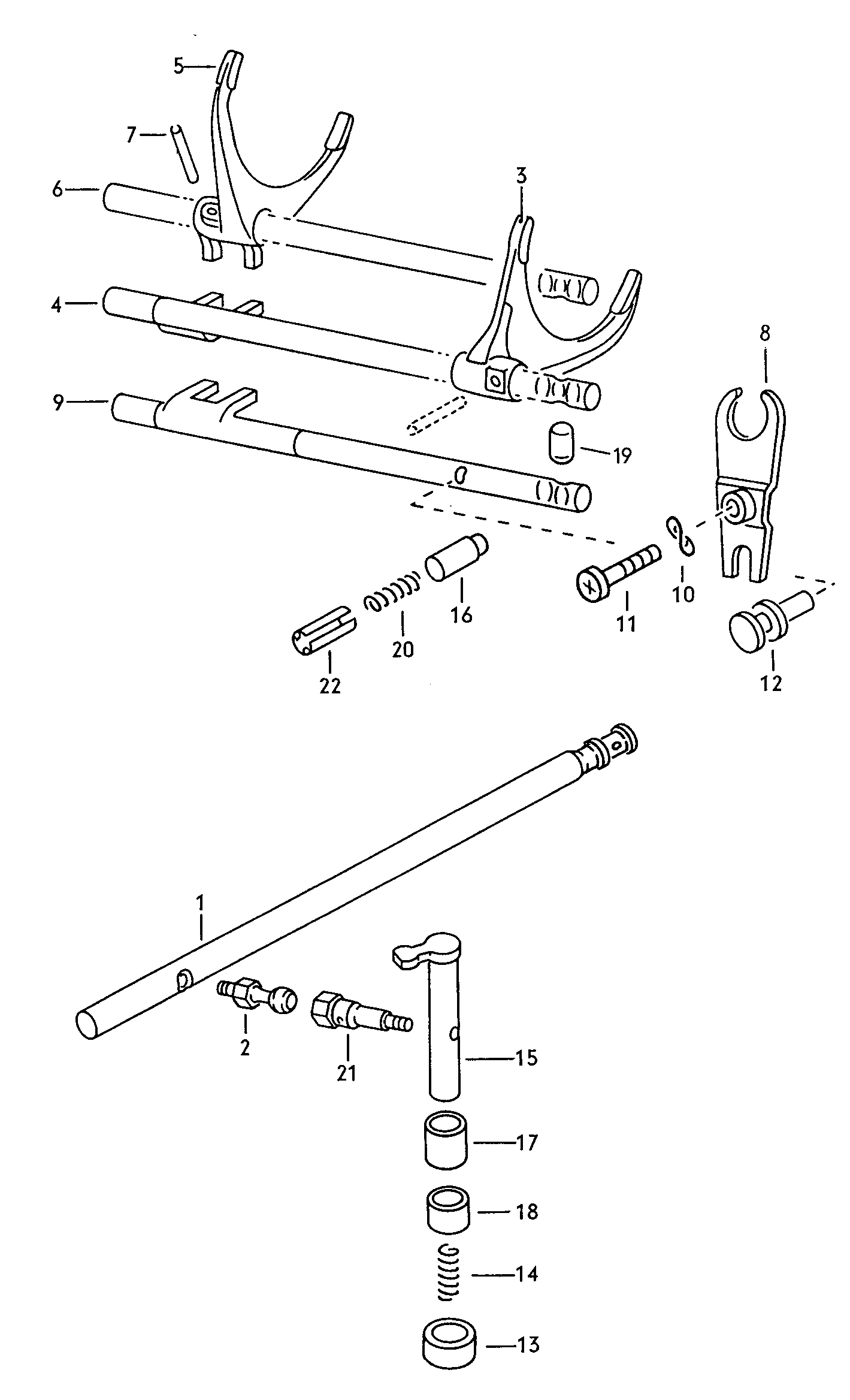

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	shift rodselector shaft Selector forkfor 4-speed manual gearbox CED	—
1	shift rod	084 311 543 E
10	Spring washer B 10 X 18 B 10 X 18	N 012 242 2
10	Spring washer 10 10	N 012 231 4
11	Socket head bolt M 10 X 32 M 10 X 32	084 311 589 B
12	guide pin	084 311 593
13	End cap	084 311 595 E
14	Pressure spring	084 311 597 B
15	Deviating shaft	084 311 617 H
16	bush	084 311 621 D
17	bush for relay shaft	084 311 622 B
18	bush for relay shaft	084 311 624
19	locking piece	084 311 629
2	shift finger	084 311 545 A
20	Pressure spring	014 311 641 A
21	relay lever	084 311 661 G
22	bush	084 311 717
3	Selector fork	084 311 551 A
4	selector shaft	084 311 557 B
5	Selector fork	084 311 561 E
6	selector shaft	084 311 567 B
7	Spring pin 5 X 22 5 X 22	N 043 283 1
8	relay lever	084 311 583 A
9	selector shaft	084 311 577 B
