Shift rodselector shaft selector forkfor 5 speed manual — Mk3 Golf Gearbox (1996)

Factory title: Volkswagen Golf (1996) - For 4-speed manual gearbox. gears and shafts

Generation: Mk3 1996 (RDW) Group: Gearbox Rebuild step 9 Parts: 33 Primary OEM: 085 301 241 A, 085 301 249 K, 085 311 535 K

Shift rodselector shaft selector forkfor 5 speed manual for the Volkswagen Golf Mk3 (1996): factory exploded diagram 311082 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 32 OEM part numbers across 33 catalogued positions including 085 301 241 A, 085 301 249 K and 085 311 535 K. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 32 OEM part numbers across 33 numbered positions.

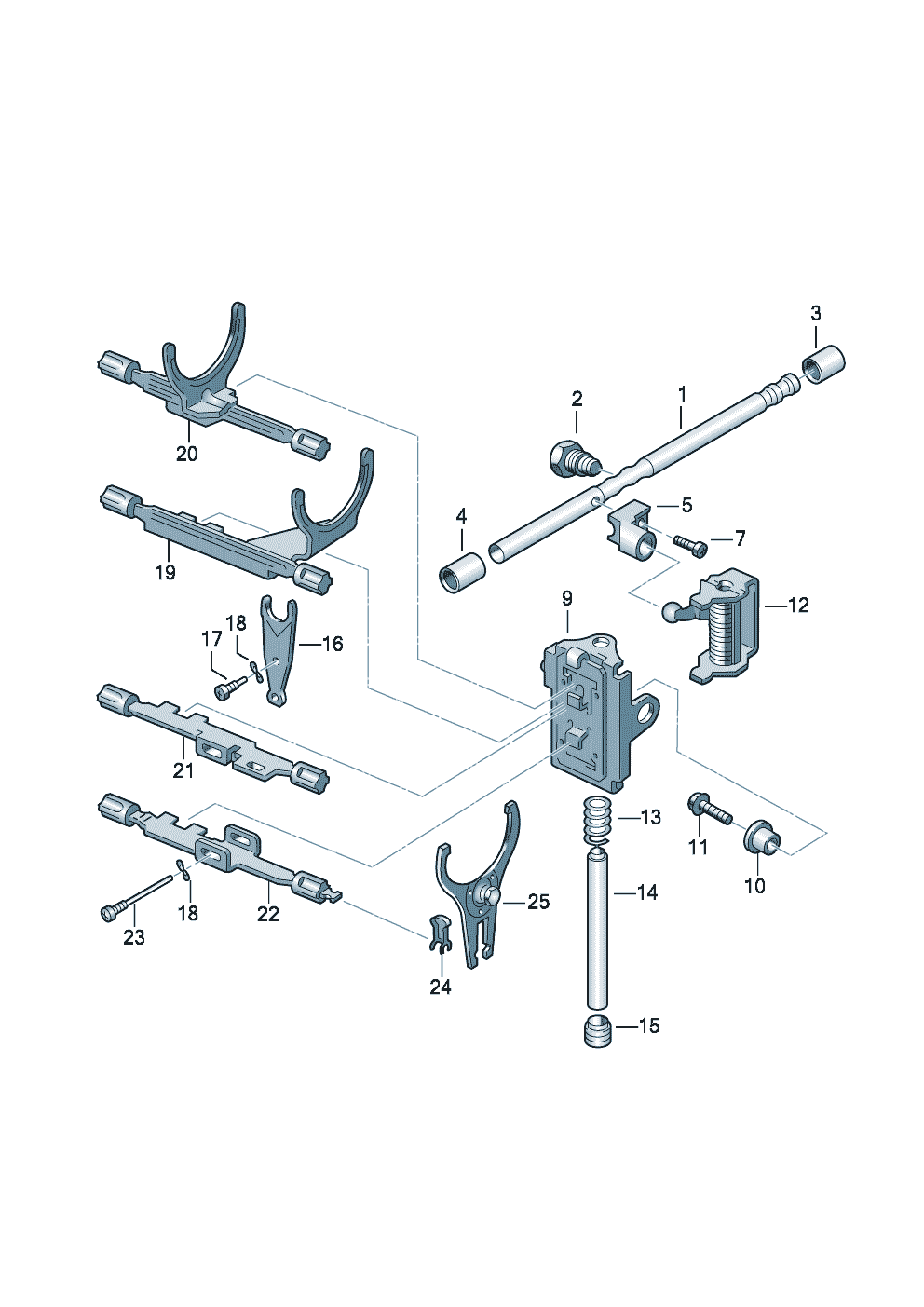

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
shift rodselector shaft Selector forkfor 5 speed manual transmiss. CWM
 —
-
locking screw M 20 X 1,5
M 20 X 1,5
 085 301 241 A
(1)
shift rod
 085 301 249 K
(12)
shift finger
 085 311 535 K
(20)
selector shaft
 085 311 559 D
(9)
Console
 085 311 987 A
1
shift rod also use: 085 301 241 A
085 301 241 A
 085 301 249 Q
10
Centre sleeve
 085 311 992
11
hexagon head bolt (combi) M 8 X 32
M 8 X 32
 N 101 069 01
12
shift finger
 085 311 535 J
13
Pressure spring
 085 311 644
14
switch shaft
 085 311 587
15
Bungs
 085 301 115
16
relay lever
 085 311 583 A
17
fillister hd. bolt M 10 X 16,5 X 34
M 10 X 16,5 X 34
 085 311 589 B
18
Spring washer B 10 X 18
B 10 X 18
 N 012 242 2
18
Spring washer 10
10
 N 012 231 4
19
selector shaft
 085 311 549 A
2
locking screw M 20 X 1,5
M 20 X 1,5
 020 301 241 J
20
selector shaft
 085 311 559 K
21
selector shaft
 085 311 575
21
selector shaft
 085 311 575 C
22
selector shaft
 085 311 566 A
23
fillister hd. bolt M 10 X 51,5 X 69
M 10 X 51,5 X 69
 085 311 589 C
24
securing clip
 085 311 582
25
Selector fork
 085 311 562 B
3
Ball sleeve
 085 311 665
3
Ball sleeve
 085 311 665 A
4
Ball sleeve
 085 311 666 A
4
Ball sleeve
 085 311 666 B
5
relay lever
 085 301 269 E
7
Socket head bolt M 8 X 1 X 20
M 8 X 1 X 20
 N 014 727 1
9
Console
 085 311 987 F

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1996
Generation region
RDW
Generation code
166
Factory group
02 Gearbox
Factory subgroup
311082

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the shift rodselector shaft selector forkfor 5 speed manual diagram for the Mk3 Golf?
This diagram lists 32 OEM part numbers for the Mk3 Golf. The first three are 085 301 241 A, 085 301 249 K and 085 311 535 K.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1996 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
