Valve bodyoil strainerfor 4 speed automatic gearbox — Mk3 Golf Gearbox (1995)

Factory title: Volkswagen Golf (1995) - Oil strainer. for 4-speed automatic gearbox. valve body

Generation: Mk3 1995 (RDW) Group: Gearbox Rebuild step 9 Parts: 27 Primary OEM: 01M 325 429, 095 325 039 JX, 01M 325 039 X

Valve bodyoil strainerfor 4 speed automatic gearbox for the Volkswagen Golf Mk3 (1995): factory exploded diagram 325050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 25 OEM part numbers across 27 catalogued positions including 01M 325 429, 095 325 039 JX and 01M 325 039 X. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 25 OEM part numbers across 27 numbered positions.

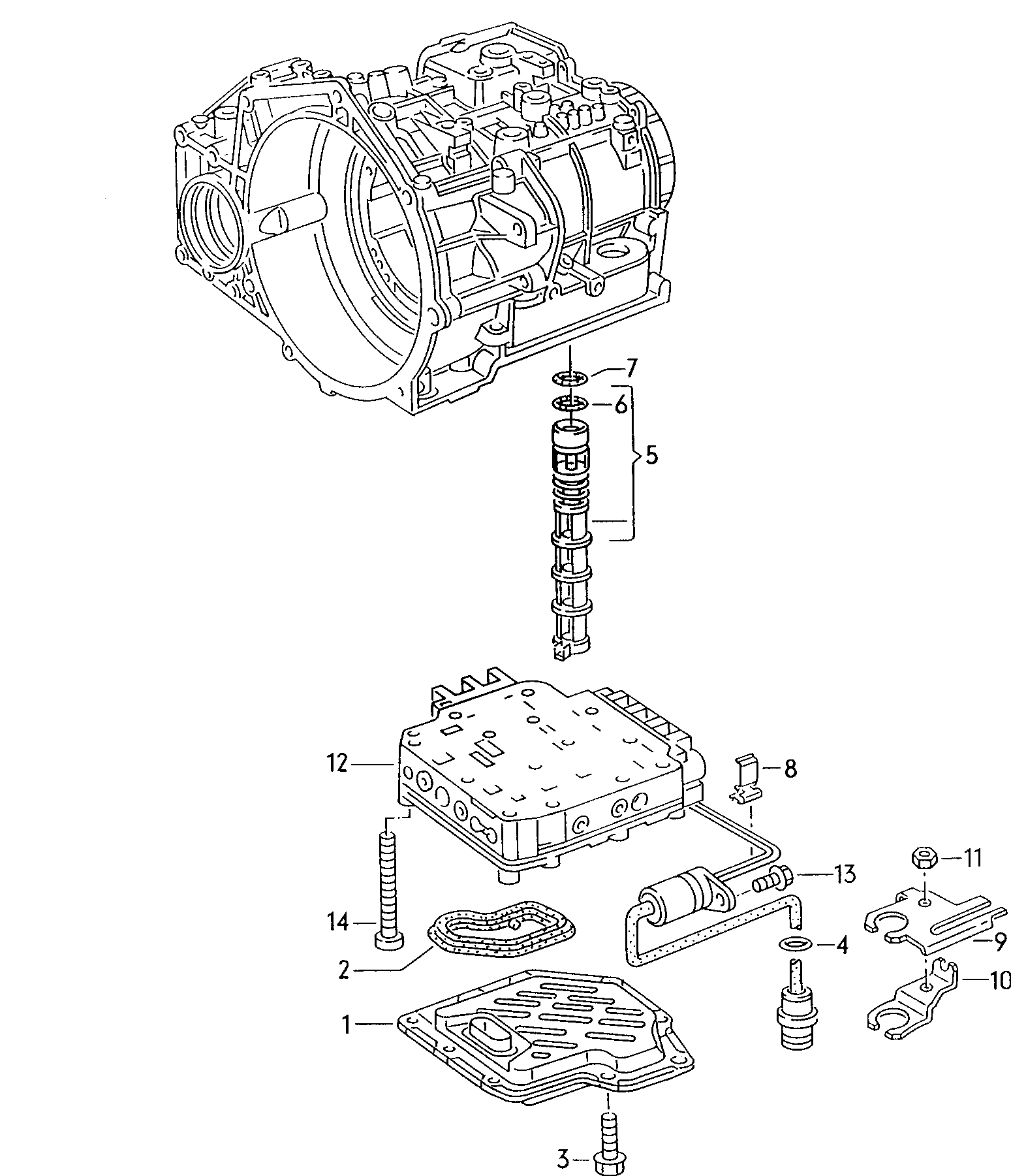

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
valve bodyoil strainerfor 4-speed automatic gearbox CFH,CFK,CFF,CRR,CNK,CSK,CNP,CKX,CKZ,CLK,CLB
 —
-
Conductor foil see illustration: 927-050
927-050
 —
(1)
oil strainer CKX,CKZ,CLK,CLB
 01M 325 429
(12)
valve body CFH,CFK,CFF,CRR,CNK,CSK,CNP
 095 325 039 JX
(12)
valve body CKX,CKZ,CLK,CLB
 01M 325 039 X
(12)
valve body CKX,CKZ,CLK,CLB
 01M 325 039
(12)
valve body CFH,CFK,CFF,CRR,CNK,CSK,CNP
 095 325 039 J
(12)
valve body CKX,CKZ,CLK,CLB
 01M 325 039 DX
(12)
valve body CKX,CKZ,CLK,CLB
 01M 325 039 D
(2)
Seal CKX,CKZ,CLK,CLB
 01M 325 443
(9)
Bracket
 095 321 424 E
1
oil strainer CFH,CFK,CFF,CRR,CNK,CSK,CNP
 095 325 429 D
10
Bracket
 095 321 425 A
11
Hexagon nut M 8.0
M 8.0
 N 011 008 30
11
Hexagon nut M 8
M 8
 N 011 008 18
13
Hexagon bolt M 6 X 15
M 6 X 15
 N 904 407 01
14
Round-head screw M 6 X 55 CFH,CFK,CFF,CRR,CNK,CSK,CNPCKX,CKZ,CLK,CLB
M 6 X 55
 N 101 943 02
2
Seal CFH,CFK,CFF,CRR,CNK,CSK,CNP
 095 325 443 A
3
Hex collared bolt M 6 X 20 CFH,CFK,CFF,CRR,CNK,CSK,CNP
M 6 X 20
 N 902 803 02
3
hexagon head bolt (combi) M 6 X 20 CFH,CFK,CFF,CRR,CNK,CSK,CNP
M 6 X 20
 N 905 330 02
4
O-ring 19 X 3
19 X 3
 095 325 381 A
5
Bungs
 095 323 957
6
O-ring 9 X 2
9 X 2
 095 323 969
7
O-ring 7 X 2
7 X 2
 095 323 971
8
Retaining clip
 01M 321 395 A
8
Retaining clip
 096 321 395
8
Retaining clip
 01M 321 395 B
