Valve bodyoil strainerfor 4 speed automatic gearbox — Mk3 Golf Gearbox (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Oil strainer. for 4-speed automatic gearbox. valve body

Generation: Mk3 1997 (RDW) Group: Gearbox Rebuild step 9 Parts: 24 Primary OEM: 01M 325 039 FX, 01M 325 039 F, 01M 325 039 X

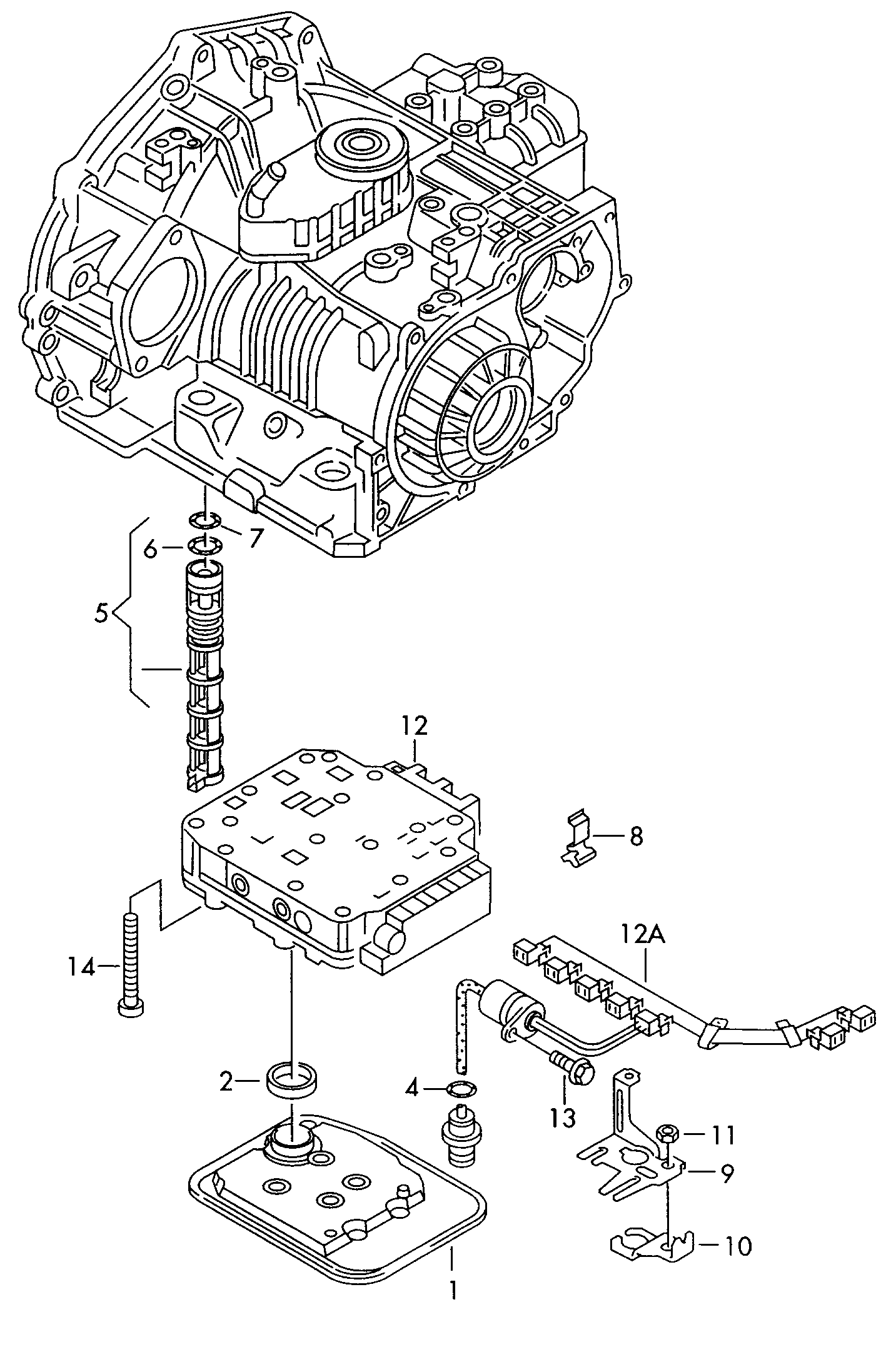

Valve bodyoil strainerfor 4 speed automatic gearbox for the Volkswagen Golf Mk3 (1997): factory exploded diagram 325050 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 22 OEM part numbers across 24 catalogued positions including 01M 325 039 FX, 01M 325 039 F and 01M 325 039 X. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 22 OEM part numbers across 24 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
valve bodyoil strainerfor 4-speed automatic gearbox CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL,DLV,DNR,DLX,DLZ,DNS,DMA,DNT,DMB
 —
(12)
valve body DLV,DNR,DLX,DLZ,DNS,DMA,DNT,DMB
 01M 325 039 FX
(12)
valve body DLV,DNR,DLX,DLZ,DNS,DMA,DNT,DMB
 01M 325 039 F
(12)
valve body CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL
 01M 325 039 X
(12)
valve body CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL
 01M 325 039 DX
1
oil strainer
 01M 325 429
10
Bracket
 095 321 425 A
11
Hexagon nut M 8
M 8
 N 011 008 18
11
Hexagon nut M 8.0
M 8.0
 N 011 008 30
12
valve body CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL
 01M 325 039
12
valve body CKX,CKZ,CLK,CLB,DAB,DKR,DKS,DLL
 01M 325 039 D
12A
Conductor foil see illustration: 927-050
927-050
 —
13
Hexagon bolt M 6 X 15
M 6 X 15
 N 904 407 01
14
Round-head screw M 6 X 55
M 6 X 55
 N 101 943 02
2
Seal
 01M 325 443
4
O-ring 19 X 3
19 X 3
 095 325 381 A
5
Bungs
 095 323 957
6
O-ring 9 X 2
9 X 2
 095 323 969
7
O-ring 7 X 2
7 X 2
 095 323 971
8
Retaining clip
 01M 321 395
8
Retaining clip
 01M 321 395 A
8
Retaining clip
 01M 321 395 B
8
Retaining clip
 096 321 395
9
Bracket
 095 321 424 E

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Factory group
02 Gearbox
Factory subgroup
325050

Related factory diagrams

Other published gearbox plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the valve bodyoil strainerfor 4 speed automatic gearbox diagram for the Mk3 Golf?
This diagram lists 22 OEM part numbers for the Mk3 Golf. The first three are 01M 325 039 FX, 01M 325 039 F and 01M 325 039 X.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
