Headlight washer system — Mk3 Golf Glazing Wiper Washer System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Windshield wiper

Generation: Mk3 1997 (RDW) Group: Glazing / wiper washer system Parts: 47 Primary OEM: 333 867 633 4 FB, 1J0 955 964 F, 1J0 973 722

Headlight washer system for the Volkswagen Golf Mk3 (1997): factory exploded diagram 955050 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 40 OEM part numbers across 47 catalogued positions including 333 867 633 4 FB, 1J0 955 964 F and 1J0 973 722. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 40 OEM part numbers across 47 numbered positions.

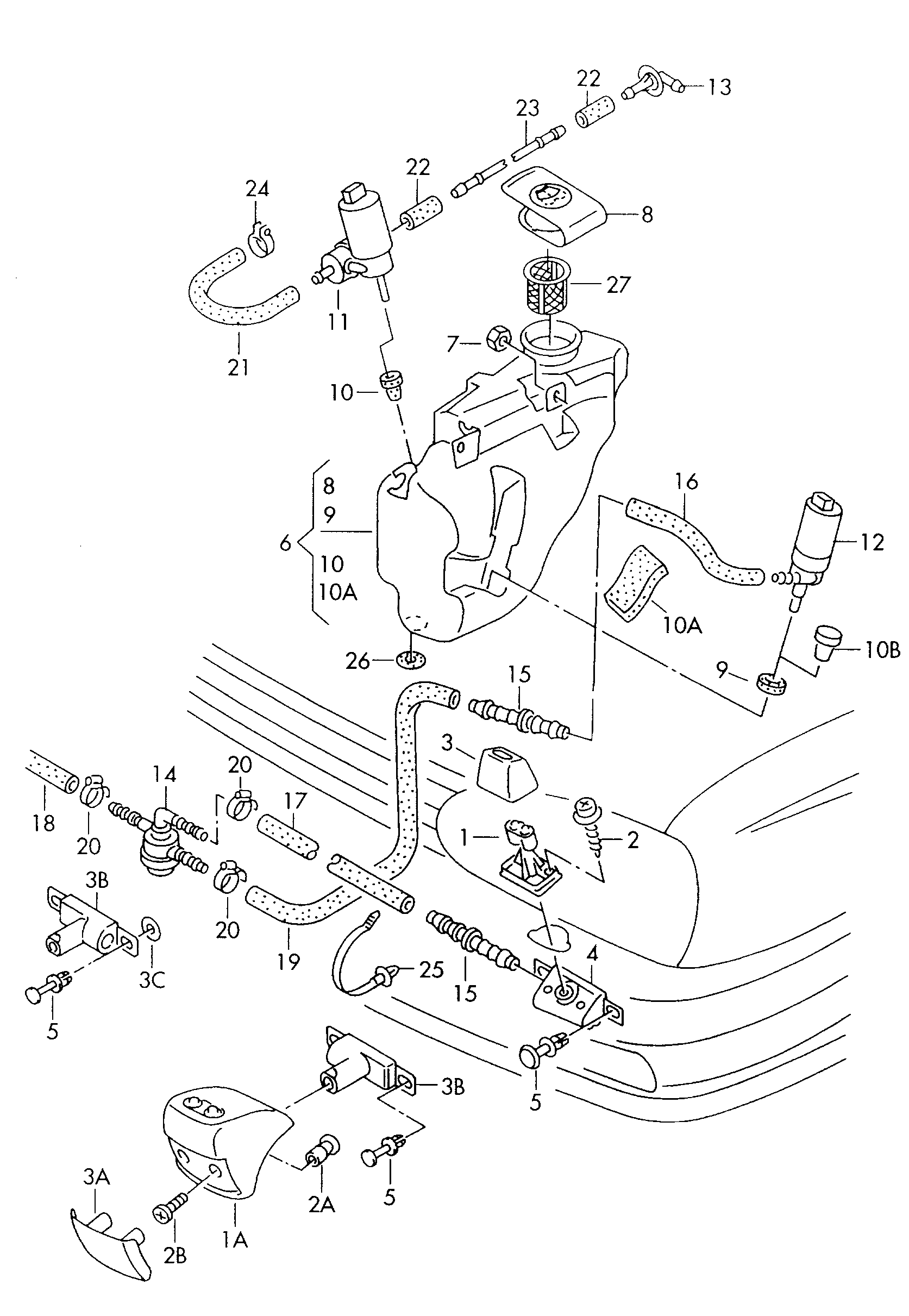

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Black	333 867 633 4 FB
-	hose in coils of 5 m'order unit 5' S 10 X 3 S 10 X 3	1J0 955 964 F
-	Flat contact housing withcontact locking mechanism	1J0 973 722
-	Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM	7M0 955 961 B
-	Hose 3,8 X 2,1 X 1300 MM 3,8 X 2,1 X 1300 MM	2D0 955 962
-	hose in coils of 5 m'order unit 5' S 10 X 3 S 10 X 3	N 020 348 1
(1)	Nozzle carrier w/spray nozzle	1H6 955 102
(3)	Cover cap	1H6 955 110
(4)	Bracket mount	1H6 955 134
1	Nozzle carrier w/spray nozzle	1H6 955 101
10	Seal 12 X 6,5 12 X 6,5	443 955 465
10A	Underlay	867 955 499
10B	Bungs	444 955 647
11	Windscreen washer system pump	1H6 955 651
12	Windscreen washer system pumpheadlight washer system	1H0 955 681
12	Windscreen washer system pumpheadlight washer system also use: 1 J 0 973 722 1 J 0 973 722	1J0 955 681
12	Pump for headlight-washer system also use: 1 J 0 973 722 A 1 J 0 973 722 A	3B7 955 681
13	Elbow fitting	1H0 955 750
14	retaining valve	281 955 187
15	Connecting piece	191 955 977
16	shorten to: 330 MM 330 MM	—
17	shorten to: 450 MM 450 MM	—
18	shorten to: 600 MM 600 MM	—
19	shorten to: 800 MM 800 MM	—
2	oval head panel screw 4,8 X 25 4,8 X 25	N 013 972 9
2	oval head panel screw ST 4,8 X 25-C ST 4,8 X 25-C	N 013 972 1
20	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
21	shorten to: 150 MM 150 MM	—
21	Hose 4 X 2,5 X 150 4 X 2,5 X 150	333 955 962
22	shorten to: 50 MM 50 MM	—
23	shorten to: 600 MM 600 MM	—
24	Hose clip 8 X 7 8 X 7	N 024 399 2
25	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
25	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
26	Seal 28 X 10,4 X 1,5 28 X 10,4 X 1,5	111 857 779
27	strainer	1C0 955 485
27	strainer	4A0 955 485
3	Cover cap	1H6 955 109
3C	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
4	Bracket mount	1H6 955 133
5	Spreader rivet	333 867 633
6	Fluid reservoir	1H0 955 451 A
7	Hexagon collar nut 5 5	N 903 521 01
8	End cap	8D0 955 455
8	End cap	357 955 455
8	End cap	1K0 955 455
9	Seal	431 955 465 A
