Wiper washer system rear window — Mk3 Golf Glazing Wiper Washer System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Windshield wiper

Generation: Mk3 1997 (RDW) Group: Glazing / wiper washer system Parts: 31 Primary OEM: 7M0 955 961 B, 333 955 962, 2D0 955 962

Wiper washer system rear window for the Volkswagen Golf Mk3 (1997): factory exploded diagram 955065 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 29 OEM part numbers across 31 catalogued positions including 7M0 955 961 B, 333 955 962 and 2D0 955 962. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 29 OEM part numbers across 31 numbered positions.

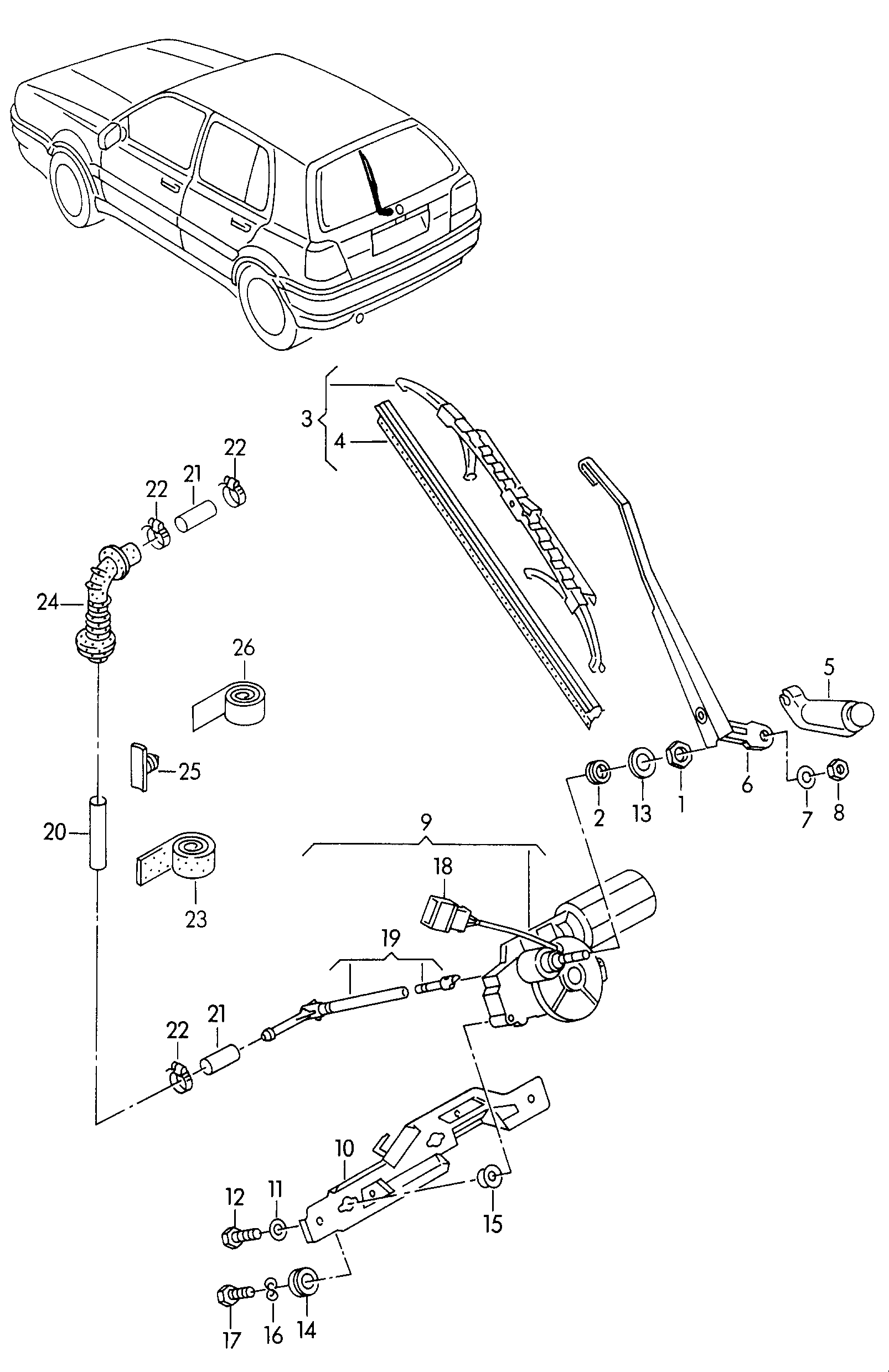

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM	7M0 955 961 B
-	Hose 4 X 2,5 X 150 4 X 2,5 X 150	333 955 962
-	Hose 3,8 X 2,1 X 1300 MM 3,8 X 2,1 X 1300 MM	2D0 955 962
(17)	Hexagon bolt M 6 X 20 M 6 X 20	N 010 217 10
1	Hexagon nut M 16 X 1 M 16 X 1	823 955 243 A
1	Hexagon nut M 16 X 1 M 16 X 1	7D0 955 243
1	Hexagon nut M 16 X 1 M 16 X 1	823 955 243 B
10	bracket for wiper motor	1H6 955 717
11	Washer 6,5 6,5	N 011 547 6
12	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
13	Shim	1H6 955 753
14	Grommet 14 X 9,5 14 X 9,5	701 955 754
15	bush	333 955 756 A
16	Washer 5,5 X 18 X 1,6 5,5 X 18 X 1,6	N 011 673 5
16	Washer B 5,5 X 18 X 1,6 B 5,5 X 18 X 1,6	N 011 673 3
18	flat connector housing	191 972 713
19	Water jet with connecting pipe	1H6 955 985
2	Bearing seal	1H6 955 261
20	shorten to: 1800 MM 1800 MM	—
21	shorten to: 75 MM 75 MM	—
22	Hose clip 8 X 7 8 X 7	N 024 399 2
23	Felt strips (self-adhesive) 20 X 3 X 880 MM 20 X 3 X 880 MM	533 863 288 A
3	wiper blade 350 MM VALEO 350 MM VALEO	1J6 955 427
3	wiper blade	331 955 425
4	Wiper blade rubbers 400 MM VALEO 400 MM VALEO	161 955 429
4	Wiper blade rubbers 550 MM 550 MM	895 955 429 A
5	cap for wiper arm	1H6 955 435 A
6	Wiper arm	1H6 955 707
7	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
8	Hexagon nut M 8 M 8	N 011 151 3
9	Wiper motor	1H6 955 713 A
