Windscreen washer system — Mk3 Golf Glazing Wiper Washer System (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Windshield wiper

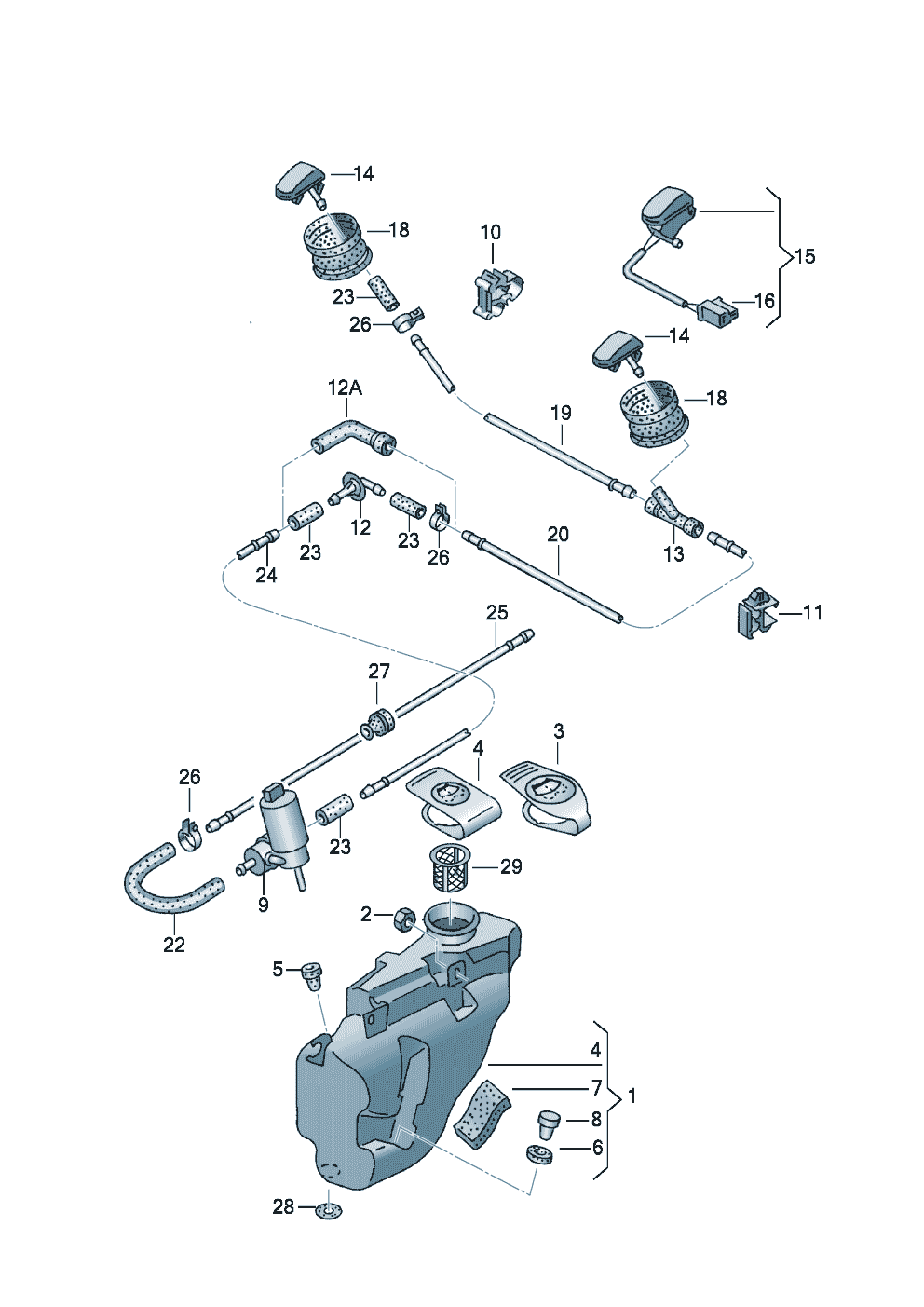

Windscreen washer system for the Volkswagen Golf Mk3 (1997): factory exploded diagram 955025 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 33 OEM part numbers across 39 catalogued positions including 2D0 955 962, 7M0 955 962 B and 1H0 955 963 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 33 OEM part numbers across 39 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | Hose 3,8 X 2,1 X 1300 MM 3,8 X 2,1 X 1300 MM | 2D0 955 962 |
| - | Hose 3,8 X 2,1 X 860 MM 3,8 X 2,1 X 860 MM | 7M0 955 962 B |
| - | Pipe 5 X 1 X 675 MM 5 X 1 X 675 MM | 1H0 955 963 A |
| - | Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM | 7M0 955 961 B |
| - | Pipe 5 X 1 X 6000 MM 5 X 1 X 6000 MM | 7M0 955 961 B |
| 1 | Fluid reservoir | 1H0 955 451 A |
| 10 | Hose bracket | 1H0 955 747 |
| 11 | Hose bracket | 357 955 747 |
| 12A | Elbow fitting | 333 955 665 |
| 12A | Elbow fitting | 893 955 665 |
| 13 | t-piece | 6X0 955 975 |
| 13 | t-piece | 701 955 975 |
| 14 | Water jet | 191 955 985 A |
| 15 | Spray nozzle, heated | 191 955 986 A |
| 16 | Flat contact housing | 161 971 989 C |
| 17 | Connecting hose 4 X 30 4 X 30 | 443 955 665 |
| 17 | Grommet 4 X 30 4 X 30 | 803 971 896 |
| 18 | Grommet | 1H0 955 998 |
| 19 | shorten to: 490 MM 490 MM | — |
| 2 | Hexagon collar nut 5 5 | N 903 521 01 |
| 20 | shorten to: 675 MM 675 MM | — |
| 22 | shorten to: 150 MM 150 MM | — |
| 23 | shorten to: 40 MM 40 MM | — |
| 24 | shorten to: 600 MM 600 MM | — |
| 25 | shorten to: 4300 MM 4300 MM | — |
| 26 | Hose clip 8 X 7 8 X 7 | N 024 399 2 |
| 27 | Grommet 15/4 15/4 | 171 611 751 |
| 28 | Seal 28 X 10,4 X 1,5 28 X 10,4 X 1,5 | 111 857 779 |
| 29 | strainer | 4A0 955 485 |
| 29 | strainer | 1C0 955 485 |
| 3 | End cap 38 MM 38 MM | 1H0 955 455 |
| 4 | End cap 54 MM 54 MM | 8D0 955 455 |
| 4 | End cap 54 MM 54 MM | 1K0 955 455 |
| 4 | End cap 54 MM 54 MM | 357 955 455 |
| 5 | Seal 12 X 6,5 12 X 6,5 | 443 955 465 |
| 6 | Seal | 431 955 465 A |
| 7 | Underlay | 867 955 499 |
| 8 | Bungs | 444 955 647 |
| 9 | Windscreen washer system pump | 1H6 955 651 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 39 Glazing / wiper washer system
- Factory subgroup
- 955025
