Window glasses seals — Mk3 Golf Glazing Wiper Washer System (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Window glasses, seals

Generation: Mk3 1993 - 1996 (MEX) Group: Glazing / wiper washer system Parts: 38 Primary OEM: 1H5 853 357 B 41, 1H5 845 525 A B 41, 1HM 845 011

Window glasses seals for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 845000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 38 OEM part numbers including 1H5 853 357 B 41, 1H5 845 525 A B 41 and 1HM 845 011. Parts on this plate carry the engine code RA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 38 OEM part numbers across 38 numbered positions.

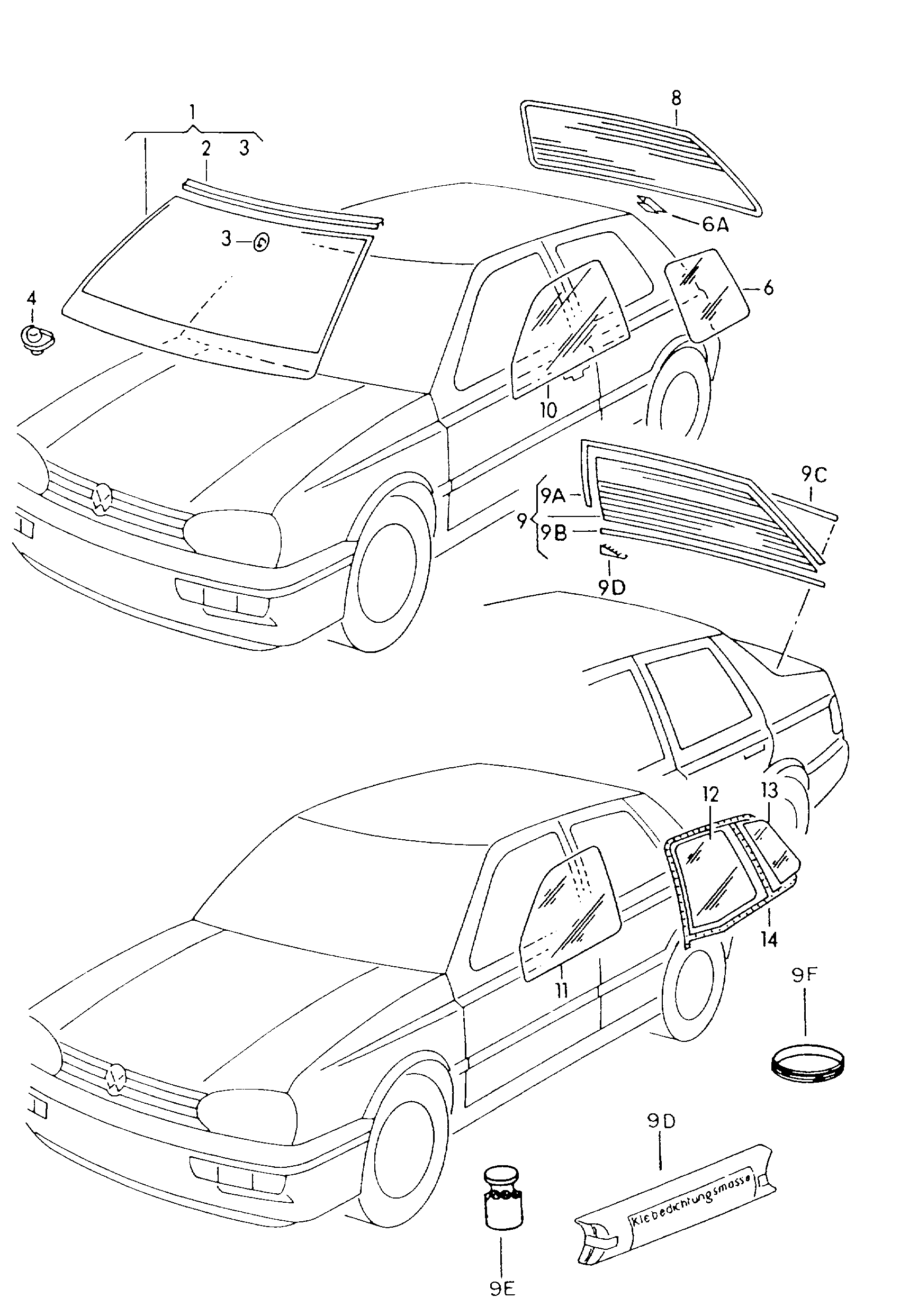

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 1H5 853 357 B 41
Satin black
 1H5 845 525 A B 41
(1)
Windscreen (laminated glass)F >> 1 H-T-000 074 F >> 1 H-T-002 700* "USA","CDN"
 1HM 845 011
(1)
Windscreen (laminated glass)F 1 H-T-000 075>>F 1 H-T-002 701>>* "USA","CDN"
 1HM 845 011 A
(10)
Door window GOLF
 1H3 845 202 A
(11)
Door window
 1HM 845 202
(11)
Door window
 1HM 845 201
(12)
Door window
 1HM 845 206
(13)
Door window (fixed)
 1H4 845 216 A
(14)
Window guide
 1H4 839 432
(2)
Cover section
 1E0 853 306
(3)
Retaining plate forinterior mirror F 1 H-T-000 075>> "USA","CDN"
 6N0 845 543
(3)
Retaining plate forinterior mirror F 1 H-T-002 701>>*
 6N0 845 543
(6)
Side window F >> 1 H-T-999 000 GOLF
 1H6 845 042 A
(8)
Heated rear window F 1 H-S-021 240>>F 1 H-T-001 232>>F 1 H-T-002 950>> "BR."+GOLF GL"MEX"+GOLF ATLANTA"RA."+GOLF GL
RA
1H6 845 051 N
(8)
Rear window F >> 1 H-S-999 000 F 1 H-T-000 001>> GOLF CLGOLF CITY
 1HM 845 051 F
(8)
Heated rear windowfor vehicles with spoiler For vehicles with highmounted brake light F >> 1 H-T-999 000 F >> 1 H-T-999 000 F >> 1 H-T-999 000 F 1 H-R-006 758>> 1 H-S-999 000 F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-018 220>> 1 H-T-999 000 F 1 H-S-020 610>> 1 H-T-999 000 F 1 H-S-021 191>> 1 H-T-999 000 F 1 H-T-002 481>> 1 H-T-999 000 "USA","CDN"GOLF GL,GTI"BR."+GOLF GTI"MEX"+GOLF GT"MEX"+GOLF GTI VR 6"BR."+GOLF GLX"RA."+GOLF GTI,GLXGOLFMANHATTAN"MEX"+GOLF SPORT
RA
1H6 845 051 R
(9)
Heated rear window For vehicles with highmounted brake light F >> 1 H-T-001 132 F >> 1 H-T-999 000 but without:but without: >>1 H-T-001132 >>1 H-T-9990001 H 5 853 357(B 41) "USA","CDN"JETTA"USA","CDN"
>>1 H-T-001132 >>1 H-T-9990001 H 5 853 357(B 41)
 1HM 845 051 L
(9)
Rearview window heatedwith aerial For vehicles with highmounted brake light F 1 H-T-001 133>> 1 H-T-999 000 "USA","CDN"
 1H5 845 051 H
(9C)
Cover trim JETTA
 1H5 845 525 A
(9E)
primer 10 ML
10 ML
 D 009 200 02
10
Door window GOLF
 1H3 845 201 A
12
Door window
 1HM 845 205
13
Door window (fixed)
 1H4 845 215 A
14
Window guide
 1H4 839 431
3
Retaining plate forinterior mirror F >> 1 H-T-000 074 "USA","CDN"
 1H0 845 541
3
Retaining plate forinterior mirror F >> 1 H-T-002 700*
 1H0 845 541
4
Eccentric
 1H0 845 125
6
Side window F >> 1 H-T-999 000 GOLF
 1H6 845 041 A
6A
retaining piece For vehicles with highmounted brake light
 165 945 170
9
Rear window F >> 1 H-S-999 000 JETTA
 1HM 845 051 A
9A
Cover section F >> 1 H-T-001 132 F >> 1 H-T-999 000 "USA","CDN"JETTA
 1H5 853 357
9B
Cover section JETTA
 1H5 853 365
9D
wedge 31 X 9 X 10 JETTA
31 X 9 X 10
 1H5 845 513
9D
1 K window adhesive 300 ML
300 ML
 DH 009 100
9E
Activator for pre-coatedwindows 10 ML
10 ML
 D 181 801 A1
9E
Activator for pre-coatedwindows 10 ML
10 ML
 AMV 181 800 02
9F
cutting wire for removingwindows 0,6 X 0,6 X 5000
0,6 X 0,6 X 5000
 357 845 955

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Engine codes on this plate
RA
Variant tags
diesel_turbo
Factory group
39 Glazing / wiper washer system
Factory subgroup
845000
