Window glasses seals — Mk3 Golf Glazing Wiper Washer System (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Window glasses, seals

Generation: Mk3 1997 (RDW) Group: Glazing / wiper washer system Parts: 46 Primary OEM: D 004 300 05, 1H0 845 011 F, 1H0 845 011 H

Window glasses seals for the Volkswagen Golf Mk3 (1997): factory exploded diagram 845000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 45 OEM part numbers across 46 catalogued positions including D 004 300 05, 1H0 845 011 F and 1H0 845 011 H. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 45 OEM part numbers across 46 numbered positions.

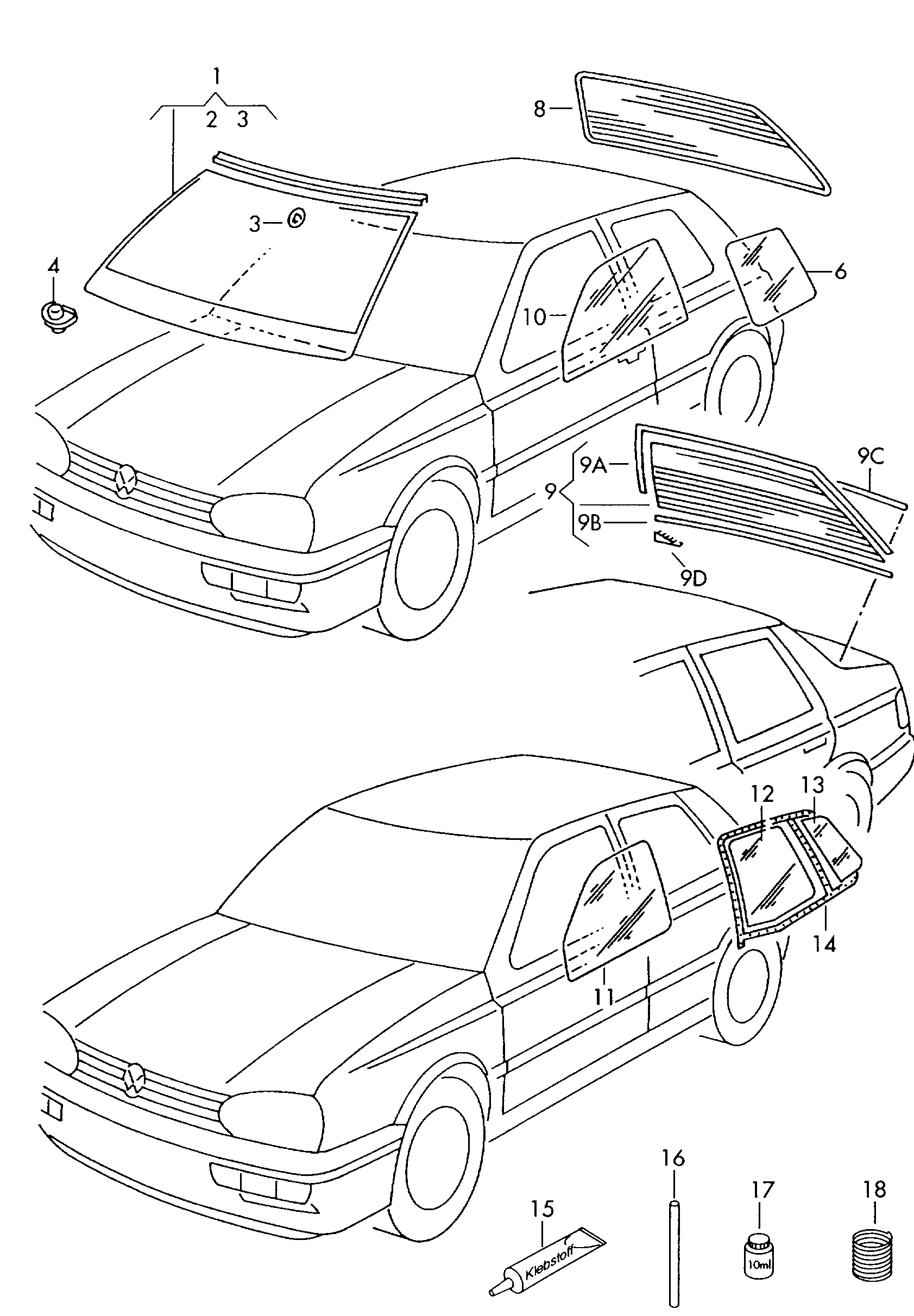

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	2 k adhesive sealant use if required: 2 X 150 MLD 009 700 2 X 150 MLD 009 700	D 004 300 05
(1)	Windscreen (laminated glass) PR:4 GD	1H0 845 011 F
(1)	Windscreen (laminated)with colour strip PR:4 GF	1H0 845 011 H
(10)	Door window	1H3 845 202 A
(10)	Door window	1H3 845 201
(10)	Door window	1H3 845 202
(11)	Door window	1H4 845 201
(11)	Door window	1H4 845 202
(11)	Door window	1H4 845 202 A
(12)	Door window	1H4 845 206
(12)	Door window	1H4 845 206 A
(12)	Door window	1H4 845 205
(13)	Door window (fixed)	1H4 845 215
(13)	Door window (fixed)	1H4 845 216
(13)	Door window (fixed)	1H4 845 216 A
(14)	Window guide	1H4 839 432
(15)	2 K pane adhesive set 400 ML 400 ML	DA 004 600 A2
(17)	primer 10 ML 10 ML	D 009 200 02
(3)	Retaining plate forinterior mirror	6N0 845 543
(6)	Side window	1H6 845 042
(6)	Side window	1H6 845 041
(6)	Side window	1H6 845 042 A
(8)	Heated rear window	1H6 845 051 M
(8)	Heated rear window	1H6 845 051 N
(8)	Heated rear windowfor vehicles with spoiler	1H6 845 051 Q
(8)	Heated rear windowfor vehicles with spoiler	1H6 845 051 P
(8)	Heated rear windowfor vehicles with spoiler	1H6 845 051 J
(8)	Heated rear windowfor vehicles with spoiler For vehicles with highmounted brake light	1H6 845 051 AA
(8)	Heated rear windowfor vehicles with spoiler For vehicles with highmounted brake light	1H6 845 051 AB
(8)	Heated rear window For vehicles with highmounted brake light	1H6 845 051 S
(8)	Heated rear window For vehicles with highmounted brake light	1H6 845 051 T
1	Windscreen (laminated glass) PR:4 GF	1H0 845 011 G
10	Door window	1H3 845 201 A
11	Door window	1H4 845 201 A
12	Door window	1H4 845 205 A
13	Door window (fixed)	1H4 845 215 A
14	Window guide	1H4 839 431
15	1 K window adhesive 300 ML 300 ML	DH 009 100
16	Mixer rod	D 009 700
16	No longer available	—
17	Activator for pre-coatedwindows 10 ML 10 ML	D 181 801 A1
17	Activator for pre-coatedwindows 10 ML 10 ML	AMV 181 800 02
18	cutting wire for removingwindows 0,6 X 0,6 X 50000 0,6 X 0,6 X 50000	357 845 955
2	Cover sectionshorten to: 1035 MM 1035 MM	1E0 853 306
4	Eccentric	1H0 845 125
6	Side window	1H6 845 041 A
