Window regulator rear — Mk3 Golf Glazing Wiper Washer System (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Window regulator

Generation: Mk3 1994 - 1997 (RDW) Group: Glazing / wiper washer system Parts: 68 Primary OEM: 1H0 837 581 D Q 70, 1H0 837 581 B B 41, 1H0 837 581 B F 31

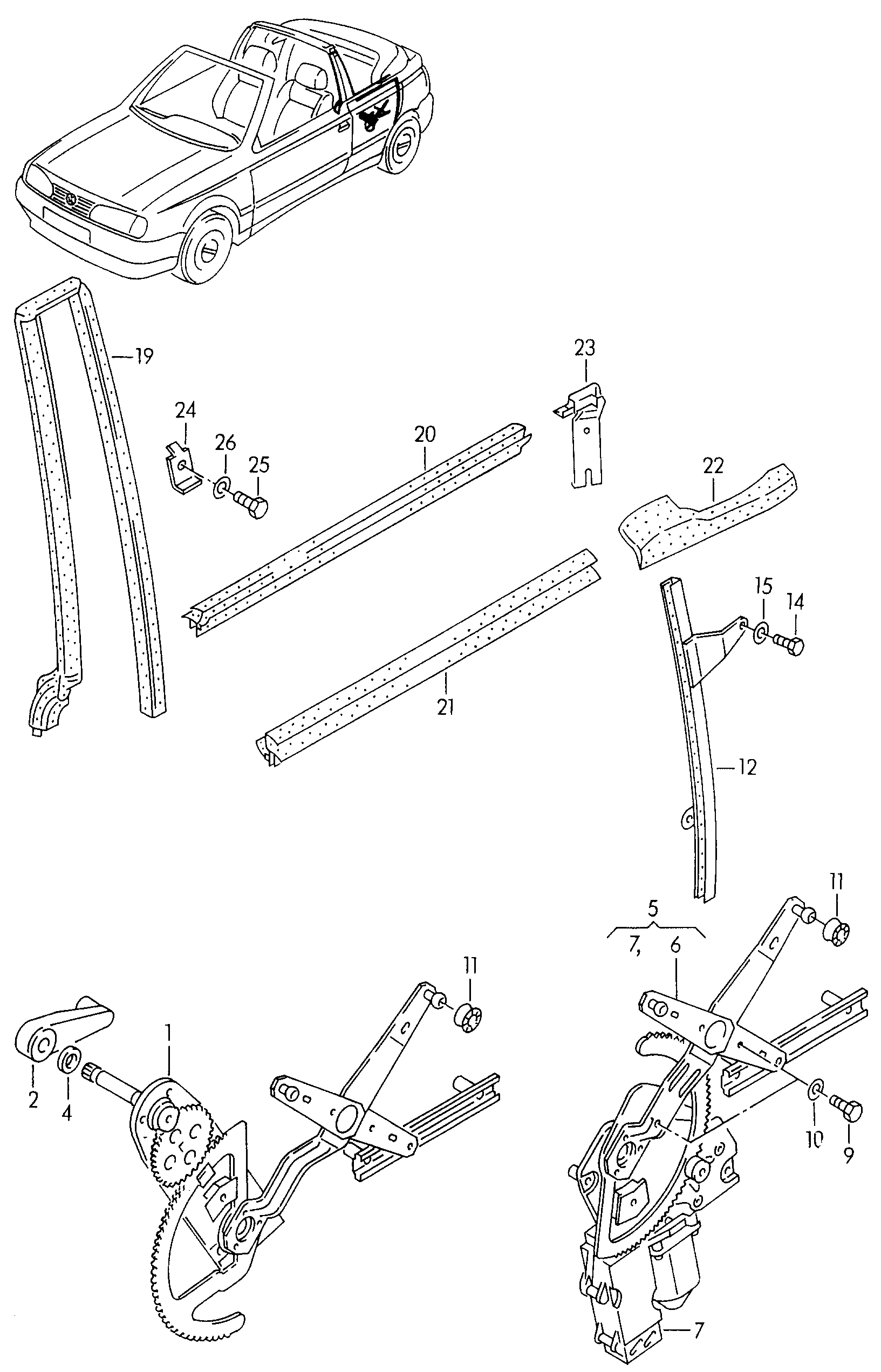

Window regulator rear for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 847000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 67 OEM part numbers across 68 catalogued positions including 1H0 837 581 D Q 70, 1H0 837 581 B B 41 and 1H0 837 581 B F 31. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 67 OEM part numbers across 68 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
light beige
 1H0 837 581 D Q 70
Satin black
 1H0 837 581 B B 41
mauritius blue
 1H0 837 581 B F 31
pebble grey
 1H0 837 581 B Y 01
Satin black
 1H0 837 581 D B 41
mauritius blue
 1H0 837 581 D F 31
pebble grey
 1H0 837 581 D Y 01
Satin black
 1E0 847 344 A B 41
Flannel grey
 1H0 837 581 D U 71
Satin black
 1E0 871 410 B 41
Satin black
 1E0 871 409 A B 41
Satin black
 1E0 871 409 B 41
Satin black
 1E0 871 456 B 41
Satin black
 1E0 871 455 B 41
Satin black
 1E0 847 346 B 41
Satin black
 1E0 847 345 B 41
Satin black
 1E0 847 329 B 41
Satin black
 1E0 847 330 B 41
Satin black
 1E0 847 343 B 41
Satin black
 1E0 847 344 B B 41
Satin black
 1E0 847 343 A B 41
Satin black
 1E0 847 344 B 41
Satin black
 1E0 847 343 B B 41
Satin black
 1E0 871 410 A B 41
(1)
Window regulator
 1E0 847 272
(12)
Guide rail
 1E0 847 262
(19)
seal for door and sidewindow use if required: 251 823 717
251 823 717
 1E0 847 330
(19)
seal for door and sidewindow use if required: 251 823 717
251 823 717
 1E0 847 329
(2)
window crank
 1H0 837 581 D
(20)
Window aperture seal
 1E0 847 344
(20)
Window aperture seal
 1E0 847 344 B
(20)
Window aperture seal
 1E0 847 343
(20)
Window aperture seal
 1E0 847 344 A
(21)
Window aperture seal Shorten if necessary
 1E0 847 346
(22)
seal for main pillar
 1E0 871 456
(23)
seal for main pillar
 1E0 871 410 A
(23)
seal for main pillar
 1E0 871 410
(6)
Window regulator without motor
 1E0 847 276
(7)
Window regulator motor F 1 E-T-000 001>>*
 1E0 959 812 B
(7)
Window regulator motor F 1 E-T-000 001>> 1 E-V-009 000*
 1E0 959 811 A
(7)
Window regulator motor F >> 1 E-V-036 000* "J.."
 1E0 959 812
(7)
Window regulator motor F 1 E-T-000 001>>*
 1E0 959 811 B
(7)
Window regulator motor F 1 E-V-036 001>>* "J.."
 1E0 959 811 B
(7)
Window regulator motor F >> 1 E-S-050 000*
 1E0 959 812
(7)
Window regulator motor F 1 E-T-000 001>> 1 E-V-009 000*
 1E0 959 812 A
(7)
Window regulator motor F 1 E-V-036 001>>* "J.."
 1E0 959 812 B
1
Window regulator
 1E0 847 271
10
Washer 6,5
6,5
 N 011 547 6
11
guide roller
 1E0 837 651
12
Guide rail
 1E0 847 261
14
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26
15
Washer 6,5
6,5
 N 011 547 6
2
window crank
 1H0 837 581 B
20
Window aperture seal
 1E0 847 343 A
20
Window aperture seal
 1E0 847 343 B
21
Window aperture seal Shorten if necessary
 1E0 847 345
22
seal for main pillar
 1E0 871 455
23
seal for main pillar
 1E0 871 409
23
seal for main pillar
 1E0 871 409 A
24
stop for window regulator
 1E0 839 443
25
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26
26
Washer 6,5
6,5
 N 011 547 6
4
Seal 20 X 60 X 15
20 X 60 X 15
 411 837 447
5
No longer available
 —
6
Window regulator without motor
 1E0 847 275
7
Window regulator motor F >> 1 E-S-050 000*
 1E0 959 811
7
Window regulator motor F >> 1 E-V-036 000* "J.."
 1E0 959 811
9
Hexagon bolt M 6 X 12
M 6 X 12
 N 010 212 26

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1994 - 1997
Generation region
RDW
Generation code
146
Factory group
39 Glazing / wiper washer system
Factory subgroup
847000

Related factory diagrams

Other published glazing wiper washer system plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the window regulator rear diagram for the Mk3 Golf?
This diagram lists 67 OEM part numbers for the Mk3 Golf. The first three are 1H0 837 581 D Q 70, 1H0 837 581 B B 41 and 1H0 837 581 B F 31.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
