Windshield wiper — Mk3 Golf Glazing Wiper Washer System (1997)

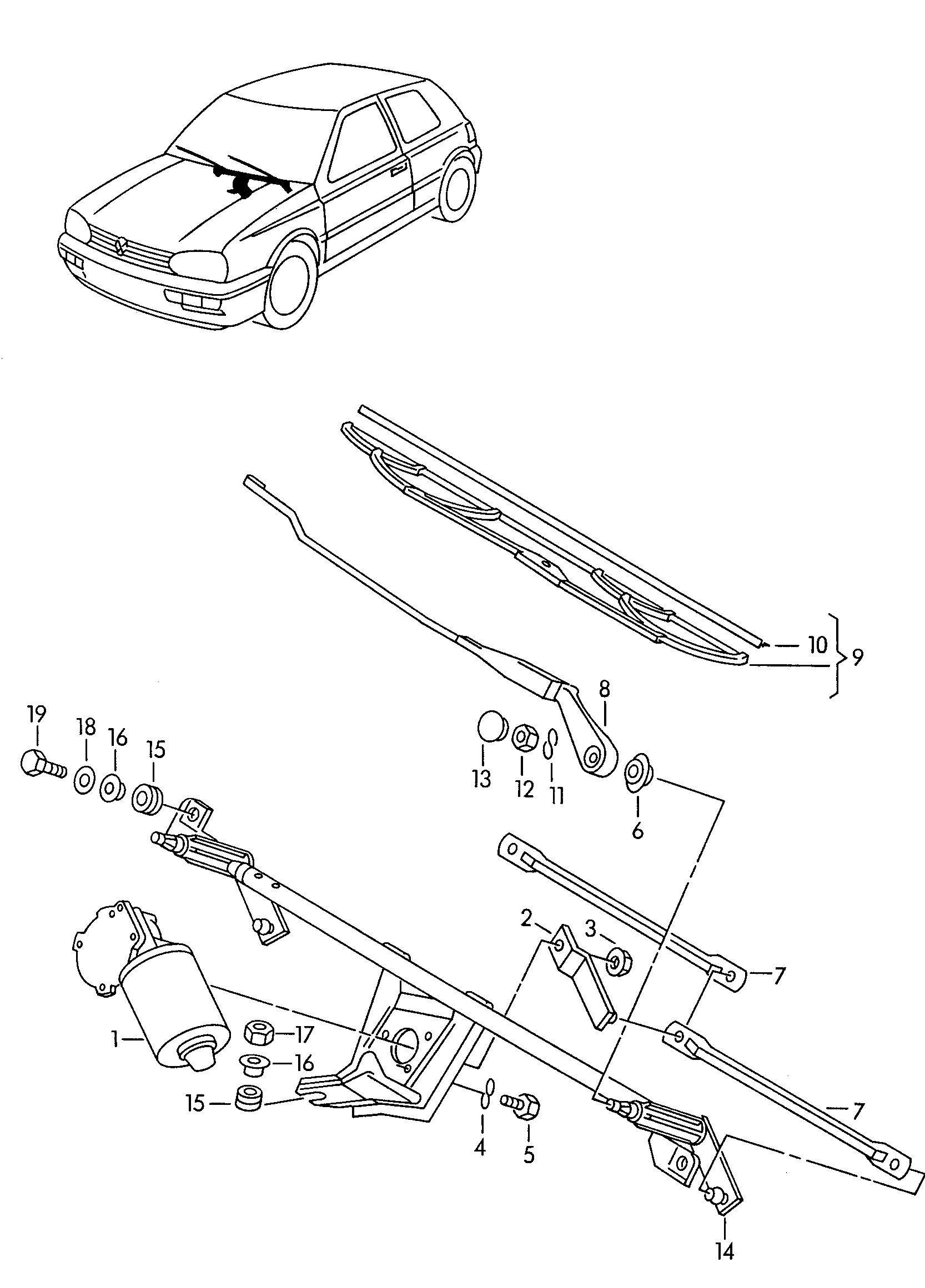

Factory title: Volkswagen Golf (1997 - 1998) - Windshield wiper
Windshield wiper for the Volkswagen Golf Mk3 (1997): factory exploded diagram 955010 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 38 OEM part numbers including 1J0 955 205 A 0 1C, 1J0 955 429 A and 1H2 955 603. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 38 OEM part numbers across 38 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1J0 955 205 A 0 1C | |
| (10) | 1 set wiper blade rubbers 600 MM VALEO 600 MM VALEO | 1J0 955 429 A |
| (14) | base, windshield wiper | 1H2 955 603 |
| (17) | Hexagon nut M 6 M 6 | N 011 006 24 |
| (19) | Hexagon bolt M 6 X 20 M 6 X 20 | N 010 217 10 |
| (5) | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| (8) | Wiper arm | 1H1 955 409 C |
| (8) | Wiper arm | 1H2 955 410 B |
| (8) | Wiper arm | 1H1 955 410 B |
| (8) | Wiper arm | 1H2 955 409 A |
| (9) | 1 set: wiper blades VALEO VALEO | 1H0 998 003 |
| (9) | wiper blade(passenger side) 475 MM 475 MM | 1H0 955 425 D |
| (9) | wiper blade(passenger side) 475 MM 475 MM | 1H0 955 425 C |
| (9) | Wiper blade with guide paddle(drivers side) 530 MM 530 MM | 3A1 955 425 |
| (9) | wiper blade(passenger side) 475 MM VALEO 475 MM VALEO | 1H0 955 427 |
| (9) | Wiper blade with guide paddle(drivers side) 530 MM VALEO 530 MM VALEO | 3A1 955 427 |
| (9) | 1 set: wiper blades | 1H0 998 001 A |
| (9) | Conversion kit to aerowiperblades with wearindicator(driver and passenger side) | 1J0 998 002 B |
| (9) | Conversion kit to aerowiperblades with wearindicator(driver and passenger side) | 1J2 998 002 |
| 1 | Wiper motor withoutcrank | 1H0 955 119 |
| 1 | Wiper motor withoutcrank | 1J0 955 119 |
| 1 | Wiper motor | 1C0 955 119 |
| 10 | Wiper blade rubbers 550 MM 550 MM | 895 955 429 A |
| 11 | Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6 | N 011 558 11 |
| 12 | Hexagon nut M 8 M 8 | N 011 151 3 |
| 13 | Cap | 1J0 955 205 |
| 13 | Cap | 893 955 205 |
| 13 | Cap | 1J0 955 205 A |
| 14 | base, windshield wiper | 1H1 955 603 |
| 15 | Grommet 14 X 9,5 14 X 9,5 | 701 955 754 |
| 16 | bush | 701 955 756 |
| 18 | Washer B 5,5 X 18 X 1,6 B 5,5 X 18 X 1,6 | N 011 673 3 |
| 18 | Washer 5,5 X 18 X 1,6 5,5 X 18 X 1,6 | N 011 673 5 |
| 2 | Crank arm | 701 955 121 |
| 3 | Hexagon collar nutself-locking M 8 M 8 | N 901 838 02 |
| 4 | Spring washer 6 6 | N 012 226 5 |
| 6 | Grommet | 1H0 955 229 |
| 7 | operating linkage | 1H0 955 325 |
