Accelerator pedal — Mk3 Golf Pedals (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Brake and clutch pedals cluster

Generation: Mk3 1997 (RDW) Group: Pedals Parts: 26 Primary OEM: 1H1 723 509, 1H2 721 631 A, 1H1 721 509 A

Accelerator pedal for the Volkswagen Golf Mk3 (1997): factory exploded diagram 721055 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 24 OEM part numbers across 26 catalogued positions including 1H1 723 509, 1H2 721 631 A and 1H1 721 509 A. Parts on this plate carry the engine codes AEY, AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 24 OEM part numbers across 26 numbered positions.

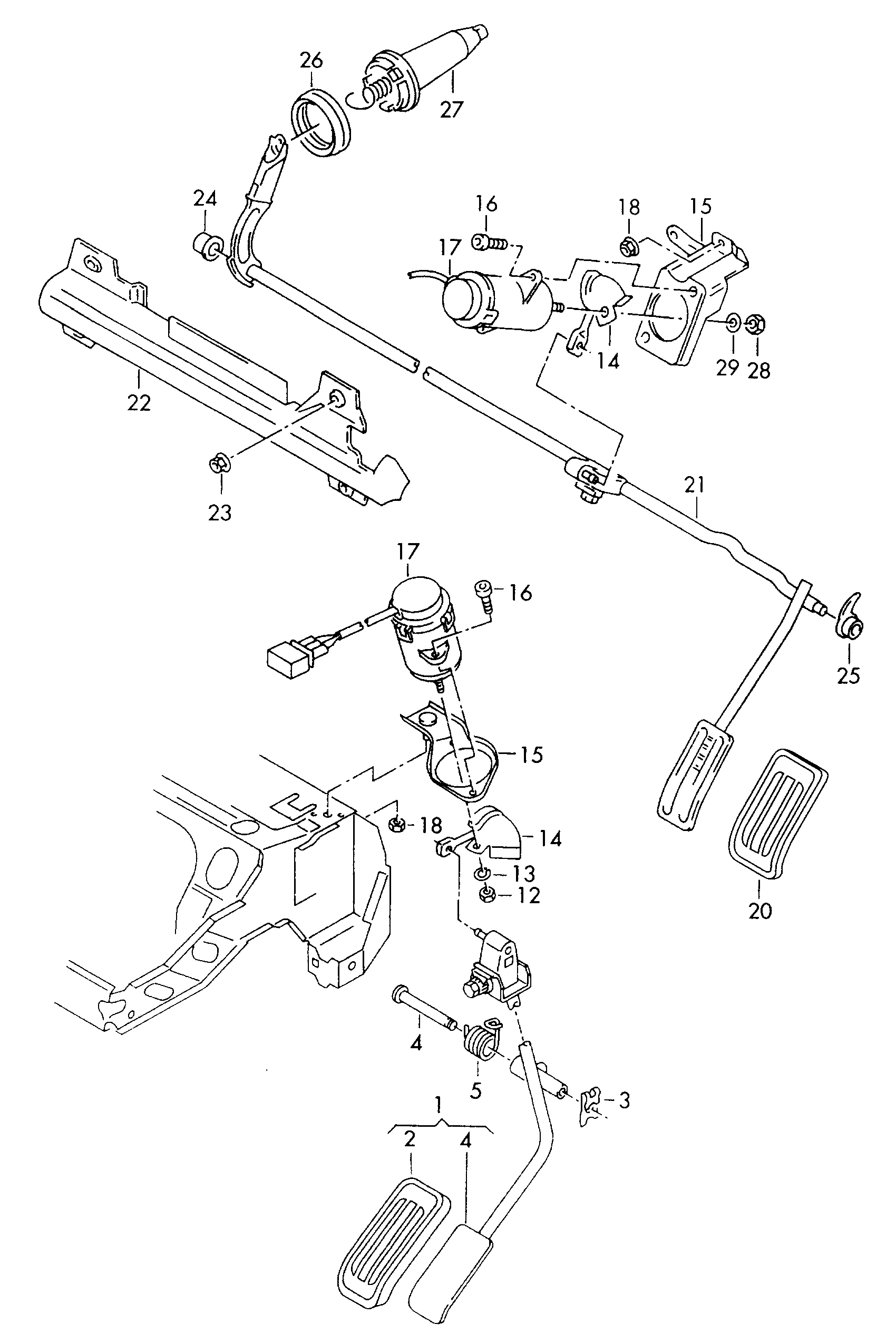

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Accelerator pedal Diesel eng.+1 Z,AEY,AFN,AHU,ALE AEYAFNAHUALE	—
(1)	Accelerator pedal automatic	1H1 723 509
(15)	Bracket Potentiometer	1H2 721 631 A
1	Accelerator pedal manualgearbox	1H1 721 509 A
12	Hexagon nut M 6 M 6	N 011 006 27
13	Spring washer 6 6	N 012 226 5
14	cable plate sector	443 721 757 C
14	cable plate sector	4A0 721 757 A
14	cable plate sector	4A0 721 757
15	Bracket	1H1 721 631 A
16	Socket head bolt withhexagon socket head M 6 X 18 M 6 X 18	N 014 703 5
17	accelerator pedal sender see illustration: 906-010 906-010	—
18	Hexagon collar nutself-locking M 8 M 8	N 902 264 03
2	Cap for accelerator pedal	171 721 647
21	Accelerator pedal	1H2 721 509 C
21	Accelerator pedal	1H2 721 509 G
22	Cover	1H2 721 585 D
23	Hexagon collar nut 5 5	171 201 969
24	Bearing bush	1H2 721 177
25	Bearing bush	1H2 721 178
26	Seal	1H2 721 591
27	Support	1H2 721 610
28	Hexagon nut M 6 M 6	N 011 006 24
29	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
3	securing clip	191 721 516
4	bearing pin	1H1 721 517 A
