Which VW part numbers are on the selector mechanism automatic diagram for the Mk3 Golf?

This diagram lists 48 OEM part numbers for the Mk3 Golf. The first three are 358 713 139 0 1C, 357 713 139 A 0 1C and 358 713 139 A 0 1C.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine code RA.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Selector mechanism automatic — Mk3 Golf Pedals (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Selector mechanism

Generation: Mk3 1997 (RDW) Group: Pedals Parts: 52 Primary OEM: 358 713 139 0 1C, 357 713 139 A 0 1C, 358 713 139 A 0 1C

Selector mechanism automatic for the Volkswagen Golf Mk3 (1997): factory exploded diagram 713010 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 48 OEM part numbers across 52 catalogued positions including 358 713 139 0 1C, 357 713 139 A 0 1C and 358 713 139 A 0 1C. Parts on this plate carry the engine code RA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 48 OEM part numbers across 52 numbered positions.

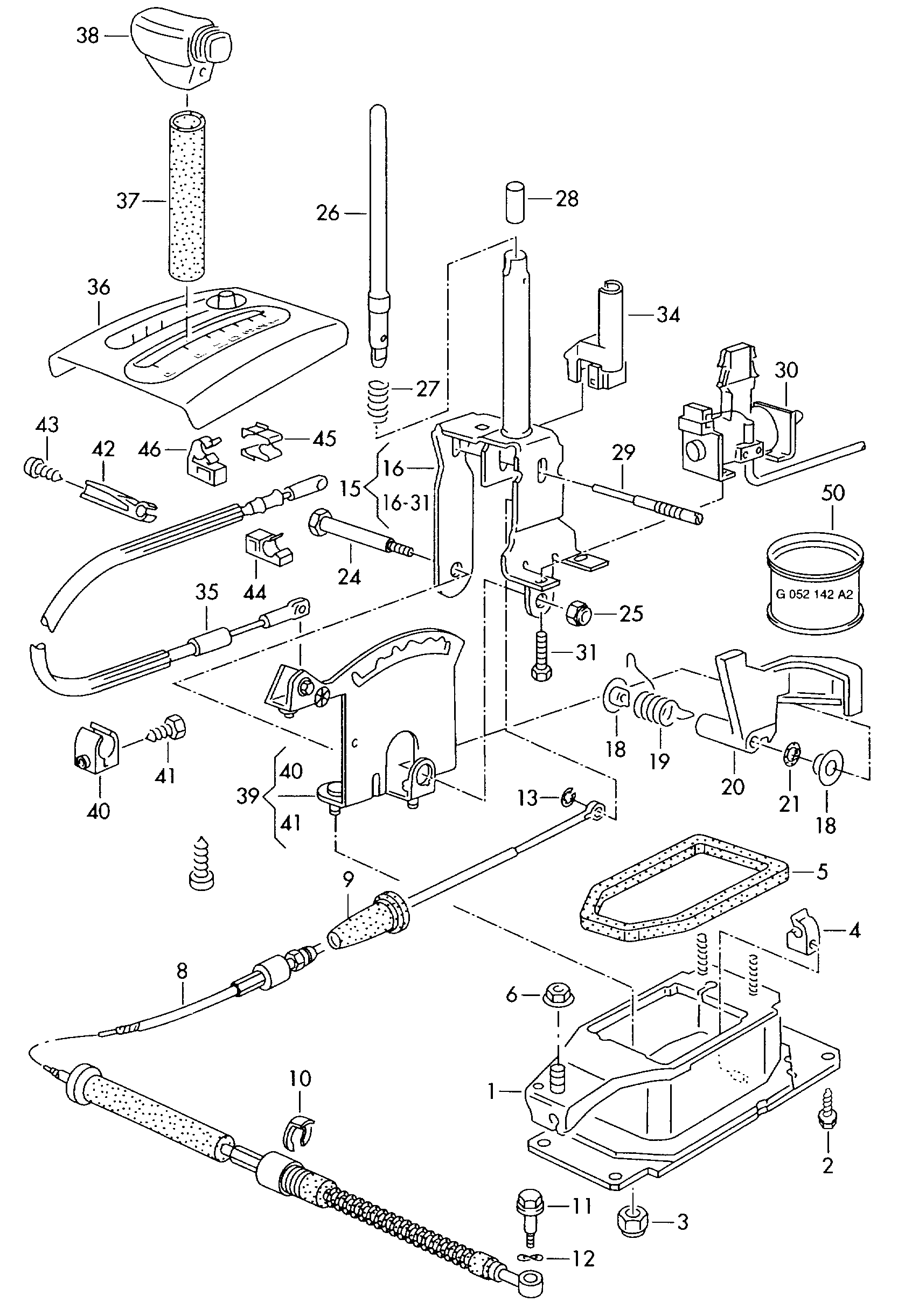

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	358 713 139 0 1C
	Satin black	357 713 139 A 0 1C
	Selector mechanism automatic	—
	Satin black	358 713 139 A 0 1C
	Satin black	357 713 139 B 0 1C
(1)	Selector housing PR:0 RB	3A0 713 061 A
(15)	Selector mechanism PR:0 RB	1H2 713 819
(35)	locking cable PR:0 RB	1H2 713 303
(38)	selector lever handle F >> 1 H-V-067 000*	358 713 139
(38)	gearstick knob	358 713 139 A
(38)	gearstick knob	357 713 139 B
(38)	gearstick knob	7D2 713 139
(38)	gearstick knob	7D1 713 139
(50)	poly lubricant 400 G 400 G	G 052 142 A2
1	Selector housing PR:0 RA RA	3A0 713 061
10	Retaining washer	357 711 280
11	bolt, hex. hd. with shoulderand shaft M 8 X 32 M 8 X 32	357 711 234
12	Washer 8,4 X 21 X 4 8,4 X 21 X 4	N 015 401 3
13	Retaining washer 4 4	N 012 434 2
15	Selector mechanism PR:0 RB	1H1 713 819
15	Selector mechanism PR:0 RB	1H1 713 819 B
16	selector lever guide PR:0 RB	1H0 713 821 B
17	ball housing - gearshift lever PR:0 RB	1H0 713 829
18	bush	357 713 837
19	Leg spring	357 713 145 A
2	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 7
2	Hex collared bolt M 8 X 20 M 8 X 20	N 101 559 01
20	lever	357 713 835 B
21	seal ring 12 X 1,5 12 X 1,5	N 902 118 01
24	Locating bolt	357 713 199
25	hexagon nut, self-locking M 6 M 6	N 022 148 11
26	gearshift lever PR:0 RB	1H0 713 413 D
27	Pressure spring PR:0 RB	1H0 713 149
28	bush PR:0 RB	357 713 828
29	grub screw PR:0 RB	1H0 713 133
3	hexagon nut, self-locking M 8 M 8	N 022 146 4
30	Electromagnet see illustration: 927-050 927-050	—
31	Hexagon bolt M 4 X 6 M 4 X 6	N 010 263 1
34	Bulb carrier with bulb see illustration: 927-050 927-050	—
35	locking cable PR:0 RB	1H1 713 303
36	Trim for gear selector see illustration: 863-060 863-060	—
37	Hose shorten to: 14 X 1 X 9279 MM 14 X 1 X 9279 MM	357 713 155 B
38	selector lever handle F >> 1 H-V-067 000*	357 713 139 A
39	ball housing - gearshift lever PR:0 RB	1H0 713 829 B
4	Clip	191 823 567
45	Clip	701 927 421
46	Bracketlocking cable	1H2 713 850
5	Seal	357 713 075
6	Hexagon collar nutself-locking M 8 M 8	N 909 083 01
6	hexagon nut, self-locking M 8 M 8	N 902 920 01
8	cable for shift mechanism	535 713 265
9	Grommet	191 713 167

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: RA
Variant tags: diesel_turbo
Factory group: 04 Pedals
Factory subgroup: 713010

Related factory diagrams

Other published pedals plates for the Mk3 Golf in this catalogue.

Accelerator pedal 1997 · subgroup 721055
Accelerator pedalaccelerator cable 1997 · subgroup 721060
Brake clutch pedals cluster 1997 · subgroup 721025
Selector mechanism 1997 · subgroup 711022
Selector mechanism 1997 · subgroup 711024
Brake lever 1997 · subgroup 711050
Cold starting aid cable 1997 · subgroup 711065
Selector mechanism 1997 · subgroup 711020
