Selector mechanism — Mk3 Golf Pedals (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Selector mechanism

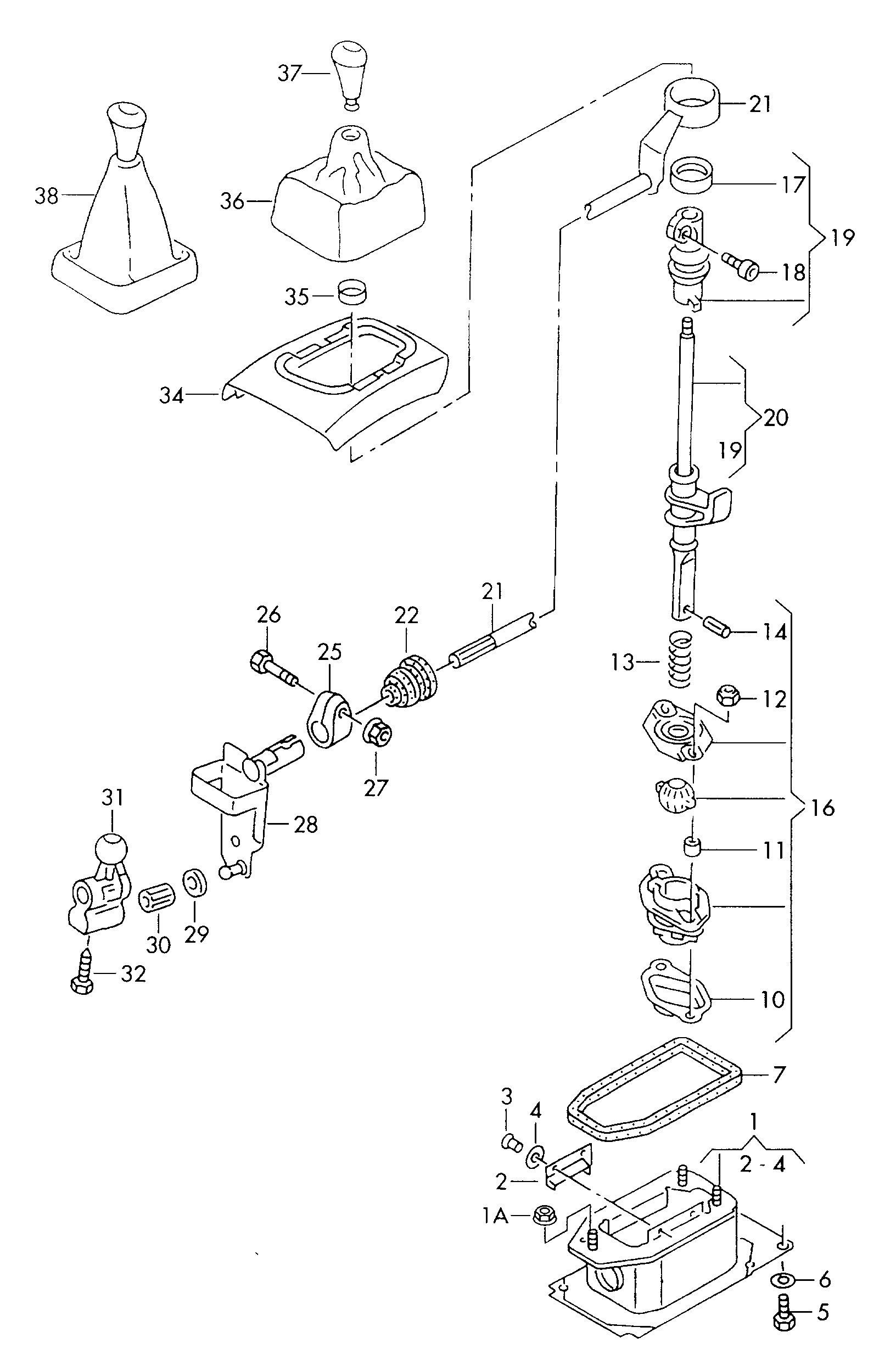

Selector mechanism for the Volkswagen Golf Mk3 (1997): factory exploded diagram 711020 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 66 OEM part numbers across 68 catalogued positions including 1H0 711 115 B B 41, 1H0 711 118 M 1 BX and 1H0 711 118 M U 69. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 66 OEM part numbers across 68 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H0 711 115 B B 41 | |
| Black COLOUR-CONZEPT,AREZZO,JOKER | 1H0 711 118 M 1 BX | |
| Selector mechanism 1.4 ltr.1.6 ltr. manualgearbox 1.4 ltr.1.6 ltr. | — | |
| Yellow/black -75 COLOUR-CONZEPT -75 | 1H0 711 118 M U 69 | |
| red/black -76 COLOUR-CONZEPT -76 | 1H0 711 118 M M 29 | |
| Green/black -78 COLOUR-CONZEPT -78 | 1H0 711 118 M J 59 | |
| Blue/black -77 COLOUR-CONZEPT -77 | 1H0 711 118 M F 89 | |
| black/yellow EDITION | 1H0 711 118 K D YU | |
| black/blue EDITION | 1H0 711 118 K D YN | |
| black/red EDITION,MATCH, | 1H0 711 118 K D YH | |
| black/green EDITION | 1H0 711 118 K J AC | |
| Black | 1H0 711 118 L 1 BX | |
| beaver | 1H0 711 118 E S 27 | |
| flint "A..":RABBIT IV,GOLF JOKER | 1H0 711 118 E X 33 | |
| Satin black | 1H0 711 141 A 0 1C | |
| Satin black | 1H0 711 141 0 1C | |
| Black | 1H0 711 115 A C 22 | |
| flint | 1H0 711 118 P F LJ | |
| black/red | 1H0 711 118 P F FU | |
| black/blue | 1H0 711 118 P F GE | |
| black/green | 1H0 711 118 J E QK | |
| - | hexagon nut, self-locking M 8 M 8 | N 902 920 01 |
| (37) | gearstick knob 1-5,R 1-5,R | 1H0 711 141 A |
| (38) | gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R | 1H0 711 118 K |
| (38) | gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R | 1H0 711 118 E |
| (38) | gearstick knob with boot forgearstick lever (leather) BON JOVI, | 1H0 711 118 P |
| (38) | gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R | 1H0 711 118 K |
| (38) | gearstick knob with boot forgearstick lever (leather) 1-5,R MOVIE 1-5,R | 1H0 711 118 J |
| (38) | gearstick knob with boot forgearstick lever (leather) 1-5,R ROLLING-STONES 1-5,R | 1H0 711 118 L |
| (38) | gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R | 1H0 711 118 E |
| 1 | Selector housing | 1H0 711 061 D |
| 10 | Underlay | 861 711 193 |
| 11 | spacer bush | 861 711 555 |
| 12 | hexagon nut, self-locking M 6 M 6 | N 011 183 12 |
| 12 | hexagon nut, self-locking M 6 M 6 | N 011 183 11 |
| 13 | Pressure spring | 431 711 197 |
| 14 | Spring pin 5 X 16 5 X 16 | N 043 314 1 |
| 16 | Repair kit for gearstick | 191 798 116 A |
| 17 | Intermediate ring | 191 711 238 B |
| 18 | Locating bolt M 5 X 6,7 X 11 M 5 X 6,7 X 11 | N 905 075 01 |
| 19 | adjusting eccentric | 191 711 073 A |
| 1A | Hexagon collar nut M 8 M 8 | N 903 471 01 |
| 2 | Guide | 191 711 146 C |
| 20 | gearshift lever | 1H0 711 116 A |
| 21 | selector shaft | 1H0 711 155 |
| 22 | bearing ring | 191 711 190 B |
| 25 | Clamp | 1H0 711 603 |
| 25 | Clamp | 1J0 711 603 |
| 26 | Hexagon bolt M 8 X 40 M 8 X 40 | N 010 340 4 |
| 26 | flat round head bolt M 8 X 40 M 8 X 40 | 1H0 711 604 |
| 27 | Hexagon collar nutself-locking AM 8 AM 8 | N 023 003 8 |
| 27 | Hexagon collar nutself-locking AM 8 AM 8 | N 902 002 01 |
| 28 | selector rod guide | 1H0 711 211 |
| 29 | Washer 11 X 20 X 5 11 X 20 X 5 | N 901 237 01 |
| 3 | Rivet 4,8 X 5,6 4,8 X 5,6 | N 101 680 01 |
| 3 | Pop rivet also use: A 4 X 9 X 8 X 1,2 N 011 522 7 A 4 X 9 X 8 X 1,2 N 011 522 7 | N 905 763 01 |
| 30 | Bearing bush | 191 711 209 |
| 31 | shift finger | 191 711 233 |
| 32 | Hexagon bolt M 8 X 26 M 8 X 26 | N 901 239 02 |
| 34 | Trim for gear selector see illustration: 863-060 863-060 | — |
| 35 | Clamping sleeve | 1H0 711 693 |
| 36 | Gearshift lever trim(leatherette) | 1H0 711 115 A |
| 36 | Gearshift lever trim | 1H0 711 115 B |
| 37 | gearstick knob (leatherette) 1-4,R 1-4,R | 1H0 711 141 |
| 38 | gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R | 1H0 711 118 M |
| 5 | Hex collared bolt M 8 X 20 M 8 X 20 | N 019 533 7 |
| 5 | Hex collared bolt M 8 X 20 M 8 X 20 | N 101 559 01 |
| 7 | Seal | 357 713 075 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Factory group
- 04 Pedals
- Factory subgroup
- 711020
Related factory diagrams
Other published pedals plates for the Mk3 Golf in this catalogue.
The complete Mk3 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the selector mechanism diagram for the Mk3 Golf?
- This diagram lists 66 OEM part numbers for the Mk3 Golf. The first three are 1H0 711 115 B B 41, 1H0 711 118 M 1 BX and 1H0 711 118 M U 69.
- Which Mk3 Golf years and engines does this diagram cover?
- This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk3 Golf factory parts catalogue?
- The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
