Brake clutch pedals cluster — Mk3 Golf Pedals (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Brake and clutch pedals cluster

Generation: Mk3 1997 (RDW) Group: Pedals Parts: 97 Primary OEM: 1H0 721 173 B 41, 321 721 173 0 1C, 6X0 721 173 B 41

Brake clutch pedals cluster for the Volkswagen Golf Mk3 (1997): factory exploded diagram 721025 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 94 OEM part numbers across 97 catalogued positions including 1H0 721 173 B 41, 321 721 173 0 1C and 6X0 721 173 B 41. Parts on this plate carry the engine codes 1Y, 1Z, 2E, AAM, AAZ, ABD, ABF and ABS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 94 OEM part numbers across 97 numbered positions.

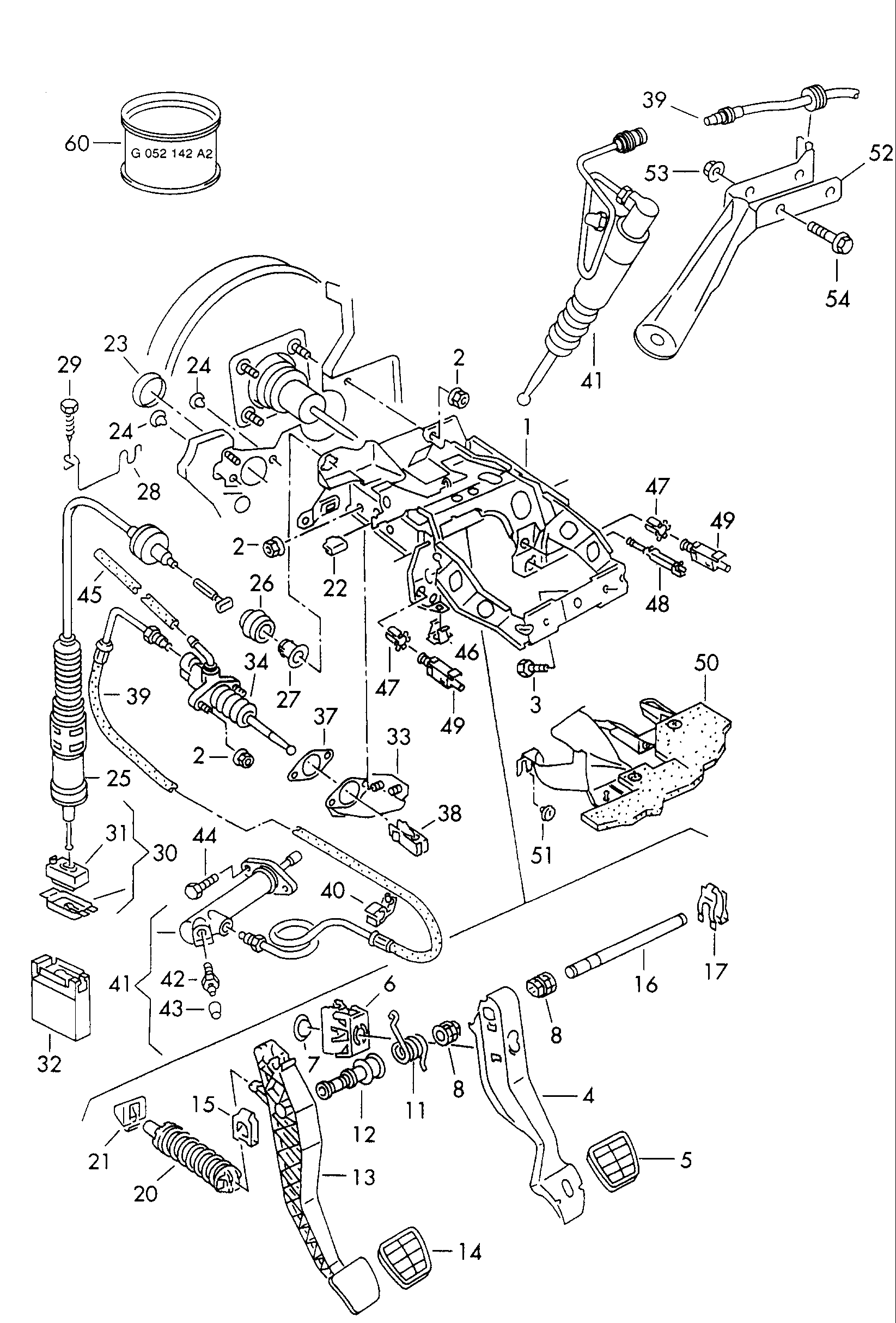

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 721 173 B 41
	Satin black	321 721 173 0 1C
	Satin black	6X0 721 173 B 41
	Satin black	1H0 723 173 B 41
	Satin black	1H1 721 321 A B 41
	Satin black	N 908 618 010 1C
	Satin black	N 904 384 010 1C
	Satin black	6X0 721 173 A 0 1C
-	Bearing bush	171 721 153
-	Clip	1H2 721 338
-	Clip Retaining bar ABD ABD	357 721 397
(1)	Bracket	1H2 721 115 E
(11)	torsion spring	1H2 721 163
(13)	Clutch pedal	1H2 721 315 D
(16)	bearing pin automatic/ecomatic	1H1 723 123
(16)	bearing pin manualgearbox	1H2 721 157
(16)	bearing pin automatic	1H2 723 123
(25)	clutch cablefor driving school vehicles ABD,ABU,AEA ABDABUAEA	1H1 721 335 J
(25)	clutch cablefor driving school vehicles ABD ABD	1H2 721 335 F
(25)	clutch cable AAM,ABS,AEP,ADZ,ACC,ADY,AGG,AEXDiesel eng.+1 Y,AAZ,AEY, AAMAAZABSACCADYADZAEPAEYAGG	1H2 721 335 C
(25)	clutch cable ABD,ABU,AEA,AEK, ABDABUAEAAEK	1H1 721 335 M
(25)	clutch cable ABD ABD	1H2 721 335 H
(25)	clutch cablefor driving school vehicles AAM,ABS,ADZ,ADY,AEY,AEKAEP,Diesel eng.+1 Y,AAZ AAMAAZABSADYADZAEY	1H1 721 335 G
(25)	clutch cable ABD ABD	1H2 721 335 D
(25)	clutch cablefor driving school vehicles AAM,ABS, ,Diesel eng.+1 Y,AAZ AAMAAZABS	1H2 721 335 G
(28)	bracket for clutch cable ABD,ABU,AEK,AEA ABDABUAEAAEK	1H1 721 399 E
(28)	bracket for clutch cable ABD ABD	1H2 721 399 A
(32)	Balance weight 400 G 1 Y,AAZ 400 G 1YAAZ	020 141 781 C
(33)	Mounting block	1H1 721 901 A
(34)	Master cylinder AEY AEY	1H2 721 388 A
(34)	Master cylinder	1H2 721 401
(34)	Master cylinder AEY AEY	1H1 721 401 A
(39)	Pipe/hose line	1H2 721 465 A
(39)	Pipe/hose line AEY, AEY	1H2 721 465 B
(39)	Pipe/hose line AEY, AEY	1H1 721 465 C
(4)	brake pedal automatic	1H1 723 141
(4)	brake pedal manualgearbox	1H2 721 143 A
(4)	brake pedal automatic	1H2 723 143 A
(40)	Bracket AEY, AEY	1H2 721 487 B
(40)	Bracket	1H2 721 487 A
(41)	Slave cylinder AEY, AEY	1H0 721 261
(5)	Cap for foot brake pedal automatic/ecomatic	1H0 723 173
(50)	Cover	1H2 721 099 B
(60)	poly lubricant 400 G 400 G	G 052 142 A2
1	bracket for pedal cluster	1H1 721 115 L
11	torsion spring	1H1 721 163
12	Bearing bush see illustration: 419-25/35 419-25/35	—
13	Clutch pedal	1H1 721 321 A
14	Cap	6X0 721 173 A
14	Pedal cap	321 721 173
15	Retaining washer manualgearbox	1H0 721 194
16	bearing pin manualgearbox	1H1 721 157
17	Retaining washer	1H0 721 159
2	hexagon nut, self-locking M 8 M 8	N 900 744 01
20	Over-centre spring...... AAM,ABS,ADZ,AAZ,AEY,ACX,2 E,ACC,AEP,AFT,ADY,AGG,AEK,ABF, 2EAAMAAZABFABSACCACXADYADZAEKAEPAEYAFTAGG	1J2 721 403 A
20	Over-centre spring...... AAM,ABS,ADZ,AAZ,AEY,ACX,2 E,ACC,AEP,AFT,ADY,AGG,AEK,ABF, 2EAAMAAZABFABSACCACXADYADZAEKAEPAEYAFTAGG	1H0 721 403 A
21	bearings	1H0 721 423
22	Stop buffer	1H0 721 232
23	Bungs 34,5 34,5	1H0 612 249
24	Bungs	1H0 612 250
25	clutch cable AAM,ABS,ADZADY,AFT,AEK,AEP,ACC,AEE,AEX,AGG,AKS,AKR,APQDiesel eng.+1 Y,1 Z,AAZ, 1ZAAMAAZABSACCAEEAEKAEPAEXAFTAGGAKRAKS	1H1 721 335 A
26	Bellows	1H1 721 365
27	guide tube forclutch cable	1H1 721 362
28	Bracket AAM,ABS,ADZ,2 E,ADY,AEP,Diesel eng.+1 Y,AAZ, 2EAAMAAZABSADYADZAEP	1H1 721 399 B
29	hexagon head panel screw 6,5 X 16 6,5 X 16	N 015 945 1
3	Hex collared bolt M 8 X 18 M 8 X 18	N 019 538 2
30	1 set fixing parts forclutch cable AAM,ABS,2 E,ADZ,AGG,AEX,AEE 2EAAMABSADZAEEAEXAGG	1H0 798 303 A
31	Stop buffer	1H0 721 303
32	Balance weight 190 G Diesel eng.+1 Y,AAZ 190 G AAZ	1H1 721 761
34	Master cylinder also use: 1 H 0 721 357 1 H 0 721 357	1H1 721 401
37	Seal	358 721 410
38	Support	1H0 721 357
39	Pipe/hose line	1H1 721 465 B
4	brake pedal manualgearbox	1H1 721 141
40	Hose bracket	357 721 488
41	Slave cylinder	357 721 261 A
42	Breather valve M 10 X 1 M 10 X 1	357 615 273
43	dust cap	211 611 483
44	Hex collared bolt M 8 X 35 M 8 X 35	N 101 953 01
45	Hose shorten to: 350 MM 190 MM/210 MM 350 MM 190 MM/210 MM	857 721 453
46	Spring clip 12 X 10,4 12 X 10,4	N 908 475 01
46	Clip	1H0 721 095
47	Clip 13 13	431 721 283 B
48	switch - brake light see illustration: 945-050 945-050	—
49	ventilation valve see illustration: 906-010 906-010	—
5	Capfor foot brake pedal manualgearbox	1H0 721 173
5	Capfor foot brake pedal manualgearbox	6X0 721 173
50	Cover	1H1 721 099 C
51	press stud 24 X 9,5 X 8 24 X 9,5 X 8	N 908 618 01
51	press stud 24 X 9,5 X 8 24 X 9,5 X 8	N 904 384 01
52	Retaining plate AEY, AEY	1H0 721 413
53	Hexagon nut M 10 AEY, M 10 AEY	N 101 552 07
53	Hexagon nut M 10 AEY, M 10 AEY	N 011 010 11
54	Hex collared bolt M 10 X 70 AEY, M 10 X 70 AEY	N 019 532 4
6	Support	1H2 721 169
7	bearing shell	1H0 721 179
8	Bearing bush	1H2 721 153 A

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 1Z, 2E, AAM, AAZ, ABD, ABF, ABS
Variant tags: diesel
Factory group: 04 Pedals
Factory subgroup: 721025
