Brake lever — Mk3 Golf Pedals (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Selector mechanism

Generation: Mk3 1997 (RDW) Group: Pedals Parts: 61 Primary OEM: 1H0 711 461 J C MP, 1H0 711 461 A B 41, 1H0 711 461 K E BP

Brake lever for the Volkswagen Golf Mk3 (1997): factory exploded diagram 711050 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 56 OEM part numbers across 61 catalogued positions including 1H0 711 461 J C MP, 1H0 711 461 A B 41 and 1H0 711 461 K E BP. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 56 OEM part numbers across 61 numbered positions.

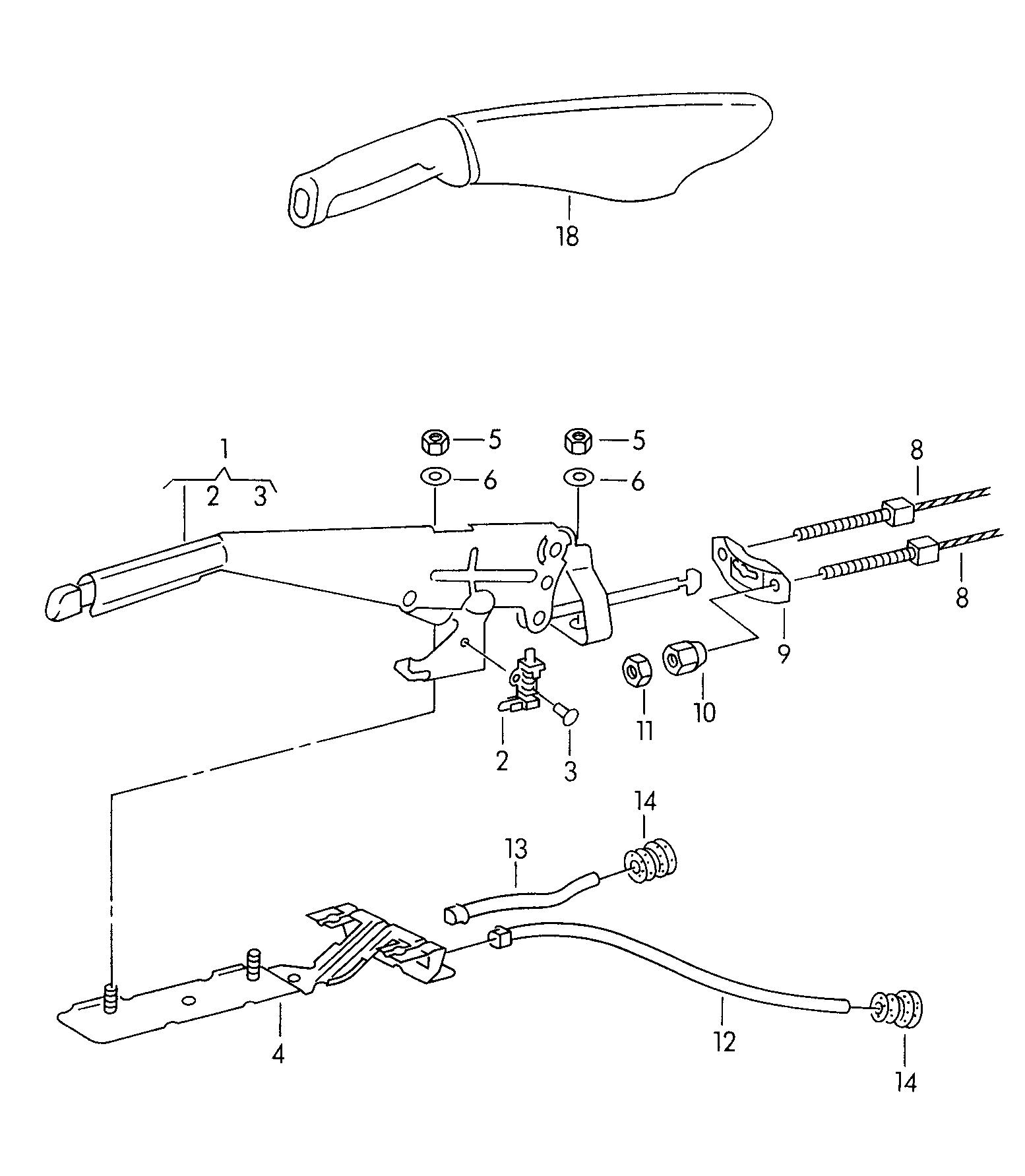

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Black COLOUR-COCEPT,MATCH,AREZZO,	1H0 711 461 J C MP
	Satin black	1H0 711 461 A B 41
	beaver	1H0 711 461 K E BP
	Satin black	1H0 711 461 H B 41
	Satin black	6N0 711 303 C 0 1C
	Blue/black	1H0 711 461 L F AF
	Satin black	6N0 711 303 A 0 1C
	Black -79 -79	1H0 711 320 G AA
	Satin black	1H0 711 303 D 0 1C
	black/red GTI,GTI 16 V,TDI:PR:E 2 U"I.."GTI 16 V:PR:E 4 T	1H0 711 303 D L 32
	Satin black	6N0 711 303 0 1C
	chrome	1E0 711 303 2 ZZ
	soft black	1H0 863 319 D C 82
	chrome	1H0 711 303 F 2 ZZ
	red/black	1H0 711 461 L E AW
	silver/black	1H0 711 303 E 3 ZS
	Green/black	1H0 711 461 L F AQ
	Yellow/black COLOUR-CONCEPT	1H0 711 461 L E AM
	Black COLOUR-CONCEPT,MATCH,AREZZO,GOLF JOKER	1H0 711 461 L C MP
	black/red GTI,GTI 16 V,TDI:PR:E 2 U,"I.."GTI 16 V:PR:E 4 T,BON JOVI	1H0 711 461 L G RW
	Green/black COLOUR-CONCEPT,	1H0 711 461 J F AQ
	beaver	1H0 711 461 J E BP
	Satin black	1H0 863 319 B B 41
	black/red GTI,GTI 16 V,TDI:PR:E 2 U"I.."GTI 16 V:PR:E 4 T,BON JOVI	1H0 711 461 J F DL
	flint BON JOVI,GOLF JOKER,"A..":RABBIT IV	1H0 711 461 J C US
	black/red BON JOVI,	1H0 711 461 J F HY
	black/blue BON JOVI,	1H0 711 461 J F GD
	Blue/black COLOUR-CONCEPT,	1H0 711 461 J F AF
	red/black COLOUR-CONCEPT,	1H0 711 461 J E AW
	Yellow/black COLOUR-CONCEPT,	1H0 711 461 J E AM
(1)	Brake lever For vehicles with front andrear disc brakes	1H0 711 303 E
(1)	Brake lever For vehicles with front andrear disc brakes	1H0 711 303 D
(1)	Brake leverfor vehicles with Disc brake	1E0 711 303
(1)	Brake lever For vehicles with front andrear disc brakes	1H0 711 303 F
(18)	hand brake lever handlewith boot (leather)	1H0 711 461 K
(18)	hand brake lever handlewith boot (leather)	1H0 711 461 J
(18)	Centre console with stow. compand Brake lever trim(leather)	1H0 863 319 B
(18)	hand brake lever handlewith boot (leather)	1H0 711 461 L
(18)	Centre console with stow. comp Brake lever	1H0 863 319 D
(18)	handbrake lever grip (leather)	1H0 711 320
(18)	Brake lever trim see illustration: 863-060 VR 6 863-060	—
1	Brake leverfor drum brakes	6N0 711 303 A
1	Brake leverfor drum brakes	6N0 711 303 C
1	Brake lever Drum brake	6N0 711 303
10	adjusting nut M 6 M 6	357 711 349
11	Hexagon nut M 6 M 6	N 011 006 24
12	guide tubefor hand brake cable	1H0 711 951
12	guide tube for handbrakecable	1H0 711 951 B
13	guide tubefor hand brake cable	1H0 711 952
13	guide tube for handbrakecable	1H0 711 952 C
14	Grommet	191 711 487
18	handle for hand brake leverwith boot	1H0 711 461 A
18	handle for hand brake leverwith boot	1H0 711 461 H
2	Switch see illustration: 947-000 947-000	—
3	Rivet see illustration: 947-000 947-000	—
4	Support	1H0 711 355
5	Hexagon nut M 8 M 8	N 011 008 8
6	Washer 8,4 X 21 X 2 8,4 X 21 X 2	N 900 577 01
8	brake cablefor drum brakes see illustration: 609-020 609-020	—
8	brake cablefor floating caliper brake see illustration: 615-060 615-060	—
9	compensating arm	191 711 399
