Which VW part numbers are on the cold starting aid cable diagram for the Mk3 Golf?

This diagram lists 14 OEM part numbers for the Mk3 Golf. The first three are 1H0 711 503 0 1C, 1H2 711 533 and 1H2 711 570.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Cold starting aid cable — Mk3 Golf Pedals (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Selector mechanism

Generation: Mk3 1997 (RDW) Group: Pedals Parts: 15 Primary OEM: 1H0 711 503 0 1C, 1H2 711 533, 1H2 711 570

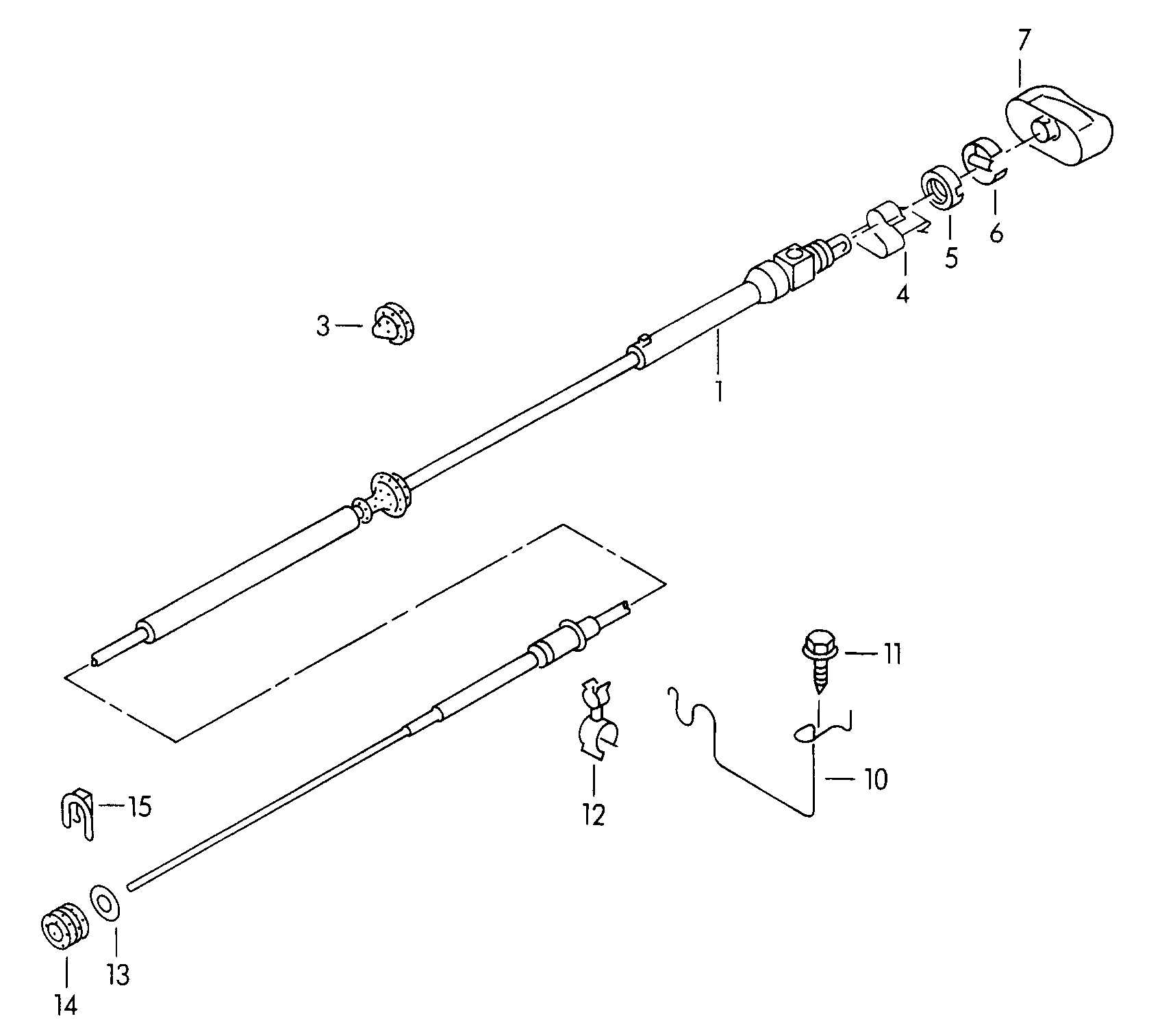

Cold starting aid cable for the Volkswagen Golf Mk3 (1997): factory exploded diagram 711065 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 14 OEM part numbers across 15 catalogued positions including 1H0 711 503 0 1C, 1H2 711 533 and 1H2 711 570. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 14 OEM part numbers across 15 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	cold starting aid cable diesel eng.	—
	Satin black	1H0 711 503 0 1C
(10)	Bracket	1H2 711 533
(4)	Clip	1H2 711 570
1	cold starting aid cable	1H0 711 501 D
10	Bracket	1H1 721 399 B
11	hexagon head panel screw 6,5 X 16 6,5 X 16	N 015 945 1
12	Bracket	068 130 319 A
13	Washer 10 10	N 011 527 11
14	bush	171 711 512
15	Retaining washer 8 8	N 900 527 02
3	Bungs 5 X 1 X 11 5 X 1 X 11	N 020 027 1
5	Nut	861 711 509 A
6	Clip	1H0 711 558
7	handle	1H0 711 503

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Variant tags: diesel
Factory group: 04 Pedals
Factory subgroup: 711065

Related factory diagrams

Other published pedals plates for the Mk3 Golf in this catalogue.

Accelerator pedal 1997 · subgroup 721055
Accelerator pedalaccelerator cable 1997 · subgroup 721060
Brake clutch pedals cluster 1997 · subgroup 721025
Selector mechanism 1997 · subgroup 711020
Selector mechanism 1997 · subgroup 711022
Selector mechanism 1997 · subgroup 711024
Brake lever 1997 · subgroup 711050
Selector mechanism automatic 1997 · subgroup 713010
