Which VW part numbers are on the accelerator pedalaccelerator cable diagram for the Mk3 Golf?

This diagram lists 47 OEM part numbers for the Mk3 Golf. The first three are 1H1 721 511 B B 41, 1H1 721 517 0 1C and 1H2 721 819.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The parts on it carry the engine codes 1Y, 2E, AAA, AAM, AAZ, ABD, ABF and ABS.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Accelerator pedalaccelerator cable — Mk3 Golf Pedals (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Brake and clutch pedals cluster

Generation: Mk3 1997 (RDW) Group: Pedals Parts: 49 Primary OEM: 1H1 721 511 B B 41, 1H1 721 517 0 1C, 1H2 721 819

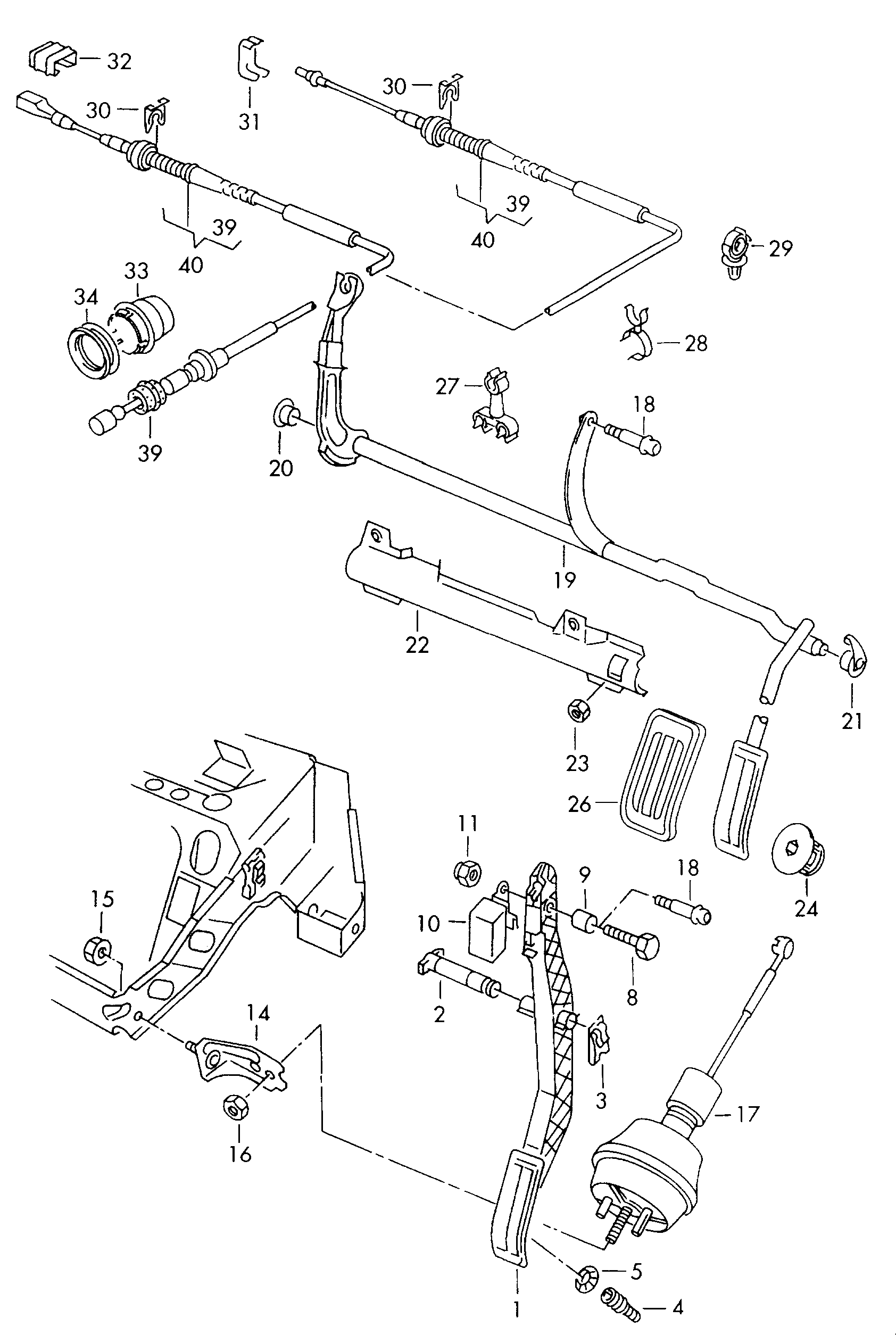

Accelerator pedalaccelerator cable for the Volkswagen Golf Mk3 (1997): factory exploded diagram 721060 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 47 OEM part numbers across 49 catalogued positions including 1H1 721 511 B B 41, 1H1 721 517 0 1C and 1H2 721 819. Parts on this plate carry the engine codes 1Y, 2E, AAA, AAM, AAZ, ABD, ABF and ABS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 47 OEM part numbers across 49 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H1 721 511 B B 41
	Satin black	1H1 721 517 0 1C
(14)	Retaining plate	1H2 721 819
(18)	Ball stud	358 721 831
(19)	Accelerator pedal AGG,AFT,ABD,2 E,ABF,AFX,AEX,AEE,AAM,ADZ,AAA,Diesel eng.+1 Y,AAZ 2EAAAAAMAAZABDABFADZAEEAEXAFTAFXAGG	1H2 721 509 F
(19)	Accelerator pedal AGG,AFT,ABD,2 E,ABF,AFX,AEX,AEE,AAM,ADZ,AAA,Diesel eng.+1 Y,AAZ, 2EAAAAAMAAZABDABFADZAEEAEXAFTAFXAGG	1H2 721 509 E
(22)	Cover	1H2 721 585 D
(4)	Stop for accelerator pedal automatic	191 723 527
(40)	accelerator cable Diesel eng.+AAZ	1H0 723 555 N
(40)	accelerator cable AAA AAA	1H0 721 555 AA
(40)	accelerator cable AAA AAA	1H0 723 555 P
(40)	accelerator cable 2 E,ADY,AEP,AGG, 2EADYAEPAGG	1H0 723 555 L
(40)	accelerator cable AAM,ABS,ADZ, AAMABSADZ	1H0 723 555 K
(40)	accelerator cable ABF,AEK,AFT,AKS ABFAEKAFTAKS	1H0 721 555 P
(40)	accelerator cable AEK,AFT,AKS AEKAFTAKS	1H0 723 555 Q
(40)	accelerator cable AEA, AEA	1H0 721 555 S
(40)	accelerator cable 2 E,ADY,AEP,AGG 2EADYAEPAGG	1H0 721 555 M
(40)	accelerator cable AEE,AEX AEEAEX	1H0 721 555 T
(40)	accelerator cable Diesel eng.+1 Y,AAZecomatic: 1Y	1H0 721 555 Q
1	Accelerator pedal also use: 3 A 1 721 871 3 A 1 721 871	1H1 721 511 B
10	Balance weight	3A1 721 871
11	hexagon nut, self-locking M 6 M 6	N 023 002 6
14	Retaining plate	1H1 721 819 A
14	Retaining plate	1H1 721 819
15	Hexagon collar nutself-locking M 8 M 8	N 902 264 03
16	Hexagon nut see illustration: 907-010 907-010	—
17	throttle control element see illustration: 907-010 907-010	—
18	Ball stud	1H0 721 831
2	bearing pin	1H1 721 517
20	Bearing bush	1H2 721 177
21	Bearing bush	1H2 721 178
23	Hexagon collar nut 5 5	171 201 969
24	Stop for accelerator pedal	1H2 721 527
27	retainer for ignition cables AAM,ABS AAMABS	191 905 787
28	Cable tie with hose retainer 7 X 273-8 7 X 273-8	443 957 818 C
29	Cable ties 4,5 X 140 ABD 4,5 X 140 ABD	N 902 055 01
29	Cable ties 4,6 X 200 ABD 4,6 X 200 ABD	N 906 661 01
3	securing clip 8 8	191 721 516
30	Retaining washer 7 7	N 900 956 03
31	Clip	811 721 673 A
33	Cap	1H2 721 592
34	Seal	1H2 721 591
39	Stop buffer	171 723 589 A
4	Stop for accelerator pedal manualgearbox	191 721 527
40	accelerator cable AAM,ABS,ABD,ADZ,ACC, AAMABDABSACCADZ	1H0 721 555 R
5	Rosette	171 723 528
5	Rosette	1J0 723 528
8	Hexagon bolt M 6 X 25 M 6 X 25	N 010 218 6
9	bush	1H1 721 526

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Engine codes on this plate: 1Y, 2E, AAA, AAM, AAZ, ABD, ABF, ABS
Variant tags: diesel
Factory group: 04 Pedals
Factory subgroup: 721060
