Selector mechanism — Mk3 Golf Pedals (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Selector mechanism

Generation: Mk3 1994 - 1997 (RDW) Group: Pedals Parts: 90 Primary OEM: 1H0 711 115 A C 22, 1H0 711 118 K D YH, 1H0 711 118 L 1 BX

Selector mechanism for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 711022 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 87 OEM part numbers across 90 catalogued positions including 1H0 711 115 A C 22, 1H0 711 118 K D YH and 1H0 711 118 L 1 BX. Parts on this plate carry the engine codes ABA, ADZ and AKR. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 87 OEM part numbers across 90 numbered positions.

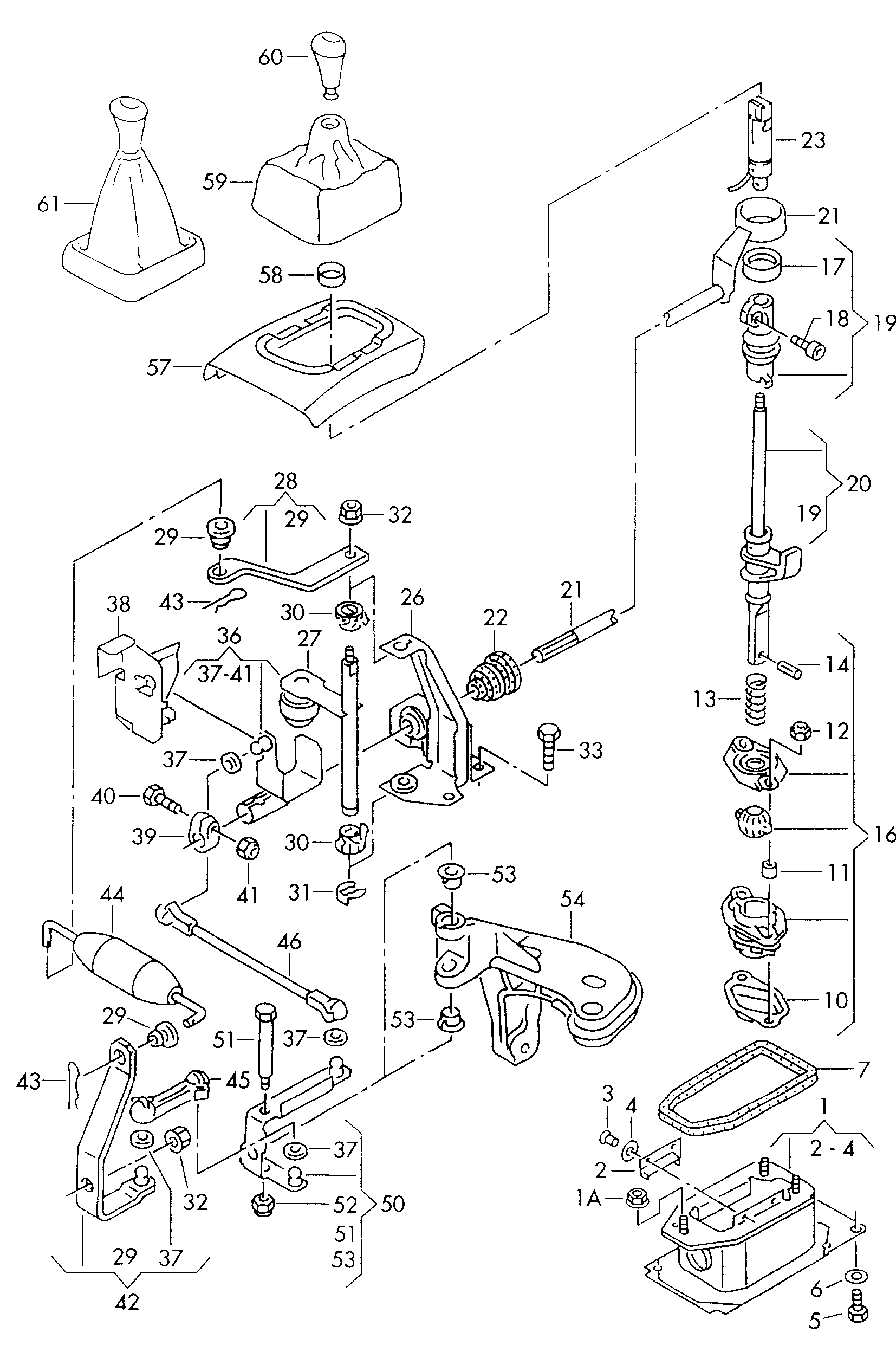

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Black	1H0 711 115 A C 22
	black/red EDITION,AUTO MOTORSPORT	1H0 711 118 K D YH
	Black	1H0 711 118 L 1 BX
	Black	1H0 711 118 H 1 BX
	beaver CHRISTMAS	1H0 711 118 E S 27
	flint GOLF JOKER,"A..":RABBIT IV	1H0 711 118 E X 33
	Black	1H0 711 118 E 1 BX
	brown	3A0 711 141 P 80
	Satin black	1H0 711 141 A 0 1C
	mauritius blue	1E0 711 115 H 70
	light beige	1E0 711 115 R 08
	Black	1E0 711 115 1 BX
	flint	1H0 711 115 A Y 54
	Selector mechanism 1.8 ltr.2.0 Ltr. manualgearbox AAM,ADZ,ABSAGG,AKR,ABA 1.8 ltr.2.0 Ltr. ABAADZAKR	—
	soft blue SPORTEDITION	1H0 711 118 P G ZP
	tropical orange SPORTEDITION	1H0 711 118 P G ZN
	flint BON JOVI,	1H0 711 118 P F LJ
	black/blue BON JOVI	1H0 711 118 P F GE
	black/red BON JOVI	1H0 711 118 P F FU
	Black COLOUR-CONCEPT,AREZZO	1H0 711 118 M 1 BX
	Yellow/black COLOUR-CONCEPT	1H0 711 118 M U 69
	red/black COLOUR-CONCEPT	1H0 711 118 M M 29
	Green/black COLOUR-CONCEPT	1H0 711 118 M J 59
	Blue/black COLOUR-CONCEPT	1H0 711 118 M F 89
	black/green EDITION	1H0 711 118 K J AC
	black/yellow EDITION	1H0 711 118 K D YU
	black/blue EDITION	1H0 711 118 K D YN
-	hexagon nut, self-locking M 8 M 8	N 902 920 01
(1)	Selector housing	1H0 711 061 D
(21)	selector shaft	1H0 711 155 A
(58)	Clamping ring HIGHLINE	357 711 687
(59)	Gearshift lever trim (leather) HIGHLINECLASSIC--EDITION	1E0 711 115
(60)	gearstick knob (wood) 1-5,R HIGHLINECLASSIC--EDITION 1-5,R	3A0 711 141
(61)	gearstick knob with boot forgearstick lever (leather)	1H0 711 118 P
(61)	gearstick knob with boot forgearstick lever (leather) 1-5,R PINK FLOYD 1-5,R	1H0 711 118 H
(61)	gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R	1H0 711 118 K
(61)	gearstick knob with boot forgearstick lever (leather) 1-5,R ROLLING-STONES 1-5,R	1H0 711 118 L
(61)	gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R	1H0 711 118 M
10	Underlay	861 711 193
11	spacer bush	861 711 555
12	hexagon nut, self-locking M 6 M 6	N 011 183 11
12	hexagon nut, self-locking M 6 M 6	N 011 183 12
13	Pressure spring	431 711 197
14	Spring pin 5 X 16 5 X 16	N 043 314 1
16	Repair kit for gearstick	191 798 116 A
17	Intermediate ring	191 711 238 B
18	Locating bolt M 5 X 6,7 X 11 M 5 X 6,7 X 11	N 905 075 01
19	adjusting eccentric	191 711 073 A
2	Guide	191 711 146 C
20	gearshift lever	1H0 711 116 A
22	bearing ring	191 711 190 B
22	bearing ring	191 711 190 A
26	Bracket contains: 191 711 208 A 191 711 208 A	1H0 711 083
27	Deviating shaft	1H0 711 173
28	intermediate lever	191 711 204 A
29	Bearing bush	171 711 181
3	Pop rivet also use: A 4 X 9 X 8 X 1,2 N 011 522 7 A 4 X 9 X 8 X 1,2 N 011 522 7	N 905 763 01
30	Bearing bush	191 711 067
31	Retaining washer 14 14	N 903 153 01
32	Hexagon collar nutself-locking M 8 M 8	N 909 083 01
33	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
36	selector lever	1H0 711 176 A
37	seal ring 18 X 6 X 4 18 X 6 X 4	171 711 965
38	Guard plate	1H0 711 081
39	Clamp	1J0 711 603
39	Clamp	1H0 711 603
4	Washer A 4,3 X 9 X 0,8 A 4,3 X 9 X 0,8	N 011 522 7
40	Hexagon bolt M 8 X 40 M 8 X 40	N 010 340 4
41	Hexagon collar nutself-locking M 8 M 8	N 902 002 01
42	gearshift lever	1H0 711 051
43	securing spring F >> 1 E-R-014 500*	171 711 561
44	selector shaft	1H0 711 183
45	selector rod -2- -2-	1H0 711 595
46	selector rod -1- -1-	1H0 711 574
5	Hex collared bolt M 8 X 20 M 8 X 20	N 101 559 01
5	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 6
50	repair kit for relaylever	1H0 798 201
51	Locating bolt	191 711 199
52	Hexagon collar nutself-locking M 8 M 8	N 902 264 03
52	hexagon nut, self-locking BM 8 BM 8	N 902 891 01
53	Bearing bush	191 711 590 A
54	Console see illustration: 199-020 199-020	—
57	Trim for gear selector see illustration: 863-060 863-060	—
58	Clamping sleeve	1H0 711 693
59	Gearshift lever trim(leatherette)	1H0 711 115 A
6	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
6	Washer A 8,4 A 8,4	N 011 525 13
60	gearstick knob 1-5,R 1-5,R	1H0 711 141 A
61	gearstick knob with boot forgearstick lever (leather) 1-5,R 1-5,R	1H0 711 118 E
7	Seal	357 713 075
