Selector mechanism — Mk3 Golf Pedals (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Selector mechanism

Generation: Mk3 1994 - 1997 (RDW) Group: Pedals Parts: 81 Primary OEM: 1H0 711 118 M 1 BX, 1H0 711 115 D 1 BX, 1H0 711 115 B B 41

Selector mechanism for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 711024 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 79 OEM part numbers across 81 catalogued positions including 1H0 711 118 M 1 BX, 1H0 711 115 D 1 BX and 1H0 711 115 B B 41. Parts on this plate carry the engine codes AFN, AHU and ALE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 79 OEM part numbers across 81 numbered positions.

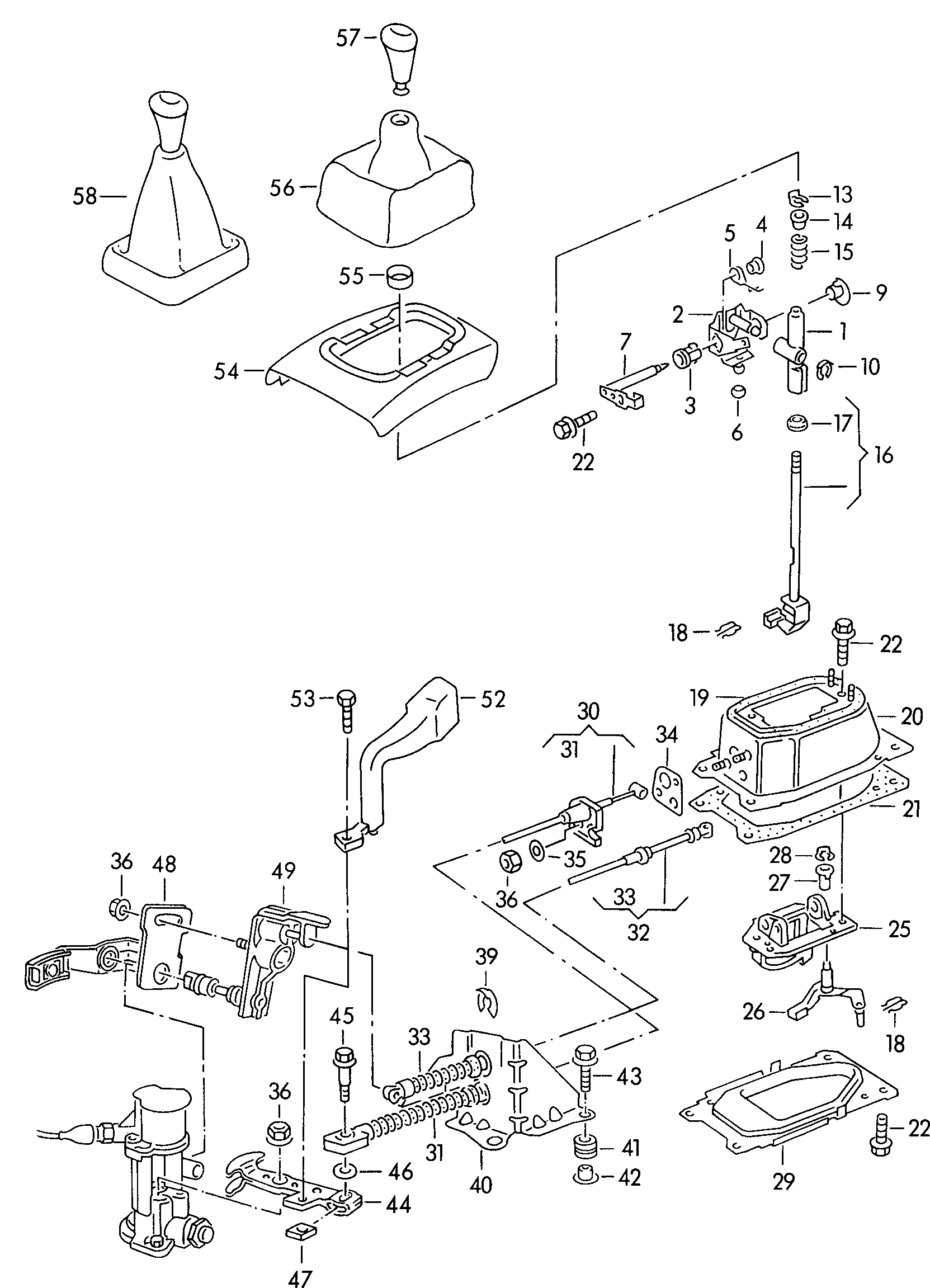

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Black COLOUR-CONCEPT,AREZZO
 1H0 711 118 M 1 BX
Black
 1H0 711 115 D 1 BX
Satin black
 1H0 711 115 B B 41
black/red
 1H0 711 115 E F GB
Black
 1H0 711 115 A C 22
Satin black
 1H0 711 141 A 0 1C
mogano
 1H0 711 141 G D MN
silver/black
 1H0 711 141 J 3 ZS
beaver
 1H0 711 118 E S 27
black/red EDITION,MATCH,
 1H0 711 118 K D YH
black/blue EDITION
 1H0 711 118 K D YN
Selector mechanism 1.9 ltr. manualgearbox 1 Z,AHU,ALE,AFN
1.9 ltr.
AFNAHUALE
—
black/yellow EDITION
 1H0 711 118 K D YU
black/green EDITION
 1H0 711 118 K J AC
Blue/black COLOUR-CONCEPT
 1H0 711 118 M F 89
Green/black COLOUR-CONCEPT
 1H0 711 118 M J 59
red/black COLOUR-CONCEPT
 1H0 711 118 M M 29
Black
 1H0 711 118 Q G LT
Yellow/black COLOUR-CONCEPT
 1H0 711 118 M U 69
flint
 1H0 711 118 P F LJ
black/red
 1H0 711 118 P F FU
black/blue
 1H0 711 118 P F GE
(55)
Clamping ring HIGHLINE
 357 711 687
(56)
Gearshift lever trim (leather) HIGHLINE
 1H0 711 115 D
(56)
Gearshift lever trim PR:E 2 U,E 4 T,GTI
 1H0 711 115 E
(57)
gearstick knob 1-5,R PR:E 4 T,E 2 U,GTI
1-5,R
 1H0 711 141 J
(57)
gearstick knob (wood) 1-5,R HIGHLINE
1-5,R
 1H0 711 141 G
(58)
gearstick knob with boot forgearstick lever (leather) OTMAR ALT
 1H0 711 118 Q
(58)
gearstick knob with boot forgearstick lever (leather) BON JOVI,
 1H0 711 118 P
(58)
gearstick knob with boot forgearstick lever (leather) 1-5,R
1-5,R
 1H0 711 118 K
(58)
gearstick knob with boot forgearstick lever (leather) 1-5,R
1-5,R
 1H0 711 118 M
1
selector lever guide
 357 711 055 C
1
selector lever guide
 357 711 055 D
10
Retaining washer 6 X 18 X 0,5
6 X 18 X 0,5
 N 908 159 03
13
Retaining washer 10 X 20,8 X 0,5
10 X 20,8 X 0,5
 N 905 793 01
14
bush
 357 711 217
15
Pressure spring
 431 711 197
16
gearshift lever
 357 711 112 C
17
Damper
 357 711 901 A
18
split pin 1,7 X 13,5
1,7 X 13,5
 N 905 301 01
19
Seal
 357 713 075
2
Selector housing also use: N 908 159 03
N 908 159 03
 357 711 156 B
2
Selector housing also use: N 905 792 01
N 905 792 01
 357 711 156 B
20
Selector housing
 3A0 711 061
21
Seal
 1H0 711 267
22
Hex collared bolt M 8 X 18
M 8 X 18
 N 019 538 2
25
bearing plate
 357 711 246
26
optional angle also use: N 908 159 03
N 908 159 03
 1J0 711 611 B
27
Bearing bush
 357 711 166 A
28
Retaining washer 6 X 18 X 0,5
6 X 18 X 0,5
 N 908 159 03
29
Cover
 3A0 711 091
3
Bearing bush
 357 711 590 B
30
Gear selector cable
 1H0 711 265
32
Selector cable
 1H0 711 266
34
Seal
 357 711 268 B
35
Rubber washer
 357 711 279
36
Hexagon collar nut M 8
M 8
 N 903 471 01
39
Retaining washer
 357 711 280
4
guide bush
 357 711 124 A
40
abutment
 357 711 789 C
41
Grommet
 357 711 798
42
Distance piece
 357 711 795
43
hexagon head bolt (combi) M 8 X 32
M 8 X 32
 N 101 069 02
44
gearshift lever
 1H0 711 051 B
45
bolt, hex. hd. with shoulderand shaft M 8 X 32
M 8 X 32
 357 711 234
46
Washer 8,4 X 21 X 4
8,4 X 21 X 4
 N 015 401 3
47
nut, square M 8
M 8
 N 904 294 01
48
relay lever
 1H0 711 202 A
49
Follower
 1J0 711 256
5
Leg spring
 357 711 145 B
52
Balance weight
 1H0 711 188 B
53
Hex collared bolt M 8 X 20
M 8 X 20
 N 100 632 02
54
Trim for gear selector see illustration: 863-060
863-060
 —
55
Clamping sleeve
 1H0 711 693
56
Gearshift lever trim
 1H0 711 115 B
56
Gearshift lever trim(leatherette)
 1H0 711 115 A
57
gearstick knob 1-5,R
1-5,R
 1H0 711 141 A
58
gearstick knob with boot forgearstick lever (leather) 1-5,R
1-5,R
 1H0 711 118 E
6
Cap
 357 711 164
7
bearing pin
 357 711 197 A
9
Bearing bush
 357 711 590 C
