Body — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Body

Generation: Mk3 1997 (RDW) Group: Front body Parts: 7 Primary OEM: 1H2 819 430 A, 1H6 800 403 A, 1H6 800 403

Body for the Volkswagen Golf Mk3 (1997): factory exploded diagram 800000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 7 OEM part numbers including 1H2 819 430 A, 1H6 800 403 A and 1H6 800 403. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 7 OEM part numbers across 7 numbered positions.

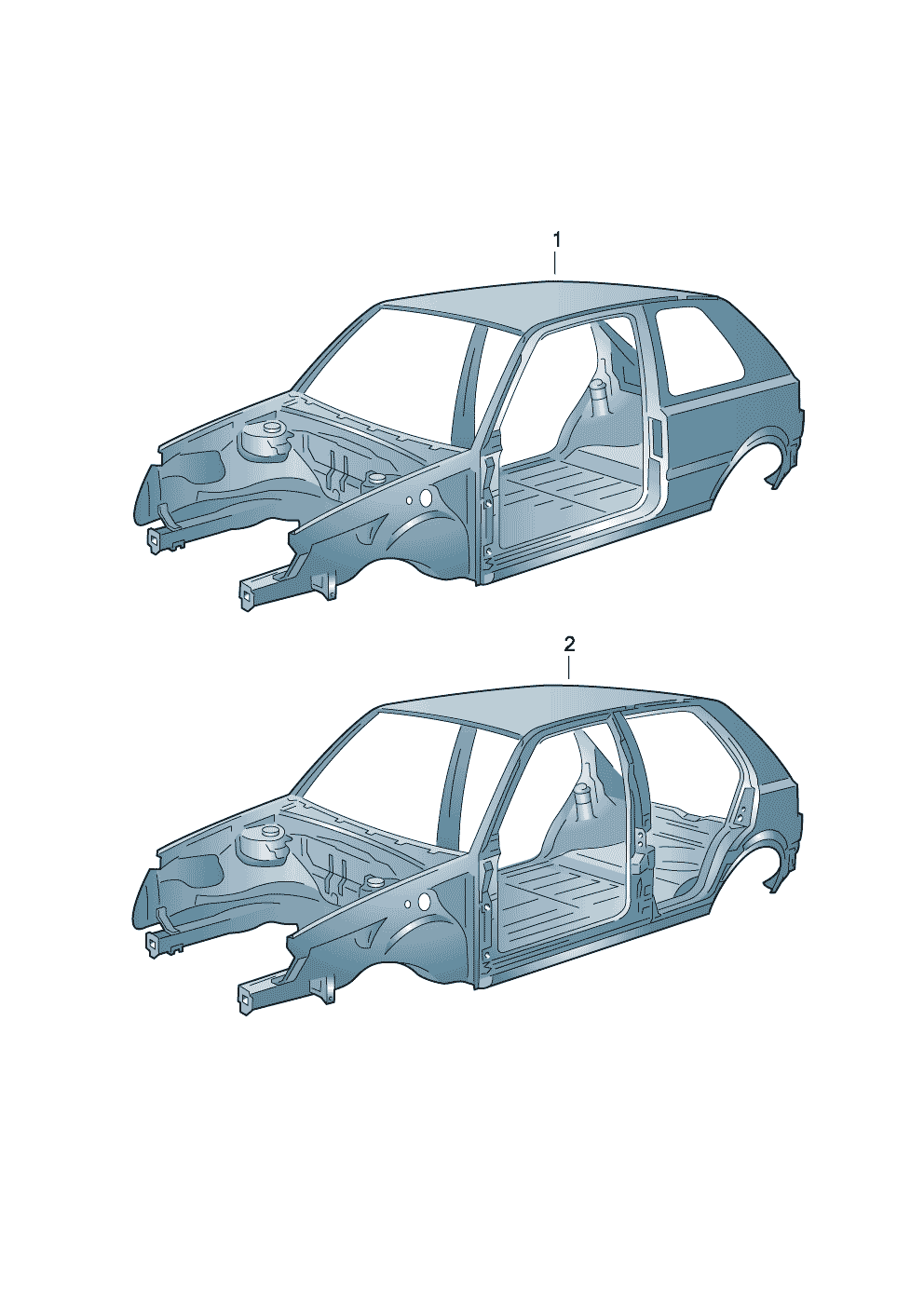

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Coverfor:Fresh air duct 110 X 140 110 X 140	1H2 819 430 A
(1)	Bodyfor vehicles with sliding roof also use: 1 H 2 819 430 A 1 H 2 819 430 A	1H6 800 403 A
(1)	Body also use: 1 H 2 819 430 A 1 H 2 819 430 A	1H6 800 403
(1)	Bodywork primed, withoutlids, doors and wingsfor vehicles with sliding roof	1H6 800 701 AD
(2)	Bodywork primed, withoutlids, doors and wingsfor vehicles with sliding roof	1H6 800 701 AF
1	Bodywork primed, withoutlids, doors and wings	1H6 800 701 AC
2	Bodywork primed, withoutlids, doors and wings	1H6 800 701 AE
