Sectional parts side section jetta — Mk3 Golf Front Body (1993 - 1996)

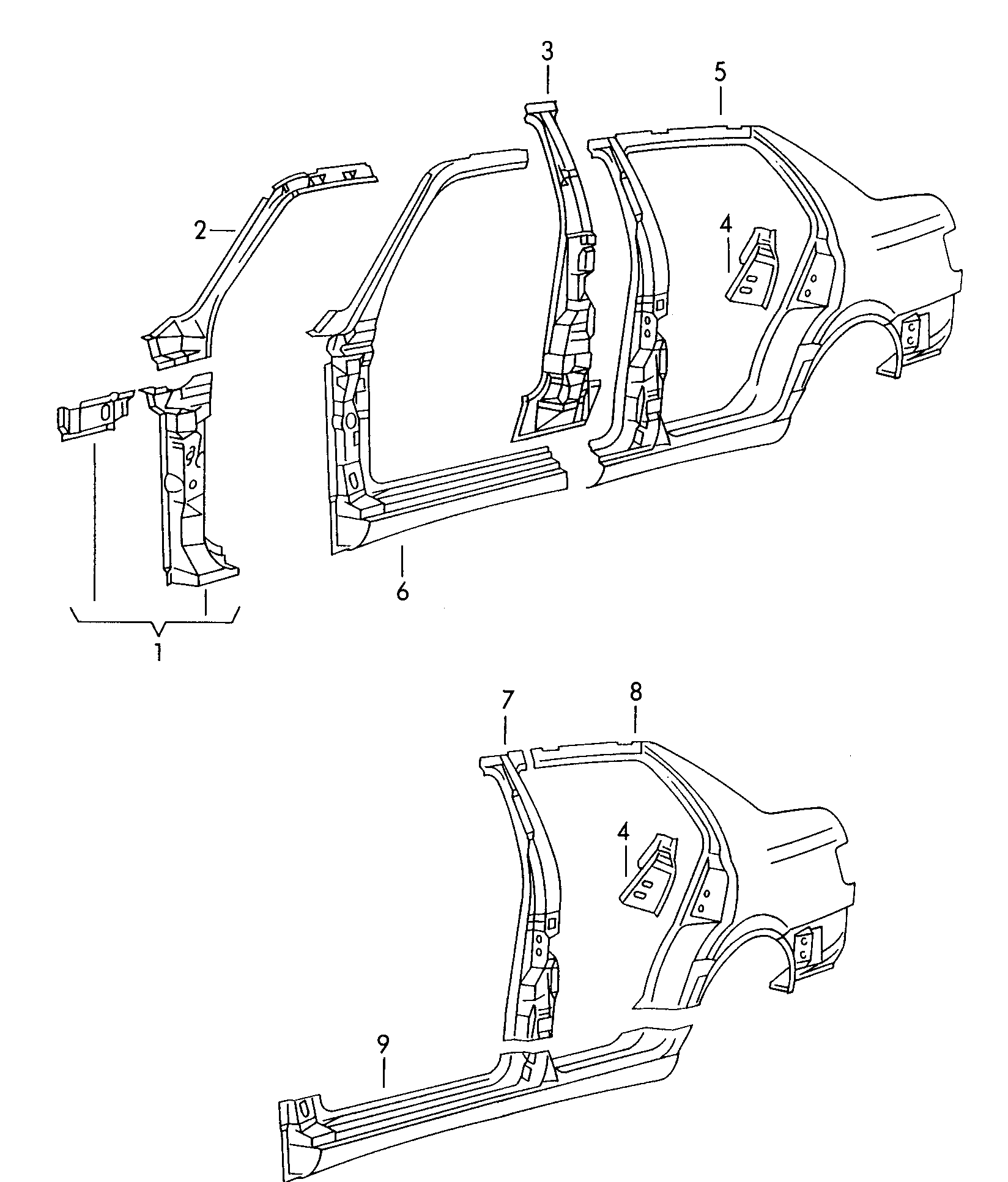

Factory title: Volkswagen Golf (1993 - 1996) - Side part
Sectional parts side section jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 809080 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 20 OEM part numbers across 21 catalogued positions including 1H0 809 206, 1HM 809 438 and 1HM 809 608 D. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 20 OEM part numbers across 21 numbered positions.
| № | Description | Part number |
|---|---|---|
| Sectional parts for theside section JETTA | — | |
| (1) | a-pillar | 1H0 809 206 |
| (2) | side panel, inner | 1HM 809 438 |
| (3) | Reinforcement for B-pillar | 1HM 809 608 D |
| (4) | Reinforcement for C-pillarfor cotter pin | 1H6 809 612 |
| (4) | Reinforcement for C-pillarfor cotter pin | 1H6 809 611 |
| (5) | Side part also use: 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 "USA","CDN" 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 | 1HM 809 604 H |
| (5) | Side part also use: 1 H 6 809 6111 HM 807 393 A 357 853 586 BN 038 550 1 1 H 6 809 6111 HM 807 393 A 357 853 586 BN 038 550 1 | 1HM 809 605 AD |
| (5) | Side part also use: 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 | 1HM 809 604 H |
| (6) | Side part 4 PTAS | 1HM 809 604 F |
| (6) | Side part 2 PTAS | 1HM 809 604 E |
| (7) | Side part | 1HM 809 604 H |
| (8) | Side part also use: also use: >>1 H-T-019917 >>1 H-T-0008541 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 "USA","CDN" >>1 H-T-019917 >>1 H-T-0008541 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 | 1HM 809 604 H |
| (8) | Side part also use: 1 H 6 809 6111 HM 807 393 A 357 853 586 BN 038 550 1 1 H 6 809 6111 HM 807 393 A 357 853 586 BN 038 550 1 | 1HM 809 605 AD |
| (9) | Side part also use: 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 | 1HM 809 604 H |
| 1 | a-pillar | 1H0 809 205 |
| 2 | side panel, inner | 1HM 809 437 |
| 3 | Reinforcement for B-pillar | 1HM 809 607 D |
| 6 | Side part | 1HM 809 605 AD |
| 7 | Side part | 1HM 809 605 AD |
| 9 | Side part | 1HM 809 605 AD |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Factory group
- 25 Front body
- Factory subgroup
- 809080
