Side part jetta — Mk3 Golf Front Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Side part

Generation: Mk3 1993 - 1996 (MEX) Group: Front body Parts: 49 Primary OEM: 1H0 809 905 A, N 902 316 01, 333 971 904 A

Side part jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 809050 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 48 OEM part numbers across 49 catalogued positions including 1H0 809 905 A, N 902 316 01 and 333 971 904 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 48 OEM part numbers across 49 numbered positions.

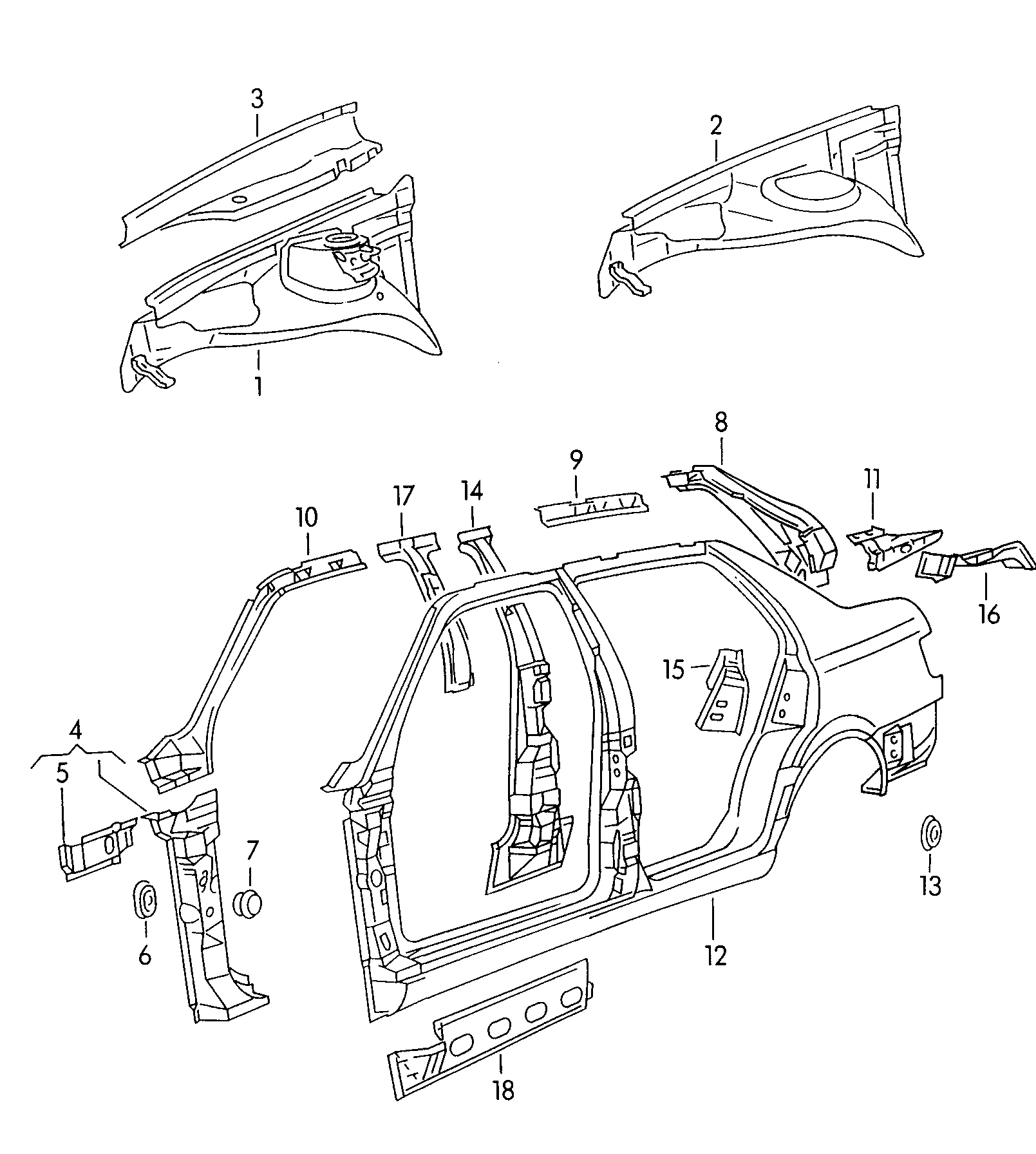

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Side part JETTA	—
-	Fuel filler flap F 1 H-T-019 918>>F 1 H-T-000 855>>* "USA","CDN"	1H0 809 905 A
-	weld pin'order unit 100' 5 X 25 5 X 25	N 902 316 01
-	Bungs 22,5/38,5 22,5/38,5	333 971 904 A
-	Bungs 30 X 20 X 16 30 X 20 X 16	1H0 971 908 E
-	Brace for wheel housing	1H0 810 091
-	Brace for wheel housing	1H0 810 113
-	Brace for wheel housing	1H0 810 114 A
-	Brace for wheel housing F >> 1 H-R-004 214*	1H0 810 114
-	Brace for wheel housing F 1 H-R-004 215>>*	1H0 810 114 A
(1)	Wheel housing also use:For vehicles without anti-lock braking system 1 H 0 971 908 E 1 H 0 971 908 E	1HM 809 104 B
(1)	Wheel housing also use:For vehicles without anti-lock braking system 1 H 0 971 908 E 1 H 0 971 908 E	1HM 809 103 B
(10)	side panel, inner	1HM 809 438
(11)	Connecting plate	1H5 809 440
(12)	Side part also use: 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1 1 H 0 809 905 A 1 H 6 809 6121 HM 807 394 A 357 853 586 BN 038 550 1	1HM 809 604 H
(12)	Side part F 1 H-T-019 918>> "USA","CDN"	1HM 809 604 H
(12)	Side part F >> 1 H-T-019 917 also use: 1 H 0 809 905 A "USA","CDN" 1 H 0 809 905 A	1H5 809 606 G
(12)	Side part also use: 1 H 6 809 6111 HM 807 393 A 357 853 586 BN 038 550 1 1 H 6 809 6111 HM 807 393 A 357 853 586 BN 038 550 1	1HM 809 605 AD
(14)	Reinforcement for B-pillar	1HM 809 608 D
(15)	Reinforcement for C-pillarfor cotter pin F 1 H-T-000 001>>	1H6 809 611
(15)	Reinforcement for C-pillarfor cotter pin F >> 1 H-S-999 000	1H6 809 612
(15)	Reinforcement for C-pillarfor cotter pin F >> 1 H-S-999 000	1H5 809 612
(15)	Reinforcement for C-pillarfor cotter pin F 1 H-T-000 001>>	1H6 809 612
(16)	Sealing channel	1H5 809 642 C
(16)	Sealing channel	1H5 809 641 C
(17)	Reinforcement for safetybelt fastening Reinforcement for B-pillar	1HM 809 762 A
(18)	Web plate for side member	1H0 810 608 A
(18)	Web plate for side member	1H0 810 608
(3)	Side member for wheel housing	1HM 809 148
(4)	a-pillar	1H0 809 206
(5)	Insert plate for A-pillar	1H0 810 232
(8)	side panel, inner JETTA	1HM 809 404 D
(9)	side panel, inner	1HM 809 430
10	side panel, inner	1HM 809 437
11	Connecting plate	1H5 809 439 A
11	Connecting plate	1H5 809 439
13	Bungs 30 X 5,6 X 37 30 X 5,6 X 37	N 100 344 01
14	Reinforcement for B-pillar	1HM 809 607 D
15	Reinforcement for C-pillarfor cotter pin F >> 1 H-S-999 000	1H6 809 611
15	Reinforcement for C-pillarfor cotter pin F >> 1 H-S-999 000	1H5 809 611
17	Reinforcement for safetybelt fastening Reinforcement for B-pillar	1HM 809 761 A
18	Web plate for side member	1H0 810 607 A
18	Web plate for side member	1H0 810 607
3	Side member for wheel housing	1HM 809 147
4	a-pillar	1H0 809 205
5	Insert plate for A-pillar	1H0 810 231
7	Bungs 19,5 19,5	191 971 908 B
8	side panel, inner JETTA	1HM 809 403 D
9	side panel, inner	1HM 809 429
