Which VW part numbers are on the bumper rear diagram for the Mk3 Golf?

This diagram lists 34 OEM part numbers for the Mk3 Golf. The first three are 1HM 807 417 J G RU, 1HM 807 449 G RU and 867 807 449 2 BC.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Bumper rear — Mk3 Golf Front Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Bumper

Generation: Mk3 1993 - 1996 (MEX) Group: Front body Parts: 34 Primary OEM: 1HM 807 417 J G RU, 1HM 807 449 G RU, 867 807 449 2 BC

Bumper rear for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 807050 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 34 OEM part numbers including 1HM 807 417 J G RU, 1HM 807 449 G RU and 867 807 449 2 BC. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 34 OEM part numbers across 34 numbered positions.

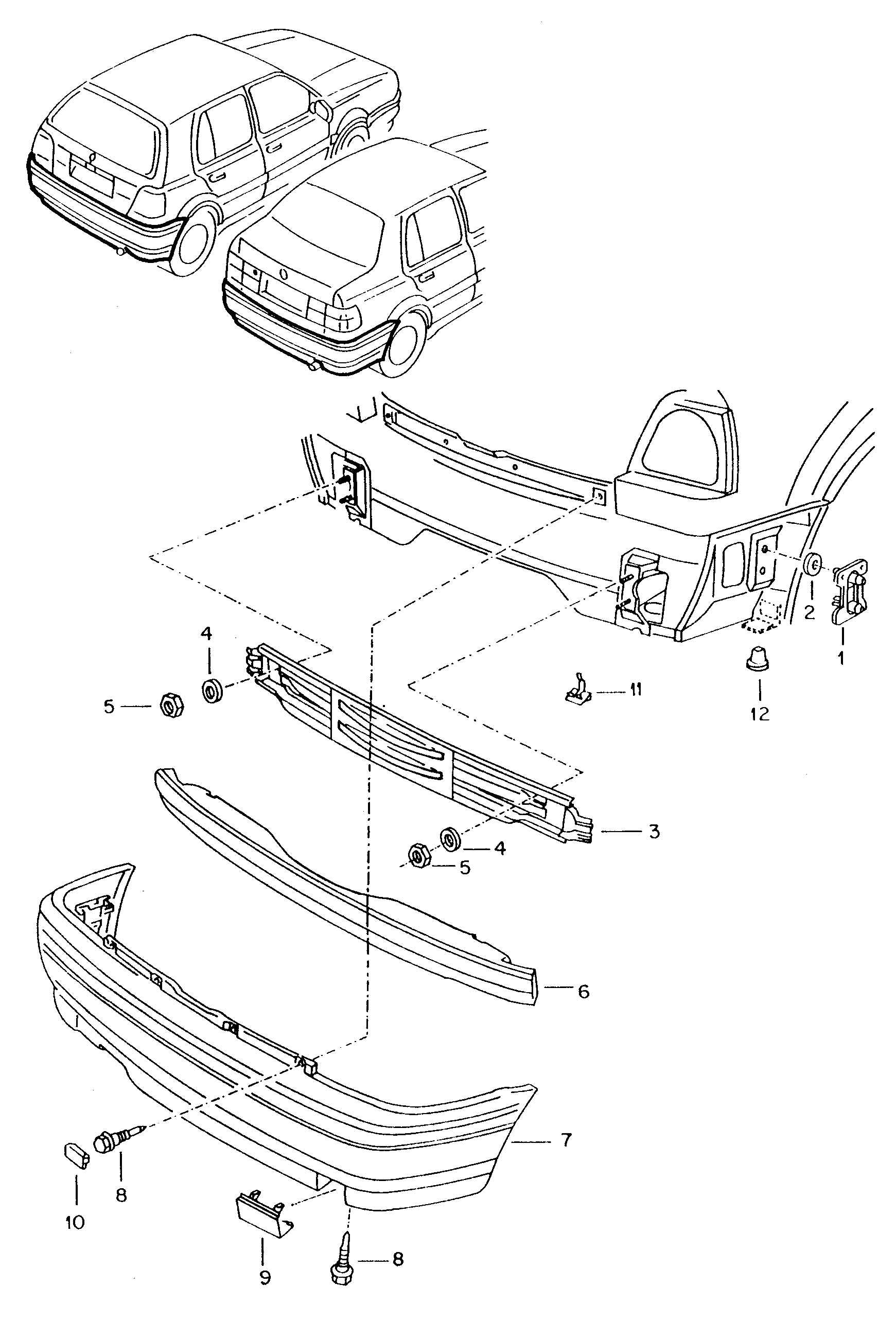

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	primed	1HM 807 417 J G RU
	primed	1HM 807 449 G RU
	graphite	867 807 449 2 BC
	Satin black	1HM 807 441 B 41
	primed	1HM 807 417 H G RU
-	Spreader rivet 8 X 11 8 X 11	N 038 550 1
-	Support Bumper cover F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"JETTA	1HM 807 393 A
-	Support Bumper cover F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"JETTA	1HM 807 394 A
-	Grommet	357 853 586 B
(10)	Cover cap F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"	1HM 807 449
(3)	Cross member F >> 1 H-N-999 000 JETTA	1HM 807 305 A
(3)	Cross member F >> 1 H-N-999 000 also use: 1 HM 807 431 C JETTA 1 HM 807 431 C	1HM 807 305 C
(3)	Cross member F >> 1 H-N-999 000 also use: 1 HM 807 431 B GOLF 1 HM 807 431 B	1HM 807 305 B
(3)	Cross member F >> 1 H-N-999 000 GOLF	1HM 807 305
(3)	Cross member F 1 H-P-000 001>> JETTA	1HM 807 305 C
(6)	Formed part also use: 1 HM 807 305 C JETTA 1 HM 807 305 C	1HM 807 431 C
(7)	Bumper cover F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"GOLF	1HM 807 417 H
(7)	1 set bumpercovers F >> 1 H-P-060 214F >> 1 H-P-006 272 "USA","CDN"JETTA	1HM 898 217 A
(7)	1 set bumpercovers F >> 1 H-P-014 214F >> 1 H-P-006 272 "USA","CDN"GOLF	1HM 898 217
(7)	Bumper cover F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"JETTA	1HM 807 417 J
1	holder for bumpercover	165 807 193 A
1	holder for bumpercover	165 807 193 A
10	Cover cap F >> 1 H-P-014 214F >> 1 H-P-006 272 "USA","CDN"	867 807 449
10	Cover cap F >> 1 H-P-006 272*	867 807 449
11	Retaining clip F 1 H-S-004 012>>F 1 H-R-020 065>> 24 X 20 X 11 JETTA"USA","CDN"GOLF 24 X 20 X 11	1H0 807 435
12	insert nut JETTA	811 807 577 C
2	Rubber washer 15 X 29 X 2,6 15 X 29 X 2,6	N 901 742 01
3	Cross member F 1 H-P-000 001>> GOLF	1HM 807 305 B
4	Washer 8,4 X 24 X 2 8,4 X 24 X 2	N 011 670 26
5	Hexagon nut M 8 M 8	N 011 008 40
5	Hexagon nut M 8 M 8	N 011 008 18
6	Formed part also use: 1 HM 807 305 B GOLF 1 HM 807 305 B	1HM 807 431 B
8	Hex collared bolt M 6 X 27 M 6 X 27	867 807 199
9	Cover cap Tow hitch GOLF	1HM 807 441

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 25 Front body
Factory subgroup: 807050
