Bodywork front part — Mk3 Golf Front Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Bodywork front part

Generation: Mk3 1993 - 1996 (MEX) Group: Front body Parts: 18 Primary OEM: 1HM 805 551 C, N 905 426 03, 1HM 805 826

Bodywork front part for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 805000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 18 OEM part numbers including 1HM 805 551 C, N 905 426 03 and 1HM 805 826. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 18 OEM part numbers across 18 numbered positions.

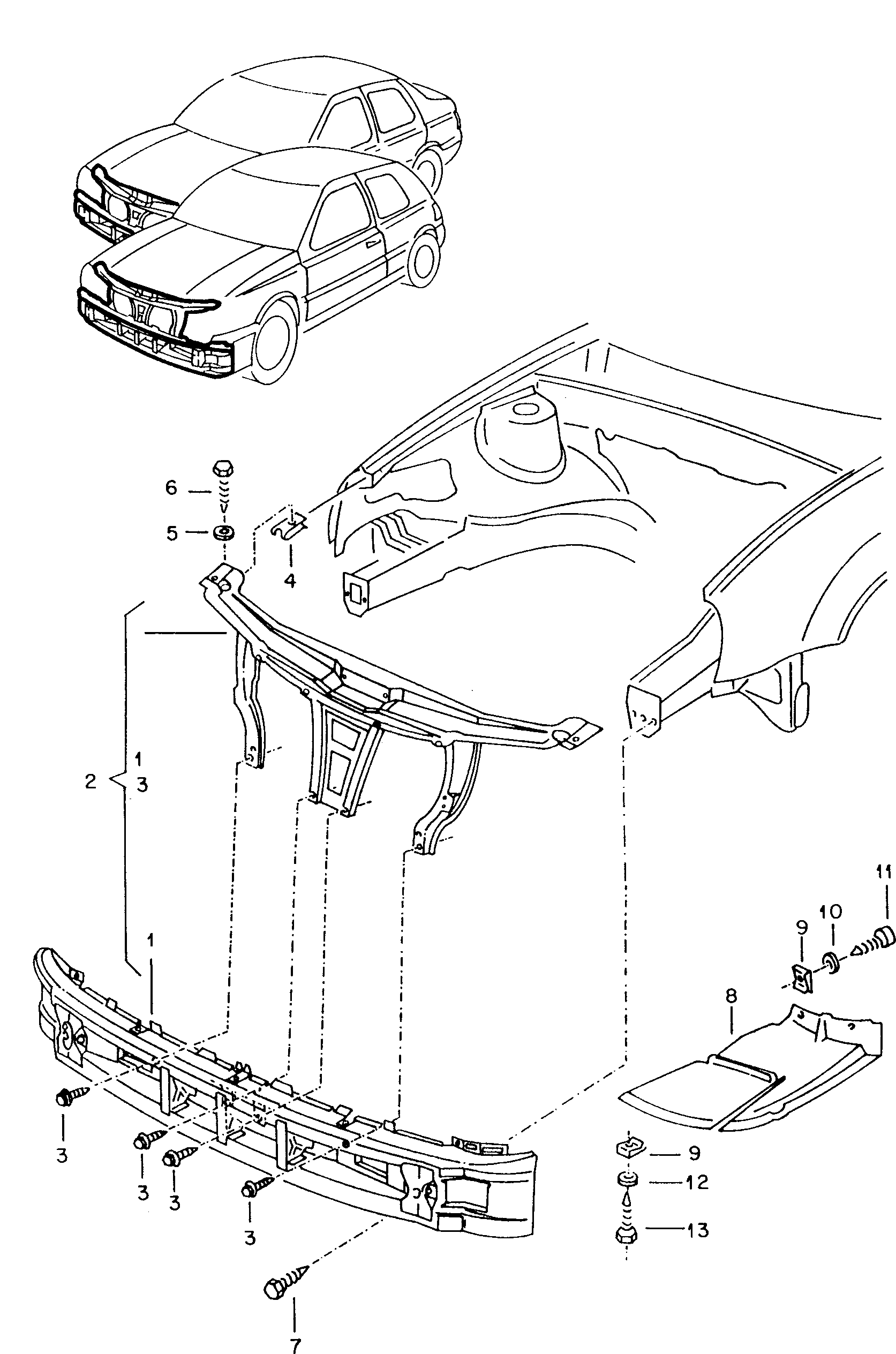

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(1)
Cross member F 1 H-R-069 164>>F 1 H-R-015 960>> "USA","CDN"
 1HM 805 551 C
(6)
hex. hd. self-tap bolt (combi)F 1 H-S-058 910>>*F 1 H-S-020 692>>* 6,6 X 19-D "USA","CDN"
6,6 X 19-D
 N 905 426 03
(8)
Air guide
 1HM 805 826
1
Cross member F >> 1 H-R-069 163 F >> 1 H-R-015 959 "USA","CDN"
 1HM 805 551 B
1
Cross member F >> 1 H-R-015 959
 1HM 805 551
10
Washer B 4,3 X 12 X 1
B 4,3 X 12 X 1
 N 011 664 4
11
oval head panel screw 4,2 X 16
4,2 X 16
 N 013 964 9
12
Washer B 4,3 X 12 X 1
B 4,3 X 12 X 1
 N 011 664 4
13
hexagon head panel screw 4,2 X 16
4,2 X 16
 N 013 882 1
2
Front frame
 1HM 805 591 H
3
Hexagon bolt M 8 X 16
M 8 X 16
 N 106 684 01
4
Speed nut 6,3 X 24,5 X 15
6,3 X 24,5 X 15
 N 015 449 1
5
Washer 6,4 X 17 X 1,6
6,4 X 17 X 1,6
 N 902 076 01
6
hexagon head panel screw 6,5 X 19
6,5 X 19
 N 015 946 1
7
Hex collared bolt M 8 X 20
M 8 X 20
 N 101 559 01
7
Hex collared bolt M 8 X 20
M 8 X 20
 N 101 559 06
8
Air guide
 1HM 805 825
9
Speed nut 4,2 X 16,3 X 11
4,2 X 16,3 X 11
 N 015 448 7

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1993 - 1996
Generation region
MEX
Generation code
128
Factory group
25 Front body
Factory subgroup
805000

Related factory diagrams

Other published front body plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the bodywork front part diagram for the Mk3 Golf?
This diagram lists 18 OEM part numbers for the Mk3 Golf. The first three are 1HM 805 551 C, N 905 426 03 and 1HM 805 826.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
