Sill trim strip radiator grilletrim licence — Mk3 Golf Front Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Moldings. Decorative trim. Protective strips

Generation: Mk3 1993 - 1996 (MEX) Group: Front body Parts: 182 Primary OEM: 1HM 853 687 AAG X2, 1HM 853 687 ABG X2, 165 853 675 A G X2

Sill trim strip radiator grilletrim licence for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 853030 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 182 OEM part numbers including 1HM 853 687 AAG X2, 1HM 853 687 ABG X2 and 165 853 675 A G X2. Parts on this plate carry the engine codes ADD and RA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 182 OEM part numbers across 182 numbered positions.

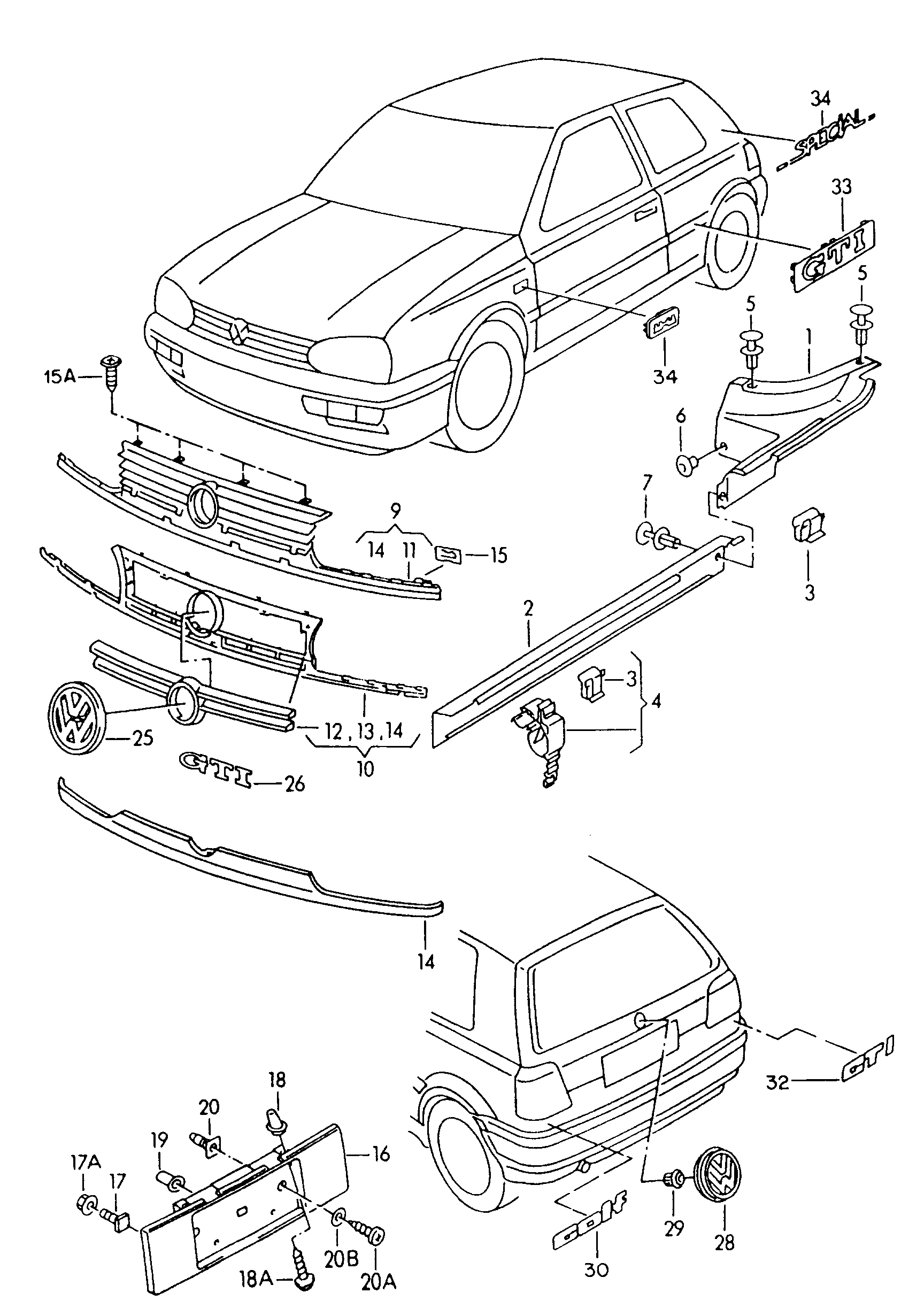

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black/chrome special	1HM 853 687 AAG X2
	inscription "USA","CDN"	1HM 853 687 ABG X2
	Satin black/chrome special	165 853 675 A G X2
	inscription	1HM 853 687 ABG X2
	green/silver grey	1HM 853 687 AFT A8
	Satin black/chrome special SBURG	1HM 853 687 ACG X2
	green/silver grey	1HM 853 687 AET A8
	chrome	1H5 853 687 R Z 10
	green/silver grey	1HM 853 687 AET A8
	Satin black/chrome special	1HM 853 675 H G X2
	Satin black/chrome special	1H6 853 679 G X2
	chrome	3A0 853 675 Z 10
	Satin black/tornado red	1HM 853 679 Q N5
	Satin black/chrome special	1HM 853 687 M G X2
	chrome	1H6 853 679 F Z 10
	Satin black/tornado red	1HM 853 687 M Q N5
	satin black/chrom	1HM 853 679 J G X2
	Satin black/chrome special	1HM 853 675 E G X2
	chrome	1H5 853 630 D 7 39
	Satin black/chrome special	1HM 853 675 D G X2
	chrome	3A9 853 630 7 39
	Satin black/chrome special	1HM 853 675 C G X2
	Satin black/chrome special	1HM 853 675 B G X2
	Satin black/chrome special	1HM 853 675 A G X2
	Satin black	1H4 853 372 B B 41
	mauritius blue "USA","CDN"	1H4 853 372 B F 31
	mauritius blue	1H4 853 372 B F 31
	beaver "USA","CDN"	1H4 853 372 B T 21
	beaver	1H4 853 372 B T 21
	mauritius blue "USA","CDN"	1H3 853 373 B F 31
	mauritius blue	1H3 853 373 B F 31
	beaver "USA","CDN"	1H3 853 373 B T 21
	beaver	1H3 853 373 B T 21
	beaver	1H4 853 371 T 21
	Satin black	1E0 853 373 B 41
	red/black	1HM 853 675 L T D9
	Satin black	1H4 853 373 B B 41
	mauritius blue "CDN"	1H4 853 373 B F 31
	beaver	1H4 853 373 B T 21
	Satin black	1H3 853 374 B 41
	Satin black	1H4 853 371 B B 41
	mauritius blue	1H3 853 374 A F 31
	mauritius blue "USA","CDN"	1H4 853 371 B F 31
	mauritius blue "USA","CDN"	1H3 853 374 B F 31
	mauritius blue	1H3 853 374 B F 31
	beaver "USA","CDN"	1H3 853 374 B T 21
	beaver	1H3 853 374 B T 21
	mauritius blue	1H4 853 371 B F 31
	Satin black	1E0 853 374 B 41
	beaver "USA","CDN"	1H4 853 371 B T 21
	Satin black	1H4 853 374 A B 41
	mauritius blue "USA","CDN"	1H4 853 374 A F 31
	mauritius blue	1H4 853 374 A F 31
	beaver	1H4 853 371 B T 21
	Satin black	1H4 853 374 B B 41
	mauritius blue "CDN"	1H4 853 374 B F 31
	beaver	1H4 853 374 B T 21
	primed	357 853 688 E G RU
	Satin black/chrome special	1HM 853 714 E G X2
	Satin black/chrome special	1H0 853 714 G X2
	Satin black	1H0 867 199 0 1C
	red/silver grey	1HM 853 714 H S V8
	mauritius blue "CDN"	N 905 740 01F 31
	beaver	N 905 740 01T 21
	beaver	N 905 740 01T 21
	Satin black/tornado red	1HM 853 714 A Q N5
	Satin black 9,5 X 8 X 24 9,5 X 8 X 24	N 908 618 010 1C
	Satin black/chrome special	1HM 853 714 G X2
	mauritius blue	1H0 867 199 A H 21
	beaver	1H0 867 199 A T 21
	Satin black	1H0 867 199 A 0 1C
	primed	1HM 853 653 A G RU
	primed	1H5 853 653 C G RU
	primed	1H5 853 653 D G RU
	platinum	1HM 853 675 AHT G3
	primed	1H6 853 653 D G RU
	quartz	1HM 853 675 AGT E4
	primed	1H6 853 661 G RU
	primed	1H5 853 661 G RU
	graphite	1HM 853 675 AET E5
	mint	1HM 853 675 ADT D8
	Satin black	1HM 853 481 B 0 1C
	primer	1HM 853 481 D G RU
	primer	1HM 853 481 D G RU
	Satin black	1HM 853 481 C 3 FZ
	green/silver/red	1HM 853 675 ACT D6
	red/black	1HM 853 675 K T A6
	Satin black	1HM 853 675 J 4 AT
	silver	1HM 853 675 J 2 ZQ
	satin black/chrom	1HM 853 675 ANG X2
	satin black/chrom	1HM 853 675 AMG X2
	orient red	1HM 853 675 ALF JL
	high chrom	1HM 853 600 A T E1
-	Foam underlay(self-adhesive)trim for licence plate F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"GOLF	1HM 853 483 C
(1)	Sill trim strip	1H4 853 372 B
(1)	Sill trim strip	1H4 853 371 B
(11)	Radiator grille F 1 H-T-000 133>>F 1 H-T-000 001>> also use: 1 H 5 853 655 "USA","CDN"JETTA 1 H 5 853 655	1H5 853 653 D
(11)	Radiator grille GOLF	1HM 853 653 A
(11)	Radiator grille F >> 1 H-T-000 132 F >> 1 H-S-999 000 "USA","CDN"	1H5 853 653 C
(13)	retaining frame Radiator grille For vehicles with twinheadlights F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-018 220>>F 1 H-S-020 610>>F 1 H-T-003 850>> GOLF GT,GTIGTI VR 6"BR."+GOLF GTI,GLXGL"RA."+GOLF GTI,GLX"MEX"+GOLF SPORT RA	1H6 853 655 A
(13)	retaining frame F 1 H-T-000 133>>F 1 H-T-000 001>> "USA","CDN"JETTA	1H5 853 655
(14)	Trim F >> 1 H-T-000 132 F >> 1 H-S-999 000 "USA","CDN"JETTA	1H5 853 661
(14A)	cover for radiator grille F >> 1 H-S-999 000 JETTA+ ACC,ADD ADD	1HM 853 664 B
(14A)	cover for radiator grille F 1 H-T-000 001>> JETTA+ ADD	1HM 853 664 C
(16)	trim for licence plate F 1 H-P-014 215>>* "USA","CDN"	1HM 853 481 D
(16)	trim for licence plate F >> 1 H-P-006 272F >> 1 H-P-014 214 GOLF"USA","CDN"	1HM 853 481 B
(16)	trim for licence plate JETTA	1HM 853 481 C
(16)	trim for licence plate F 1 H-P-006 273>>* GOLF	1HM 853 481 D
(2)	Sill trim stripfor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H4 853 373 B
(2)	Sill trim stripfor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H3 853 373 B
(2)	Sill trim stripfor vehicles withthree-point automatic seatbelt with belt tensioner	1E0 853 373
(2)	Sill trim strip	1H3 853 374
(2)	Sill trim strip	1H3 853 374 A
(2)	Sill trim stripfor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H3 853 374 B
(2)	Sill trim stripfor vehicles withthree-point automatic seatbelt with belt tensioner	1E0 853 374
(2)	Sill trim strip	1H4 853 374 A
(2)	Sill trim stripfor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H4 853 374 B
(20A)	oval head panel screw 4,8 X 13 "USA","CDN" 4,8 X 13	N 013 968 1
(25)	VW emblem F 1 H-R-006 758>> 1 H-S-999 000 F 1 H-S-029 098>> 1 H-S-999 000 GOLF,SPORT,GTI; JETTA"USA","CDN""USA","CDN"GOLF GTGOLF GTI VR 6	1HM 853 600 A
(26)	inscription F 1 H-T-021 101>>F 1 H-T-000 001>> 'VR 6' "USA","CDN"JETTA GLX 'VR 6'	1HM 853 679 J
(26)	inscription F 1 H-S-023 574>>F 1 H-S-000 001>> 1 H-S-999 000 'VR 6' "USA","CDN"GOLF GTI VR 6 'VR 6'	1H6 853 679 F
(26)	inscription F 1 H-R-006 758>> 1 H-S-999 000 'GT' GOLF GT 'GT'	1H6 853 679
(28)	VW emblem JETTA	1H5 853 630 D
(28)	VW emblem F 1 H-T-036 275>>F 1 H-R-002 751>>F 1 H-S-020 610>>F 1 H-T-000 001>>F 1 H-T-000 835>>*F 1 H-T-001 232>>F 1 H-T-002 481>> "USA","CDN""BR."+ GOLFGTI,GLX,GL"RA."+GOLF GTI,GLXGOLF CL, GL,GTI,MANHATANGOLF CITYGOLF ATLANTA"MEX"+GOLF SPORT RA	3A9 853 630
(30)	inscription F >> 1 H-T-000 074 F 1 H-S-023 574>> 1 H-T-000 074 F 1 H-S-058 910>> 1 H-T-000 074 F 1 H-S-066 180>> 1 H-T-000 074 'GOLF III' "USA","CDN" 'GOLF III'	1HM 853 687 AB
(30)	inscription 'VENTO' "RCH"+ JETTA 'VENTO'	1H5 853 687 R
(30)	inscription F >> 0 H-T-000 074 'GOLF III' "USA,"CDN" 'GOLF III'	1HM 853 687 AB
(30)	inscription F 1 H-T-000 075>>F 1 H-T-080 629>> 'JETTA' JETTA CL,GL,GLS, CARAT,VR 6 CARAT,GLX, EUROPA"USA","CDN""USA","CDN"JETTA WOLF- 'JETTA'	1HM 853 687 AC
(32)	inscription 'VR 6' "USA","CDN" 'VR 6'	3A0 853 675
(32)	inscription F 1 H-R-006 758>> 1 H-S-999 000 'GT' GOLF GT 'GT'	1HM 853 675 E
(32)	Film lettering F 1 H-S-058 910>> 1 H-S-999 000 'GOLF CITY' "USA","CDN" 'GOLF CITY'	1HM 853 687 AE
(32)	Film lettering F 1 H-S-058 910>> 1 H-S-999 000 F 1 H-S-087 774>> 1 H-S-999 000 'JETTA CITY' "USA","CDN" 'JETTA CITY'	1HM 853 687 AF
(32)	inscription F >> 1 H-S-999 000 F 1 H-S-033 995>> 1 H-T-001 708 'CARAT' JETTA CARATJETTA VR 6 CARAT 'CARAT'	165 853 675 A
(32)	inscription F >> 1 H-S-999 000 'CL' "USA","CDN"GOLF CL 'CL'	1HM 853 675 A
(32)	inscription F 1 H-T-080 629>>F 1 H-S-021 240>>F >> 1 H-T-001 751 F 1 H-T-002 950>>* 'GL' GOLF GL"USA","CDN""USA","CDN""BR."+GOLF GLJETTA GL"RA."+GOLF GL 'GL' RA	1HM 853 675 B
(32)	inscription F >> 1 H-T-001 708 'GLS' JETTA GLSCARAT 'GLS'	1HM 853 675 C
(32)	inscription F 1 H-S-000 026>>F 1 H-S-018 220>>F 1 H-S-020 610>>F 1 H-T-001 709>> 'GLX' "USA","CDN""BR."+GOLF GLX"RA."+GOLF GLXJETTA GLS 'GLX' RA	1HM 853 675 D
(32)	Film lettering F 1 H-T-000 001>> 'GOLF CITY' GOLF CITY 'GOLF CITY'	1HM 853 687 AE
(32)	inscription F 1 H-S-023 574>>F 1 H-T-000 001>>F 1 H-R-002 751>>F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-020 610>> 'GTI' GOLF GTI"USA","CDN""USA","CDN""USA","CDN""BR."+GOLF GTI"MEX"+GOLF GTI VR 6"RA."+GOLF GTI 'GTI' RA	1HM 853 687 M
(32)	inscription 'GTI' "USA","CDN" 'GTI'	1HM 853 687 M
(32)	inscription F 1 H-S-000 001>> 1 H-S-999 000 F 1 H-S-000 001>> 'VR 6' "MEX"+GOLF GTI VR 6 JETTA VR 6 CARAT 'VR 6'	1HM 853 675 H
(32)	inscription F 1 H-T-012 514>> 'MI' "BR."+GOLF GL, GLX 'MI'	1HM 853 675 AL
(32)	inscription F 1 H-T-012 514>> '1.8' "BR."+GOLF GLX '1.8'	1HM 853 675 AM
(32)	inscription F 1 H-T-012 514>> '2.0' "BR."+GOLF GL '2.0'	1HM 853 675 AN
(32)	Film lettering F 1 H-R-020 273>> 1 H-S-999 000 'ANIVERSARY EDITION' GOLF GL 'ANIVERSARY EDITION'	1HM 853 675 J
(32)	Film lettering F 1 H-R-020 273>> 1 H-S-999 000 'SPORT EDITION' GOLF GT 'SPORT EDITION'	1HM 853 675 K
(32)	Film lettering F 1 H-S-021 191>> 'MANHATTAN' GOLFMANHATTAN 'MANHATTAN'	1HM 853 675 AC
(32)	Film lettering F 1 H-T-001 764>> 'EUROPA' JETTA GLeurope 'EUROPA'	1HM 853 675 AD
(32)	Film lettering F >> 1 H-T-126 855* 'TREK' "USA","CDN" 'TREK'	1HM 853 675 AE
(32)	Film lettering F 1 H-T-001 232>> 'ATLANTA' "MEX"+GOLF ATLANTA 'ATLANTA'	1HM 853 675 AG
(32)	Film lettering F 1 H-T-002 481>> 'SPORT' "MEX"+GOLF SPORT 'SPORT'	1HM 853 675 AH
(32)	Film lettering 'ATLANTA' JETTA CL 'ATLANTA'	1HM 853 675 AQ
(32)	Film lettering F 1 H-S-066 180>> 1 H-S-999 000 'CELEBRATION EDITION' "USA"+GOLF CELEBRATION EDIT.,JETTA CELE-BRATION EDIT 'CELEBRATION EDITION'	1HM 853 675 L
(33)	inscription 'GT' GOLF GT 'GT'	1H0 853 714
(33)	inscription 'GLI' 'GLI'	1HM 853 714
(33)	inscription 'GLS' JETTA GLS,CARAT 'GLS'	1HM 853 714 E
(33)	inscription 'GTI' GOLF GTI"USA","CDN" 'GTI'	1HM 853 714 H
(4)	Bracket Sill trim strip Wire set	1H0 971 003 A
(6)	press stud 24 X 9,5 X 8 24 X 9,5 X 8	N 908 618 01
1	Sill trim strip	1H4 853 371
12	Radiator grille For vehicles with twinheadlights GOLF GT,GTI;"BR.","RA."+GOLF;"MEX"+GOLF SPORT"USA","CDN" RA	1H6 853 653 D
14	Trim GOLF	1H6 853 661
14A	cover for radiator grille GOLF+ ACC,ADD ADD	1HM 853 664
15	Distance piece 44 X 18 X 1,3 44 X 18 X 1,3	1H0 853 865
15A	oval head panel screw 4,2 X 32 4,2 X 32	N 043 936 3
17	square head bolt M 5 X 14 X 11 JETTA M 5 X 14 X 11	N 905 287 01
17A	Hexagon collar nut M 5 M 5	171 857 026 A
18	expanding nut B 4,2 JETTA B 4,2	1H5 853 584
18A	oval head panel screw 4,8 X 16 JETTA 4,8 X 16	N 902 500 01
19	Grommet 11 X 14 X 19 JETTA 11 X 14 X 19	1H5 853 586
26	inscription F 1 H-T-000 001>> 'GTI' GOLF GTI"USA","CDN" 'GTI'	1HM 853 679
29	Spreader rivet F >> 1 H-S-078 850 F >> 1 H-S-040 325* "USA","CDN"	865 853 231 A
3	Clip	1H0 853 577
30	inscription F 1 H-R-002 751>>F 1 H-S-020 610>>F 1 H-T-000 075>> 'GOLF' GOLF CL, GL,GT, GTI, GTIVR 6, ANIVER-SARY EDIT.,SPORT EDIT.,MANHATTAN,CITY,ATLANTASPORT"BR."+ GOLFGTI,GLX,GL"RA."+ GOLFGTI,GLX,GL"USA","CDN" 'GOLF' RA	1HM 853 687 AA
31	Grommet	191 853 615 A
33	inscription 'GTI' GOLF GTI"USA","CDN" 'GTI'	1HM 853 714 A
34	Trim with emblem F >> 1 H-P-024 150* "USA","CDN"	357 853 688 E
34	Trim with emblem F >> 1 H-P-006 272*	1HM 853 688 A
5	Bungs 23 X 10,5 X 19 23 X 10,5 X 19	1H0 867 199
6	press stud 9,5 X 6 X 31 "USA","CDN" 9,5 X 6 X 31	N 905 740 01
6	press stud 9,5 X 6 X 31 9,5 X 6 X 31	N 905 740 01
7	Clip	1H0 867 199 A
