Which VW part numbers are on the bonnet diagram for the Mk3 Golf?

This diagram lists 47 OEM part numbers for the Mk3 Golf. The first three are 1H2 823 533 0 1C, 1H1 823 533 0 1C and 1H0 898 615.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Bonnet — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Bonnet

Generation: Mk3 1997 (RDW) Group: Front body Parts: 48 Primary OEM: 1H2 823 533 0 1C, 1H1 823 533 0 1C, 1H0 898 615

Bonnet for the Volkswagen Golf Mk3 (1997): factory exploded diagram 823010 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 47 OEM part numbers across 48 catalogued positions including 1H2 823 533 0 1C, 1H1 823 533 0 1C and 1H0 898 615. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 47 OEM part numbers across 48 numbered positions.

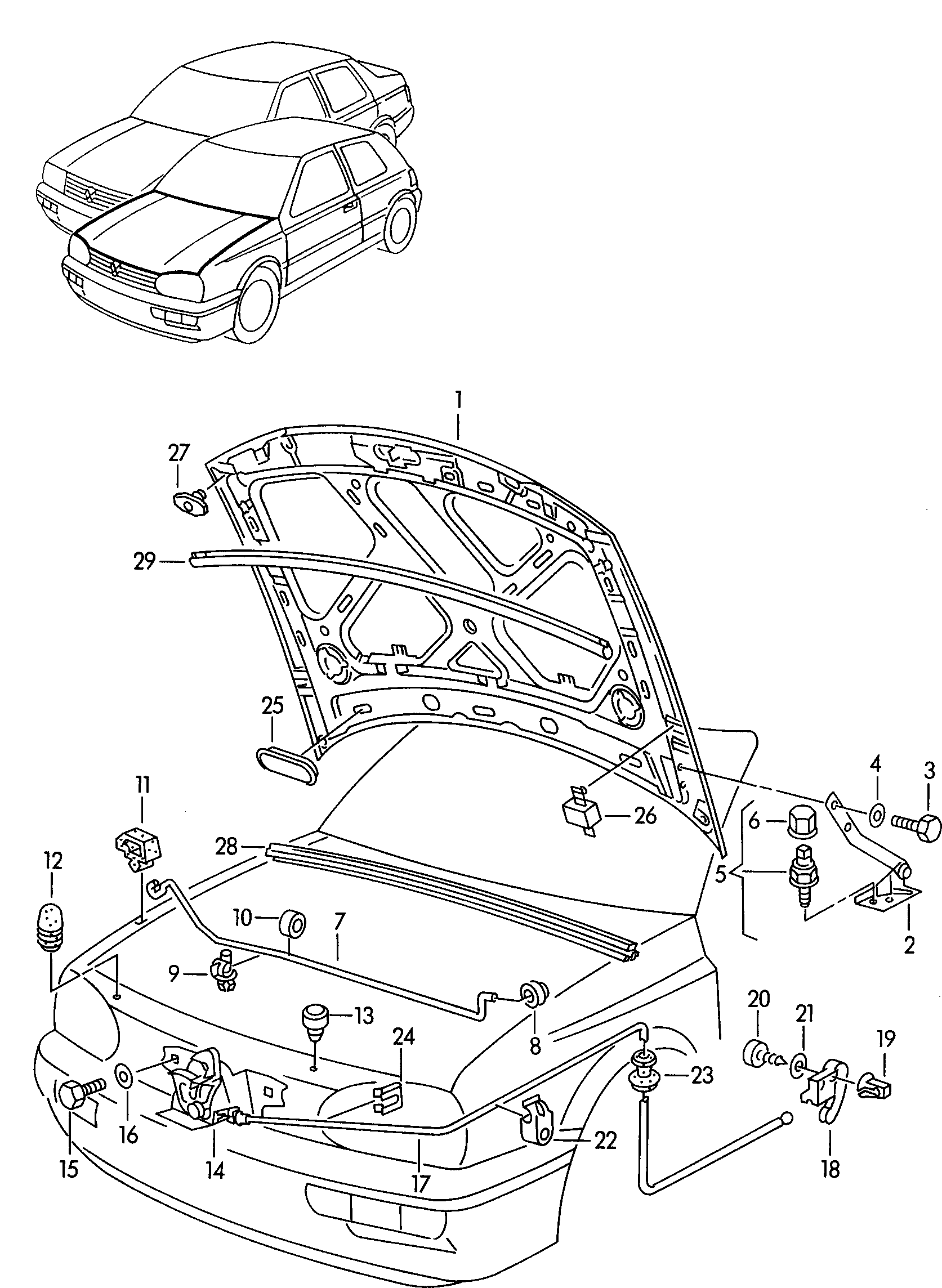

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H2 823 533 0 1C
	Satin black	1H1 823 533 0 1C
-	1 set attachment parts Bonnet	1H0 898 615
-	Locking fluid 10 ML 10 ML	D 185 400 A2
(1)	Bonnet use if required: 1 H 0 898 615 1 H 0 898 615	1H6 823 031 A
(15)	bolt, hex. hd. (combi.)self-locking M 6 X 16 MK M 6 X 16 MK	N 100 988 05
(15)	bolt, hex. hd. (combi.)self-locking M 6 X 16 M 6 X 16	N 908 204 01
(17)	Lid lock cable	1H2 823 535 C
(17)	Lid lock cable	1H2 823 531 C
(18)	Grip for lid lockcable	1H2 823 533
(2)	Lid hinge	1H0 823 302 A
(22)	Cable tie with holder for weld pin: 10 X 1875 10 X 1875	N 906 437 01
(22)	Cable tie with holder for weld pin: 10 X 1005 10 X 1005	N 906 333 01
(22)	Cable tie with holder for weld pin: 10 X 185/M 5 10 X 185/M 5	N 904 288 01
(24)	Cable holder	1H0 971 842
(28)	gasket for separator plate 1320 MM 1320 MM	1H0 823 723 A
(7)	Flap support KDW-WOLFSBURG CITY-STROMER KDW-WOLFSBURG	—
10	rubber ring	171 823 481 A
11	Guide piece	1H0 823 493
12	stop buffer, adjustable	1H0 823 500 B
13	Stop buffer	1H0 823 499
14	bonnet lock-lower part F >> 1 H-V-120 000*	1H0 823 509
14	bonnet lock-lower part	1H0 823 509 B
15	Hexagon bolt also use: M 6 X 16 D 185 400 A 2 M 6 X 16 D 185 400 A 2	N 010 287 3
16	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
17	Lid lock cable	1H1 823 531
18	Grip for lid lockcable	1H1 823 533
19	insert nut	811 807 577 C
19	expanding nut	357 809 966
2	Lid hinge	1H0 823 301 A
20	oval head panel screw 4,8 X 19 4,8 X 19	N 013 975 5
20	oval head panel screw B 4,8 X 19 B 4,8 X 19	N 013 975 11
21	Washer 5,5 5,5	N 011 540 2
22	Clip	191 823 567
23	Grommet	357 823 591
24	Clip	1H2 823 595
25	Bungs 65 X 16 MM 65 X 16 MM	171 827 200
26	Filler piece	1H0 823 713
27	Clip 17 X 5,5 X 8,6 MM 17 X 5,5 X 8,6 MM	1H0 823 717
29	gasket for flap	1H6 823 737
29	gasket for flap	1H6 823 707
3	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
4	Washer 8,4 X 24 X 2 8,4 X 24 X 2	N 011 670 16
5	stud with hex. hd. M 8 X 20/M 8 X 9 M 8 X 20/M 8 X 9	1H0 823 345
6	Cover cap	1H0 823 347
7	Flap support	1H0 823 363
8	Rubber bush 16/6,2 16/6,2	171 823 395
9	Clip	1H0 823 397

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 25 Front body
Factory subgroup: 823010

Related factory diagrams

Other published front body plates for the Mk3 Golf in this catalogue.

Bodywork front part 1993 - 1996 · subgroup 805000
Bumper rear 1993 - 1996 · subgroup 807050
Bumper front 1993 - 1996 · subgroup 807000
Sill trim strip radiator grilletrim licence 1993 - 1996 · subgroup 853030
Side part jetta 1993 - 1996 · subgroup 809050
Sectional parts side section jetta 1993 - 1996 · subgroup 809080
Body 1997 · subgroup 800000
Bodywork front part 1997 · subgroup 805000

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the bonnet diagram for the Mk3 Golf?: This diagram lists 47 OEM part numbers for the Mk3 Golf. The first three are 1H2 823 533 0 1C, 1H1 823 533 0 1C and 1H0 898 615.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
