Bumper front — Mk3 Golf Front Body (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Bumper

Generation: Mk3 1993 - 1996 (MEX) Group: Front body Parts: 43 Primary OEM: 1HM 853 678 A B 41, 161 867 299 0 1C, 1HM 805 903 B 41

Bumper front for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 807000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 41 OEM part numbers across 43 catalogued positions including 1HM 853 678 A B 41, 161 867 299 0 1C and 1HM 805 903 B 41. Parts on this plate carry the engine codes AAA, AAM, ACC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 41 OEM part numbers across 43 numbered positions.

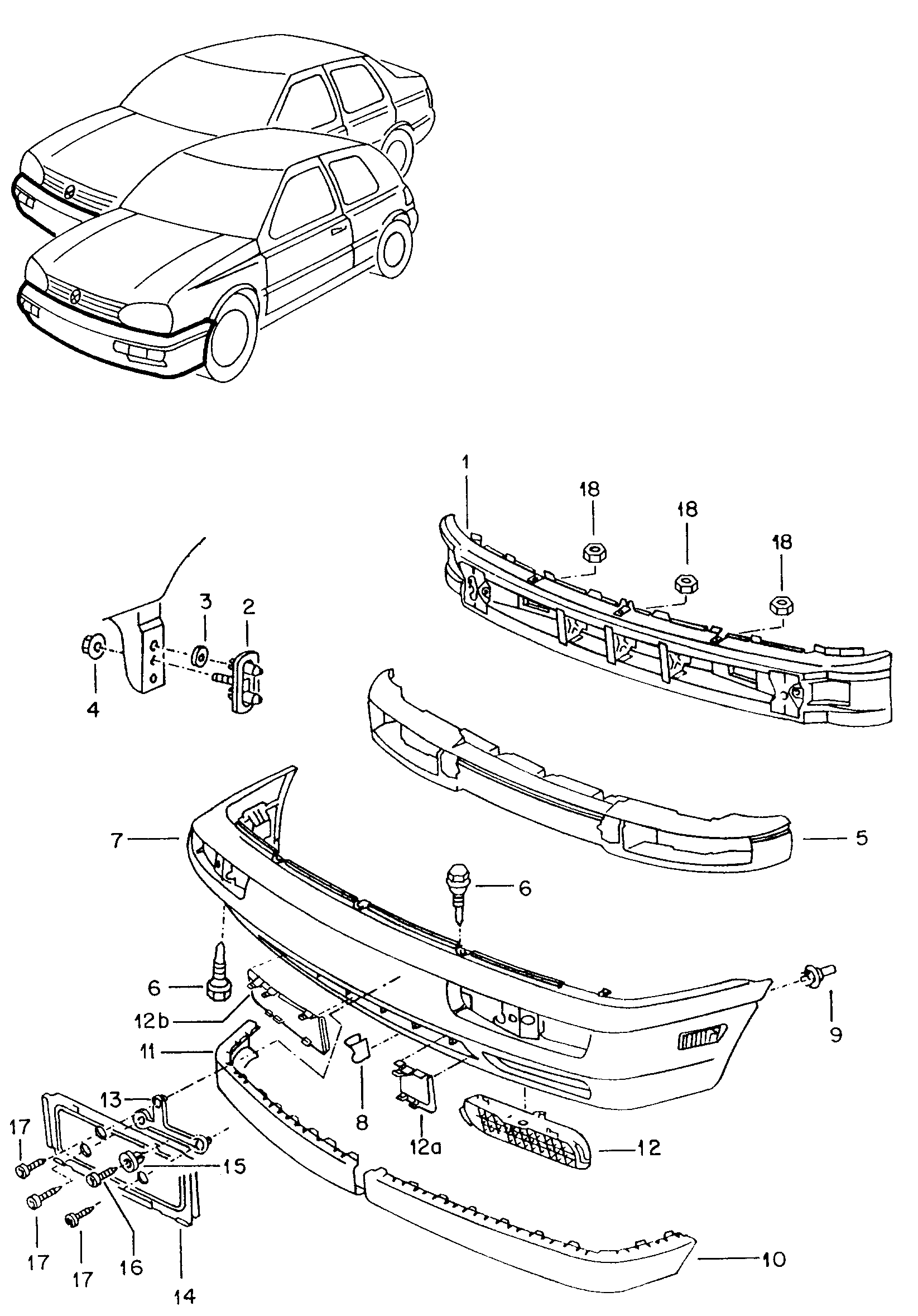

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1HM 853 678 A B 41
	Satin black	161 867 299 0 1C
	Satin black	1HM 805 903 B 41
	Satin black	1HM 807 245 0 1C
	Satin black	1HM 805 904 B 41
	primed	1HM 807 217 D G RU
	Satin black	1HM 853 666 0 1C
	Satin black	1HM 853 665 A 0 1C
	Satin black	1HM 853 678 B 41
	Satin black	1HM 853 677 B 41
-	Retaining plate Retainer for coverbumper	1H0 807 197
-	hexagon head panel screw F 1 H-P-000 001>> 6,8 X 12,5 6,8 X 12,5	N 903 103 01
-	Speed nut F 1 H-P-000 001>> 4,8 X 15 X 16,2 4,8 X 15 X 16,2	N 015 436 1
-	oval head panel screw F 1 H-P-000 001>> 4,8 X 16 4,8 X 16	N 013 969 21
(12)	Cover	1HM 853 666
(12B)	Cover	1HM 853 677
(14)	Licence plate holder F 1 H-P-000 001>>	1HM 807 997 C
(7)	Bumper cover F 1 H-P-014 215>>F 1 H-P-006 273>> "USA","CDN"GOLF,JETTA	1HM 807 217 D
(7)	1 set bumpercovers F >> 1 H-P-014 214F >> 1 H-P-006 272 "USA","CDN"GOLF	1HM 898 217
(7)	1 set bumpercovers F >> 1 H-P-014 214F >> 1 H-P-006 272 "USA","CDN"JETTA	1HM 898 217 A
1	see illustration: 805-000 805-000	—
10	Spoiler	1HM 805 903
11	Spoiler	1HM 805 904
12	Cover	1HM 853 665 A
12A	Coverfor vehicles with air condit. AAA,ACC,ADCADD"USA","CDN""USA","CDN" AAAACC	1HM 853 678 A
12B	Cover AAM,ACC,ADD AAMACCADD	1HM 853 678
13	Distance piece F >> 1 H-N-999 000	1HM 807 993
14	Licence plate holder F >> 1 H-N-999 000	191 813 995
15	Speed nut	175 867 949
16	oval head panel screw ST 6,3 X 13 ST 6,3 X 13	N 905 354 01
17	oval hd. csk. self-tapp. screw F >> 1 H-N-999 000 4,8 X 22 4,8 X 22	N 014 106 3
18	Hexagon nut M 6 M 6	N 011 006 24
2	holder for bumpercover	165 807 193 A
2	holder for bumpercover	165 807 193 A
3	Rubber washer 15 X 29 X 2,6 15 X 29 X 2,6	N 901 742 01
4	hex. nut with washer M 6 M 6	N 901 326 06
5	Formed part	1HM 807 248 A
6	Hex socket head locating bolt 6 X 27 6 X 27	N 907 407 01
6	Hexagon socket headbolt M 6 X 27 M 6 X 27	6N0 807 199
8	Cover capbumper F >> 1 H-R-010 065	1HM 807 245
8	No longer available	—
9	Spreader rivet 8 X 12 8 X 12	N 038 549 1
9	Clip	161 867 299
