Body — Mk3 Golf Front Body (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Body

Generation: Mk3 1994 - 1997 (RDW) Group: Front body Parts: 2 Primary OEM: 1E0 800 701

Body for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 800000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 1 OEM part number across 2 catalogued positions including 1E0 800 701. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 1 OEM part number across 2 numbered positions.

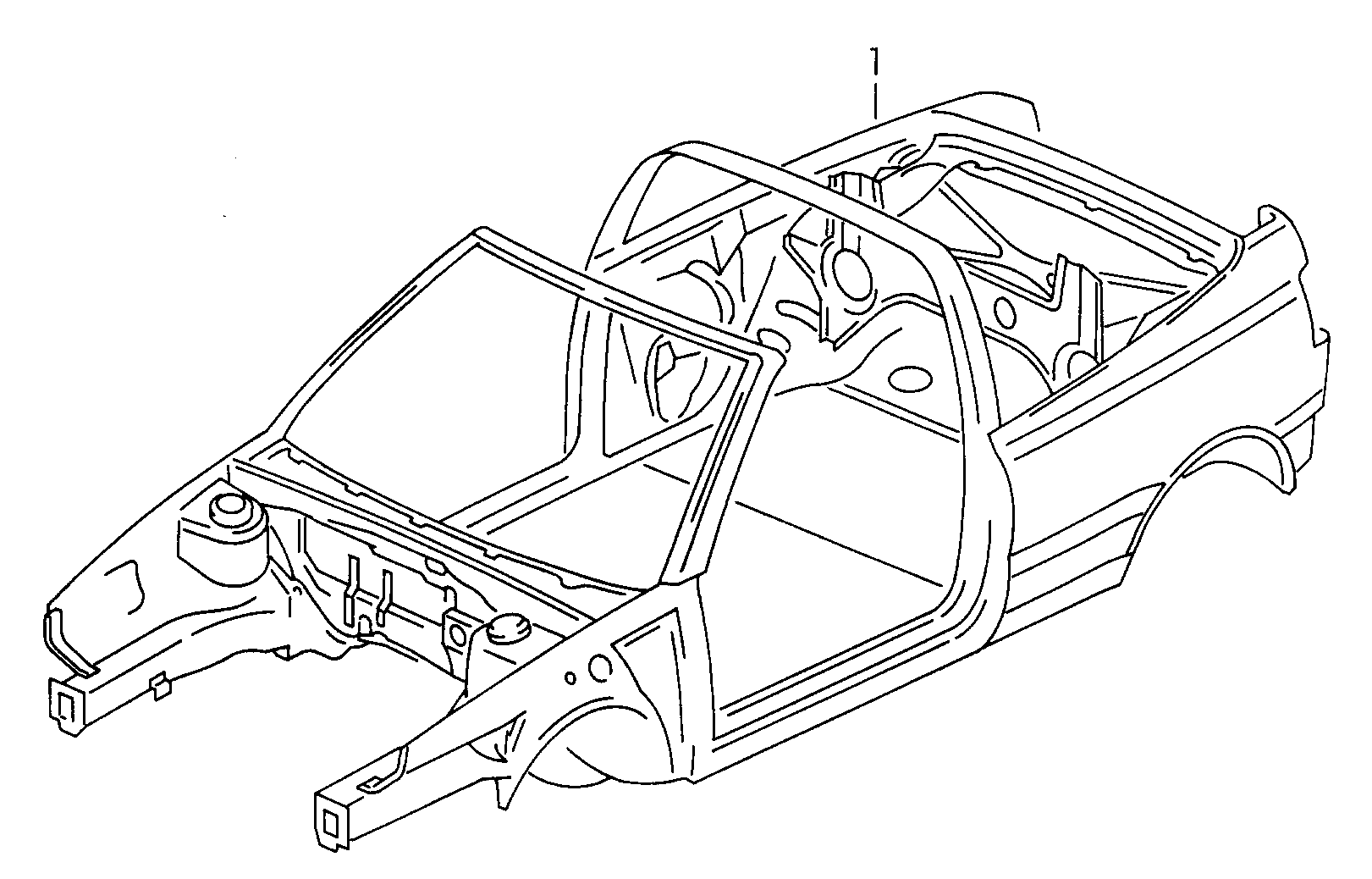

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
1	No longer available also use: 1 E 0 802 566 A 1 E 0 802 566 B automatic Manualgearbox+TDI 1 E 0 802 566 A 1 E 0 802 566 B	—
1	Body also use: 1 E 0 802 566 A 1 E 0 802 566 B automatic Manualgearbox+TDI 1 E 0 802 566 A 1 E 0 802 566 B	1E0 800 701
