Bodywork front part — Mk3 Golf Front Body (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Bodywork front part

Generation: Mk3 1994 - 1997 (RDW) Group: Front body Parts: 38 Primary OEM: 1H6 805 826 B B 41, 1H6 805 825 B 41, 1H6 805 825 B B 41

Bodywork front part for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 805000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 38 OEM part numbers including 1H6 805 826 B B 41, 1H6 805 825 B 41 and 1H6 805 825 B B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 38 OEM part numbers across 38 numbered positions.

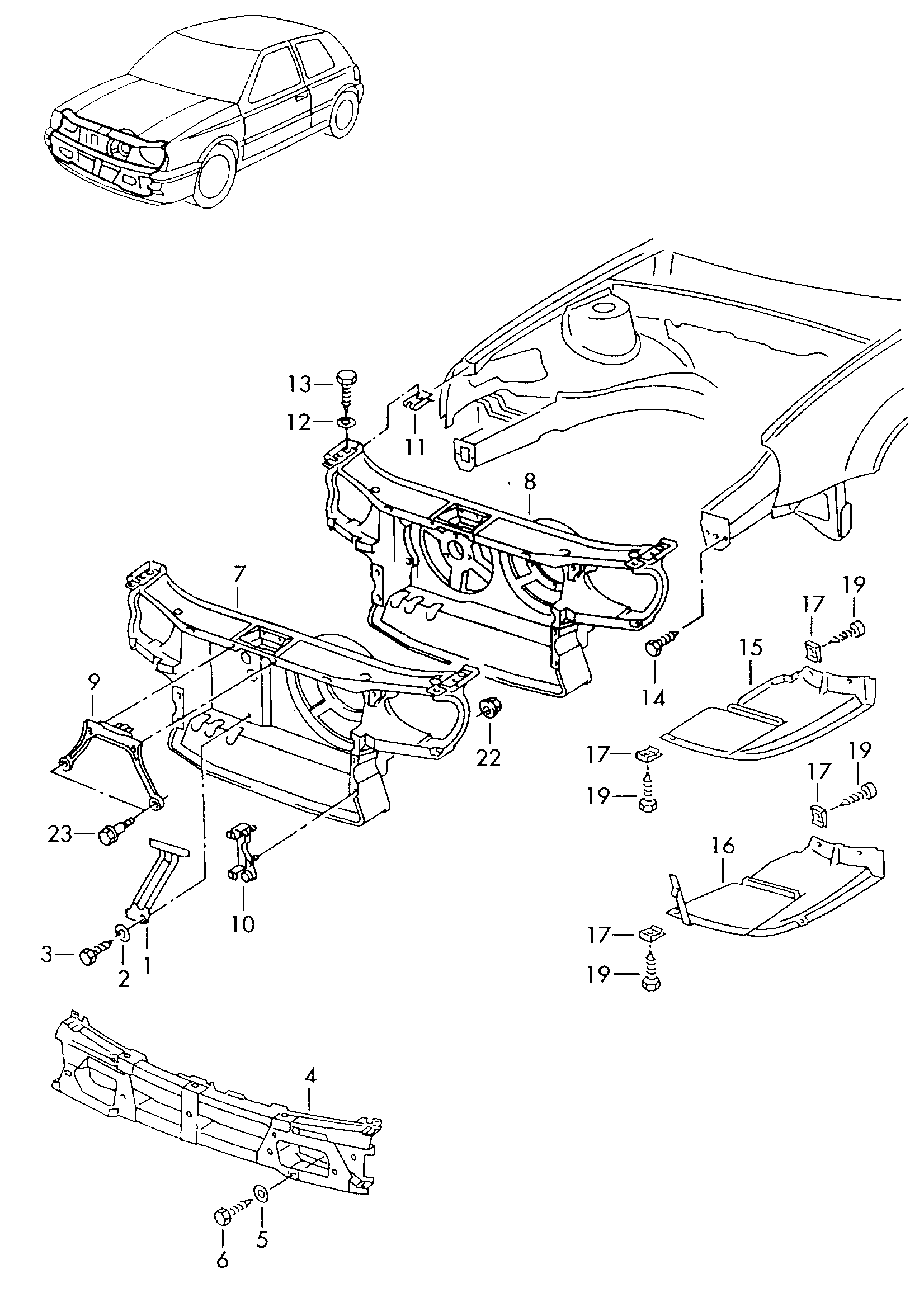

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H6 805 826 B B 41
	Satin black	1H6 805 825 B 41
	Satin black	1H6 805 825 B B 41
	Satin black	1H6 805 826 B 41
-	Hexagon collar nut M 6 M 6	N 901 752 03
-	Tow hitch(left-hand thread)	1H0 805 615 B
(10)	Damper Lock carrier with mounting forcoolant radiator andelectric fan	1H0 805 900
(15)	Air guide	1H6 805 826 B
(15)	Air guide	1H6 805 826
(17)	Speed nut 4,8 X 16,5 X 11 4,8 X 16,5 X 11	N 900 942 01
(7)	Lock carrier with mounting forcoolant radiator andelectric fan for coolant radiator:F >> 1 H-P-290 000* 525 X 320 MM 1,8 LTR.1,6 LTR. 525 X 320 MM	1H0 805 594 A
(7)	Lock carrier with mounting forcoolant radiator andelectric fan TDI	1H0 805 594 J
(7)	Lock carrier with mounting forcoolant radiator andelectric fan for coolant radiator: for coolant radiator: use if required: 630 X 380 MM 630 X 320 MM 1 H 0 121 294 630 X 380 MM 630 X 320 MM 1 H 0 121 294	1H0 805 594 C
(8)	Lock carrier with mounting forcoolant radiator andelectric fan For vehicles with twinfanfor vehicles withbuffer TDI	1H0 805 594 K
(8)	Lock carrier with mounting forcoolant radiator andelectric fan For vehicles with twinfan TDI	1H0 805 594 M
1	radius rod	1H0 805 489 A
10	Damper Lock carrier with mounting forcoolant radiator andelectric fan	1H0 805 899
11	Speed nut 6,3 X 24,5 X 15 6,3 X 24,5 X 15	N 015 449 1
12	Washer 6,4 X 17 X 1,6 6,4 X 17 X 1,6	N 902 076 01
13	hexagon head panel screw 6,5 X 19 6,5 X 19	N 015 946 1
14	Hex collared bolt M 8 X 20 M 8 X 20	N 101 559 01
14	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 6
15	Air guide	1H6 805 825 B
15	Air guide	1H6 805 825
17	Speed nut ST 4,2 X 16,3 X 11 ST 4,2 X 16,3 X 11	N 015 448 1
18	Washer B 4,3 X 12 X 1 GTI B 4,3 X 12 X 1	N 011 664 4
19	oval head panel screw B 4,2 X 16 B 4,2 X 16	N 013 964 4
19	Hexagon socket head panel bolt 4,8 X 16 4,8 X 16	N 907 750 01
2	Washer B 7,4 X 22 X 2 B 7,4 X 22 X 2	N 011 667 2
21	hexagon head panel screw BZ 4,2 X 16 BZ 4,2 X 16	N 013 882 1
23	Locating bolt use if required: M 6 X 52 N 901 791 02 M 6 X 52 N 901 791 02	N 904 497 01
3	hexagon head panel screw A 6,5 X 19 A 6,5 X 19	N 015 946 1
4	Cross member	1H0 805 551 C
5	Spring washer 6 6	N 012 226 5
6	Hexagon bolt M 6 X 16 M 6 X 16	N 010 287 3
8	Lock carrier with mounting forcoolant radiator andelectric fan For vehicles with twinfan	1H0 805 594 L
8	Lock carrier with mounting forcoolant radiator andelectric fan For vehicles with twinfan	1H0 805 594 D
9	arm	1H0 805 759 A
