Bumper front — Mk3 Golf Front Body (1997)

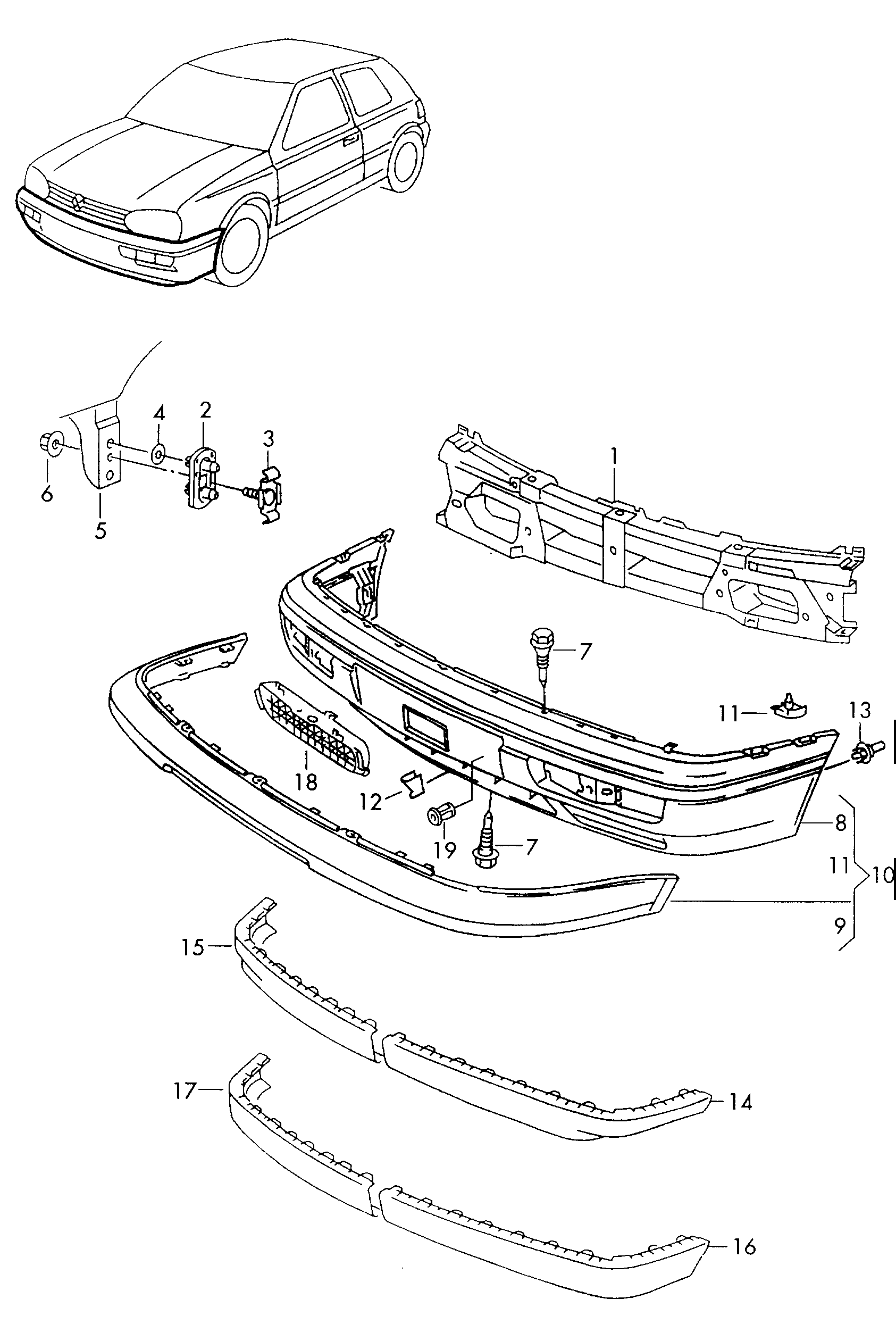

Factory title: Volkswagen Golf (1997 - 1998) - Bumper
Bumper front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 807000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 38 OEM part numbers across 40 catalogued positions including 1H6 807 245 0 1C, 1H6 853 666 0 1C and 1H6 805 904 B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 38 OEM part numbers across 40 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H6 807 245 0 1C | |
| Satin black | 1H6 853 666 0 1C | |
| Satin black | 1H6 805 904 B 41 | |
| Satin black | 1H6 807 223 B 41 | |
| Satin black | 1H6 805 903 B 41 | |
| primed | 1H6 807 217 H G RU | |
| Satin black | 161 867 299 0 1C | |
| Satin black | 1H6 853 677 B 41 | |
| Satin black | 1H6 853 665 A 0 1C | |
| Satin black | 1H6 805 904 A B 41 | |
| Satin black | 1H6 805 903 A B 41 | |
| Satin black | 1H6 807 217 B 41 | |
| primed | 1H6 807 217 J G RU | |
| red | 1H0 807 243 3 ZR | |
| - | trim strip for bumper 5 M PR:E 2 U,E 4 T 5 M | 1H0 807 243 |
| - | 1 set attachment parts For bumpers andvehicles with front end damage | 1H0 898 623 |
| (18) | Cover | 1H6 853 666 |
| (18) | Cover | 1H6 853 677 |
| (8) | Bumper coverfor complete painting use if required: 1 H 0 898 623 CL,GL,VR 6 1 H 0 898 623 | 1H6 807 217 J |
| 1 | see illustration: 805-000 805-000 | — |
| 10 | Bumper coverfor partial painting GT,GTD,GTI,16 V,ROLLING-STONES | 1H6 807 217 H |
| 11 | Spreader rivet | 1H9 807 250 |
| 12 | Cover cap | 1H6 807 245 |
| 13 | Spreader rivet 8 X 12 8 X 12 | N 038 549 1 |
| 13 | Clip | 161 867 299 |
| 14 | Spoiler | 1H6 805 903 |
| 15 | Spoiler | 1H6 805 904 |
| 16 | Spoiler PR:E 2 U,E 4 T | 1H6 805 903 A |
| 17 | Spoiler PR:E 2 U.E 4 T | 1H6 805 904 A |
| 18 | Cover | 1H6 853 665 A |
| 19 | rivetted cap nut AM 6/0,5-4,7-A "J.." AM 6/0,5-4,7-A | N 902 184 01 |
| 19 | rivetted cap nut AM 6/0,5-4,7 "J.." AM 6/0,5-4,7 | N 902 184 02 |
| 2 | Retainer for coverbumper | 1H0 807 193 |
| 3 | Retaining plate Retainer for coverbumper | 1H0 807 197 |
| 4 | Rubber washer 15 X 29 X 2,6 15 X 29 X 2,6 | N 901 742 01 |
| 5 | Consolebumper see illustration: 803-010 803-010 | — |
| 6 | hex. nut with washer M 6 M 6 | N 901 326 03 |
| 7 | Hex collared bolt M 6 X 27 M 6 X 27 | 867 807 199 |
| 8 | Bumper cover use if required: 1 H 0 898 623 1 H 0 898 623 | 1H6 807 217 |
| 9 | Trim for bumper GT,GTD,GTI,16 V | 1H6 807 223 |
