Bumper rear — Mk3 Golf Front Body (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Bumper

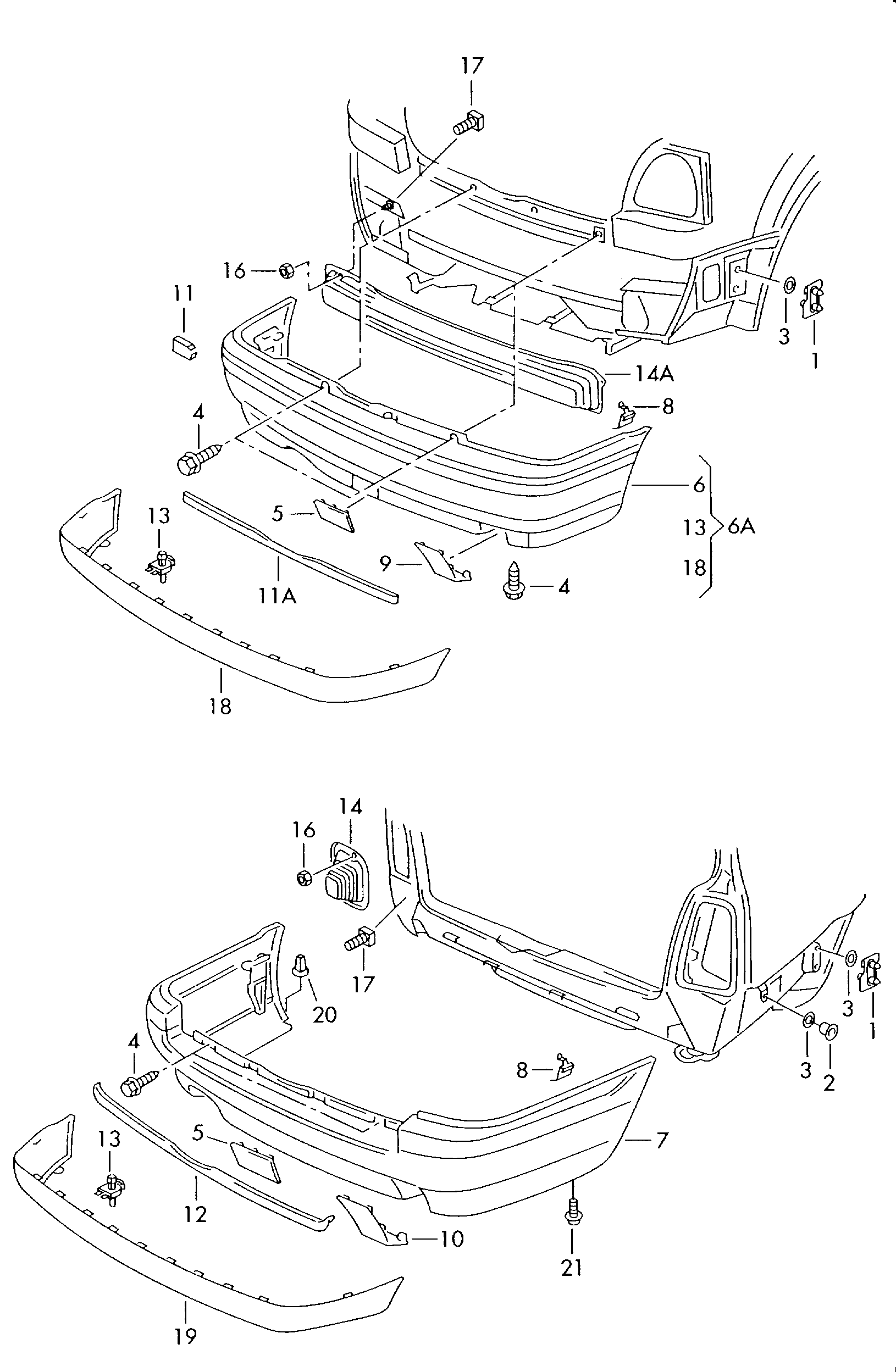

Bumper rear for the Volkswagen Golf Mk3 (1997): factory exploded diagram 807050 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 35 OEM part numbers including 1H6 807 441 B 41, 1H6 807 833 A G RU and 1H6 807 641 B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 35 OEM part numbers across 35 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H6 807 441 B 41 | |
| primed | 1H6 807 833 A G RU | |
| Satin black | 1H6 807 641 B 41 | |
| primed | 1H0 807 449 G RU | |
| Satin black | 1H6 807 417 B 41 | |
| primed | 1H6 807 417 H G RU | |
| primed | 1H6 807 417 J G RU | |
| primed | 1H6 807 417 G G RU | |
| red | 1H0 807 243 3 ZR | |
| graphite | 867 807 449 2 BC | |
| Satin black | 867 807 449 B 41 | |
| Satin black | 1H6 807 395 B 41 | |
| primed | 1H6 807 395 B G RU | |
| - | trim strip for bumper 5 M PR:E 2 U,E 4 T 5 M | 1H0 807 243 |
| (11) | Cover cap | 1H0 807 449 |
| (5) | Cover cap For vehicles with removabletrailer hitch (ball head) | 1H6 807 395 |
| (5) | Cover cap For vehicles with removabletrailer hitch (ball head) | 1H6 807 395 B |
| (6) | Bumper coverfor partial painting GT,GTI,GTD, | 1H6 807 417 G |
| (6) | Bumper coverfor complete painting CL,GL,VR 6 | 1H6 807 417 H |
| (6) | Bumper cover HIGHLINE, | 1H6 807 417 J |
| (8) | Retaining clip 28 X 24 X 11 28 X 24 X 11 | 1H0 807 435 A |
| 1 | Retainer for cover | 1H0 807 193 |
| 11 | Cover cap | 867 807 449 |
| 11 | Cover cap | 867 807 449 |
| 11A | Cover trim | 1H6 807 641 |
| 13 | Spreader rivet | 1H9 807 250 |
| 14A | Bumper carrier | 1H6 807 311 |
| 16 | hexagon nut, self-locking M 8 M 8 | N 900 744 01 |
| 17 | bolt, hexagon headself-locking M 8 X 20 M 8 X 20 | N 010 240 22 |
| 18 | Trim for bumper GT,GTI,GTD | 1H6 807 833 A |
| 3 | Rubber washer 15 X 29 X 2,6 15 X 29 X 2,6 | N 901 742 01 |
| 4 | Hex collared bolt M 6 X 27 M 6 X 27 | 867 807 199 |
| 6 | Bumper cover | 1H6 807 417 |
| 8 | Retaining clip 24 X 20 X 11 24 X 20 X 11 | 1H0 807 435 |
| 9 | Cover cap Tow hitch | 1H6 807 441 |
