Which VW part numbers are on the fuel filler flap diagram for the Mk3 Golf?

This diagram lists 5 OEM part numbers for the Mk3 Golf. The first three are 1H0 809 905 A, N 902 056 01 and N 014 131 3.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Fuel filler flap — Mk3 Golf Front Body (1997)

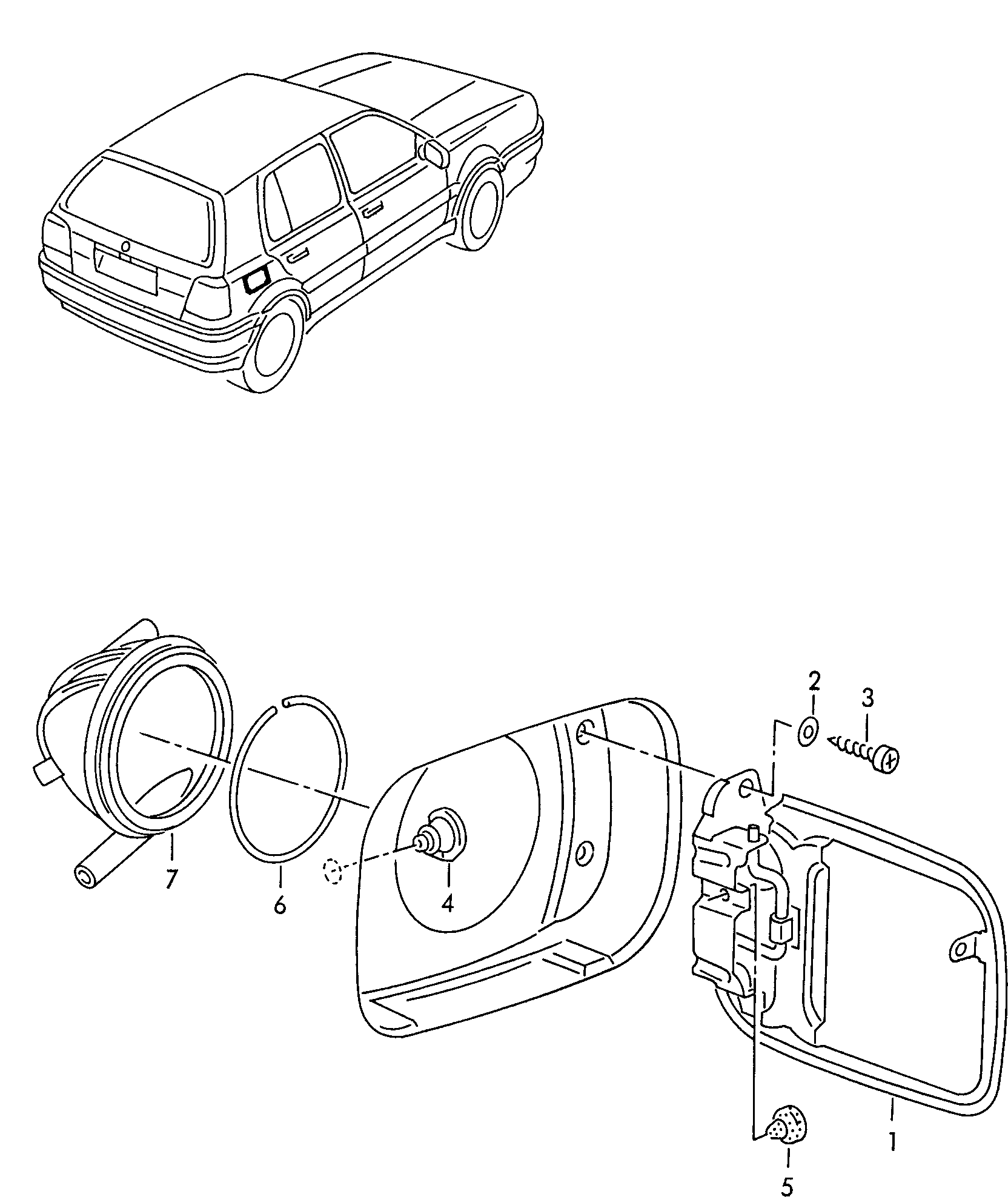

Factory title: Volkswagen Golf (1997 - 1998) - Side part

Generation: Mk3 1997 (RDW) Group: Front body Parts: 7 Primary OEM: 1H0 809 905 A, N 902 056 01, N 014 131 3

Fuel filler flap for the Volkswagen Golf Mk3 (1997): factory exploded diagram 809090 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 5 OEM part numbers across 7 catalogued positions including 1H0 809 905 A, N 902 056 01 and N 014 131 3. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 5 OEM part numbers across 7 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
1	Fuel filler flap	1H0 809 905 A
2	Washer 5,3 X 12 X 1 5,3 X 12 X 1	N 902 056 01
3	fillister hd. bolt AM 5 X 15 AM 5 X 15	N 014 131 3
4	Stop Fuel filler flap	1H0 809 948 C
5	Bungs 5 X 0,8 5 X 0,8	893 877 665 A
6	see illustration: 201-005 201-005	—
7	see illustration: 201-005 201-005	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 25 Front body
Factory subgroup: 809090

Related factory diagrams

Other published front body plates for the Mk3 Golf in this catalogue.

Bodywork front part 1993 - 1996 · subgroup 805000
Bumper rear 1993 - 1996 · subgroup 807050
Bumper front 1993 - 1996 · subgroup 807000
Sill trim strip radiator grilletrim licence 1993 - 1996 · subgroup 853030
Side part jetta 1993 - 1996 · subgroup 809050
Sectional parts side section jetta 1993 - 1996 · subgroup 809080
Body 1997 · subgroup 800000
Bodywork front part 1997 · subgroup 805000
