Noise insulation cover control unit — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Cover. Noise insulation. Control unit

Generation: Mk3 1997 (RDW) Group: Front body Parts: 13 Primary OEM: 1H6 864 707 C, 1H6 864 711 A, 1H0 864 237

Noise insulation cover control unit for the Volkswagen Golf Mk3 (1997): factory exploded diagram 864000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 7 OEM part numbers across 13 catalogued positions including 1H6 864 707 C, 1H6 864 711 A and 1H0 864 237. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 7 OEM part numbers across 13 numbered positions.

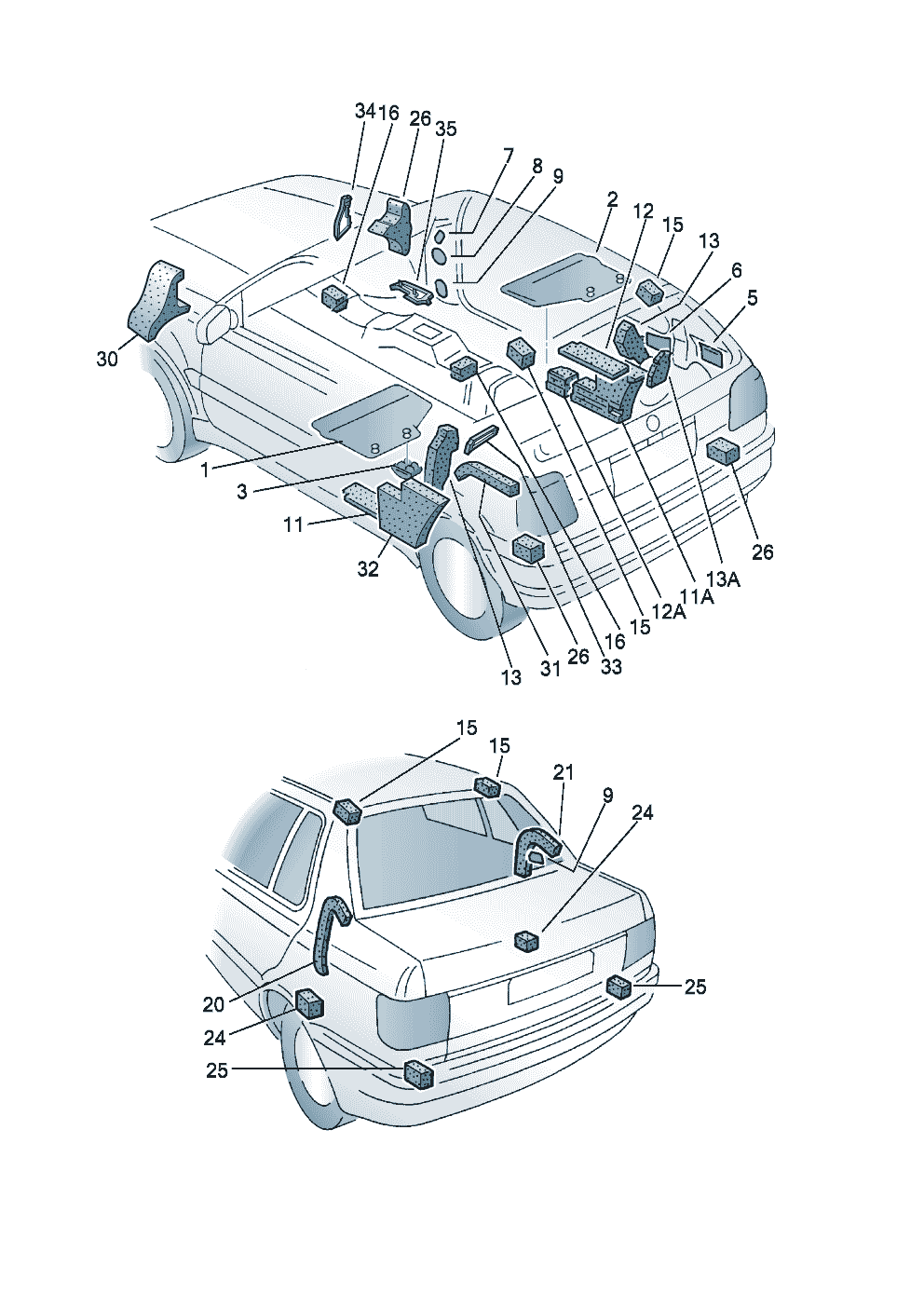

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(11A)	Damping	1H6 864 707 C
(13)	Damping	1H6 864 711 A
(26)	sound absorb.for wheel housing TDI	1H0 864 237
(5)	sound absorber (self-adhesive)'order unit 6' 550 X 250 X 2 550 X 250 X 2	323 863 950
11A	Damping	1H6 864 708 C
15	Damping make up from: 1 H 0 864 733 1 H 0 864 733	—
16	Formed partfuel pipe	357 804 981
20-25	see catalogue: 148, BT 864-00 148, BT 864-00	—
26	sound absorb.for wheel housing TDI	1H0 864 238
6	foil make up from: 1 H 0 864 701 C 1 H 0 864 701 C	—
7	foil make up from: 1 H 0 864 701 C 1 H 0 864 701 C	—
8	foil make up from: 1 H 0 864 701 C 1 H 0 864 701 C	—
9	foil make up from: 1 H 0 864 701 C 1 H 0 864 701 C	—
