Protective stripstrim wheel archtrim pillar — Mk3 Golf Front Body (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Trim for pillar b. trim for wheel arch. Protective strips

Generation: Mk3 1994 - 1997 (RDW) Group: Front body Parts: 68 Primary OEM: 1H3 853 535 C G RU, 1H3 853 535 B 41, 1E0 853 351 A B 41

Protective stripstrim wheel archtrim pillar for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 853000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 67 OEM part numbers across 68 catalogued positions including 1H3 853 535 C G RU, 1H3 853 535 B 41 and 1E0 853 351 A B 41. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 67 OEM part numbers across 68 numbered positions.

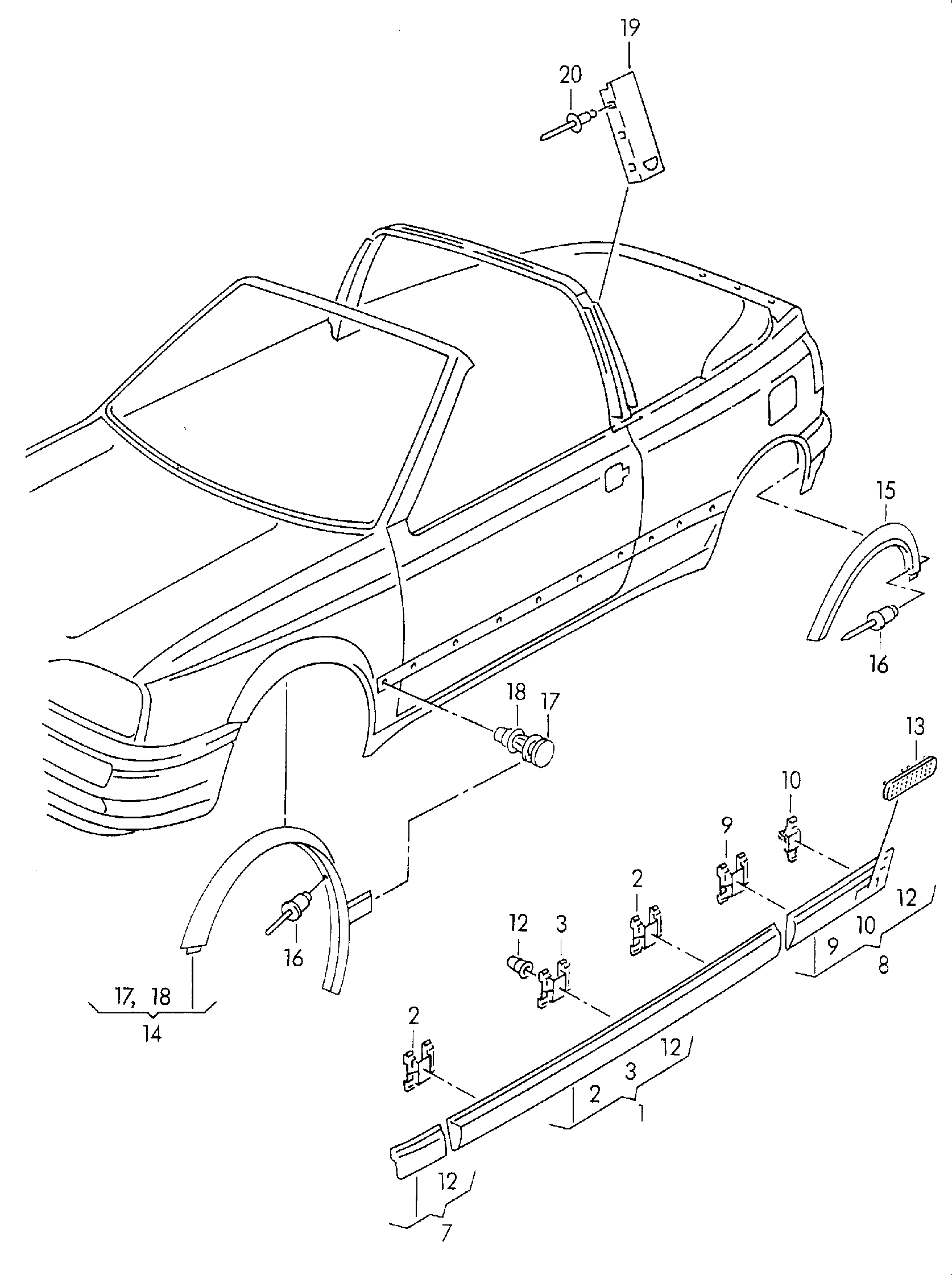

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	primed	1H3 853 535 C G RU
	Satin black	1H3 853 535 B 41
	Satin black	1E0 853 351 A B 41
	Satin black	1H3 853 535 A B 41
	Satin black	1E0 853 351 B 41
	Satin black	1E0 853 714 B 41
	Satin black	1H3 853 536 B 41
	Satin black	1H0 853 818 B B 41
	Satin black	1H3 853 536 A B 41
	primed	1H3 853 536 C G RU
	Satin black	1H0 853 817 B B 41
	Satin black	1H0 853 718 A B 41
	Satin black	1H0 853 717 A B 41
	black/blue/red/yellow	1H6 853 714 G Z 39
	chrome/grey/turquoise	1E0 853 687 E Z 90
	trim for wheel arch sportsversion	—
	Satin black	1H3 853 516 B 41
	Satin black	1H3 853 516 A B 41
	primed	1H3 853 516 C G RU
	Satin black	1E0 853 352 A B 41
	Satin black	1H3 853 515 B 41
	Satin black	1H0 853 517 B 41
	Satin black	1E0 853 352 B 41
	primed	1H0 853 517 B G RU
	primed	1H0 853 517 C G RU
	Satin black	1H3 853 515 A B 41
	Satin black	1H0 853 518 B 41
	primed	1H0 853 518 B G RU
	primed	1H3 853 515 C G RU
	primed	1H0 853 518 C G RU
(1)	Protective strip for door 53 MM 53 MM	1H3 853 516
(1)	Protective strip for door 53 MM 53 MM	1H3 853 515 C
(1)	Protective strip for door 63 MM sportsversion 63 MM	1H3 853 515 A
(1)	Protective strip for door 53 MM 53 MM	1H3 853 516 C
(1)	Protective strip for door 63 MM sportsversion 63 MM	1H3 853 516 A
(13)	Trim COLOUR-CONCEPT	1H6 853 714 G
(13)	inscription 'CLASSIC EDITION' 'CLASSIC EDITION'	1E0 853 687 E
(14)	trim for wheel arch	1H0 853 718 A
(15)	trim for wheel arch	1H0 853 818 B
(19)	trim for pillar b	1E0 853 352
(19)	trim for pillar b	1E0 853 351
(19)	trim for pillar b	1E0 853 352 A
(7)	Protective strip for wings 53 MM 53 MM	1H0 853 517 B
(7)	Protective strip for wings 53 MM 53 MM	1H0 853 517
(7)	Protective strip for wings 53 MM 53 MM	1H0 853 517 C
(7)	Protective strip for wings 53 MM 53 MM	1H0 853 518
(7)	Protective strip for wings 53 MM 53 MM	1H0 853 518 B
(7)	Protective strip for wings 53 MM 53 MM	1H0 853 518 C
(8)	Protective strip for side sect 53 MM 53 MM	1H3 853 535
(8)	Protective strip for side sect 53 MM 53 MM	1H3 853 536 C
(8)	Protective strip for side sect 63 MM sportsversion 63 MM	1H3 853 536 A
(8)	Protective strip for side sect 53 MM 53 MM	1H3 853 536
(8)	Protective strip for side sect 53 MM 53 MM	1H3 853 535 C
(8)	Protective strip for side sect 63 MM sportsversion 63 MM	1H3 853 535 A
1	Protective strip for door 53 MM 53 MM	1H3 853 515
10	Clip	1H0 853 585 A
12	Grommet	1H0 853 586
13	Trim sportsversion	1E0 853 714
14	trim for wheel arch	1H0 853 717 A
15	trim for wheel arch	1H0 853 817 B
16	Pop rivet 4 X 14 4 X 14	N 906 349 01
17	Clip	191 853 585 A
18	Grommet	357 853 586 D
19	trim for pillar b	1E0 853 351 A
2	Clip	1H0 853 585
20	Spreader rivet	113 857 117 B
3	Clip	1H0 853 585 B
9	Clip	1H0 853 585

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 25 Front body
Factory subgroup: 853000
