Sectional parts side section — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Side part

Generation: Mk3 1997 (RDW) Group: Front body Parts: 26 Primary OEM: 1H0 898 621, 1H0 809 206, 1H4 809 844 A

Sectional parts side section for the Volkswagen Golf Mk3 (1997): factory exploded diagram 809070 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 26 OEM part numbers including 1H0 898 621, 1H0 809 206 and 1H4 809 844 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 26 numbered positions.

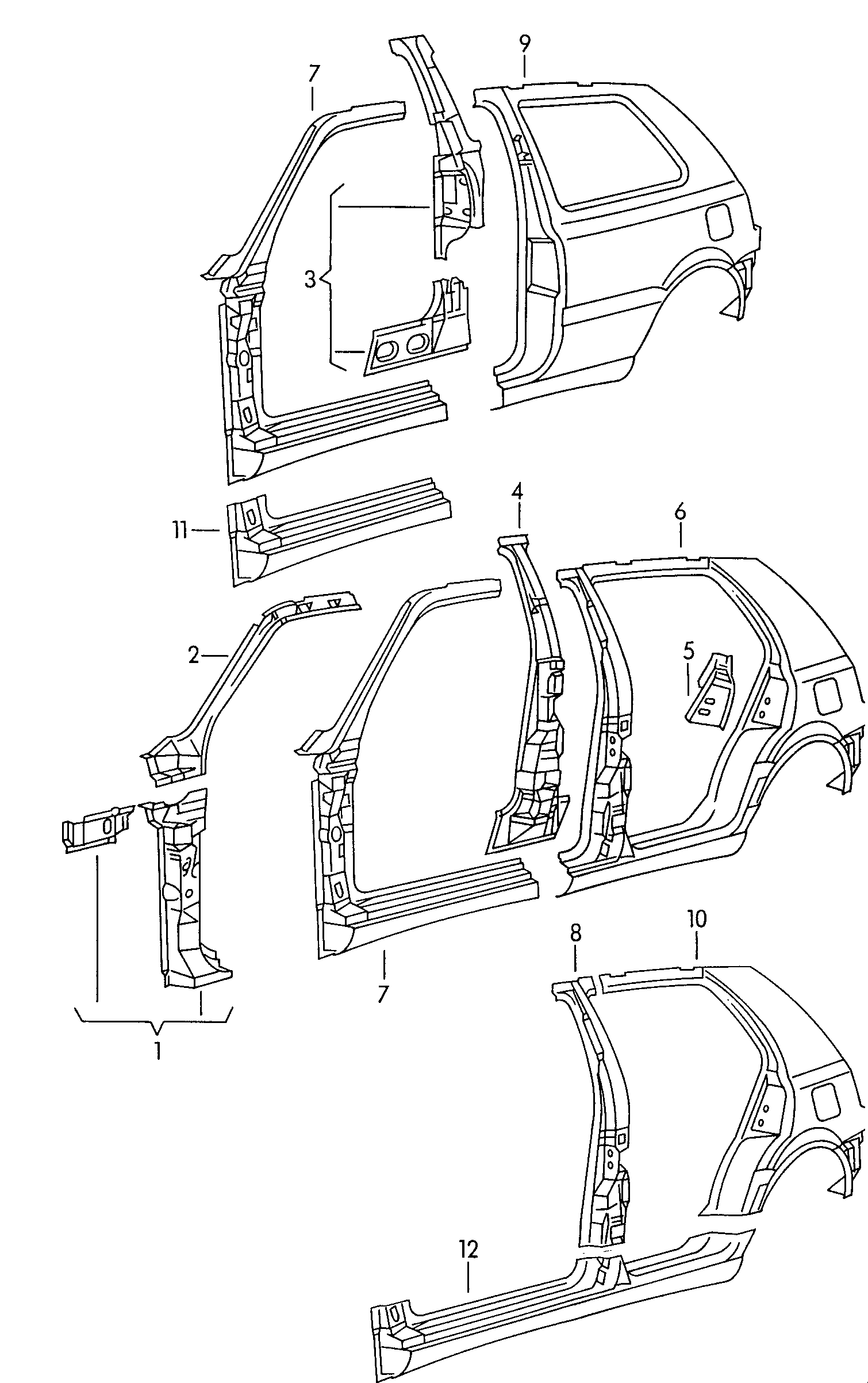

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	1 set attachment partsfor side panel	1H0 898 621
-	1 set attachment partsfor side panel	1H0 898 621
(1)	a-pillar	1H0 809 206
(10)	Sectional part - side panel use if required: 1 H 0 898 621 1 H 0 898 621	1H4 809 844 A
(11)	Sectional part - side member	1H3 809 848
(12)	Sectional part - side member	1H4 809 848
(2)	side panel, inner use if required: 1 H 0 898 621 1 H 0 898 621	1H0 809 438 A
(3)	Reinforcement for B-pillar	1H3 809 608 B
(4)	Reinforcement for B-pillar	1H4 809 608 C
(5)	Reinforcement for C-pillarfor cotter pin	1H6 809 612
(6)	Sectional part - side panelwith B-pillar use if required: 1 H 0 898 621 1 H 0 898 621	1H4 809 838 B
(7)	Sectional part - pillar A withframe member use if required: 1 H 0 809 2061 H 0 809 438 A 1 H 0 809 2061 H 0 809 438 A	1H0 809 840
(8)	Sectional part - B-pillar	1H4 809 842
(9)	Sectional part - side panel use if required: 1 H 0 898 621 1 H 0 898 621	1H3 809 844 B
(9)	Sectional part - side panel use if required: 1 H 0 898 621 1 H 0 898 621	1H3 809 843 A
1	a-pillar	1H0 809 205
10	Sectional part - side panel use if required: 1 H 0 898 621 1 H 0 898 621	1H4 809 843
11	Sectional part - side member	1H3 809 847
12	Sectional part - side member	1H4 809 847
2	side panel, inner use if required: 1 H 0 898 621 1 H 0 898 621	1H0 809 437 A
3	Reinforcement for B-pillar	1H3 809 607 B
4	Reinforcement for B-pillar	1H4 809 607 C
5	Reinforcement for C-pillarfor cotter pin	1H6 809 611
6	Sectional part - side panelwith B-pillar use if required: 1 H 0 898 621 1 H 0 898 621	1H4 809 837
7	Sectional part - pillar A withframe member use if required: 1 H 0 809 2051 H 0 809 437 A 1 H 0 809 2051 H 0 809 437 A	1H0 809 839
8	Sectional part - B-pillar	1H4 809 841

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 25 Front body
Factory subgroup: 809070
