Which VW part numbers are on the side part diagram for the Mk3 Golf?

This diagram lists 51 OEM part numbers for the Mk3 Golf. The first three are 1H0 971 908, 1H4 971 295 and 1H4 971 908 A.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

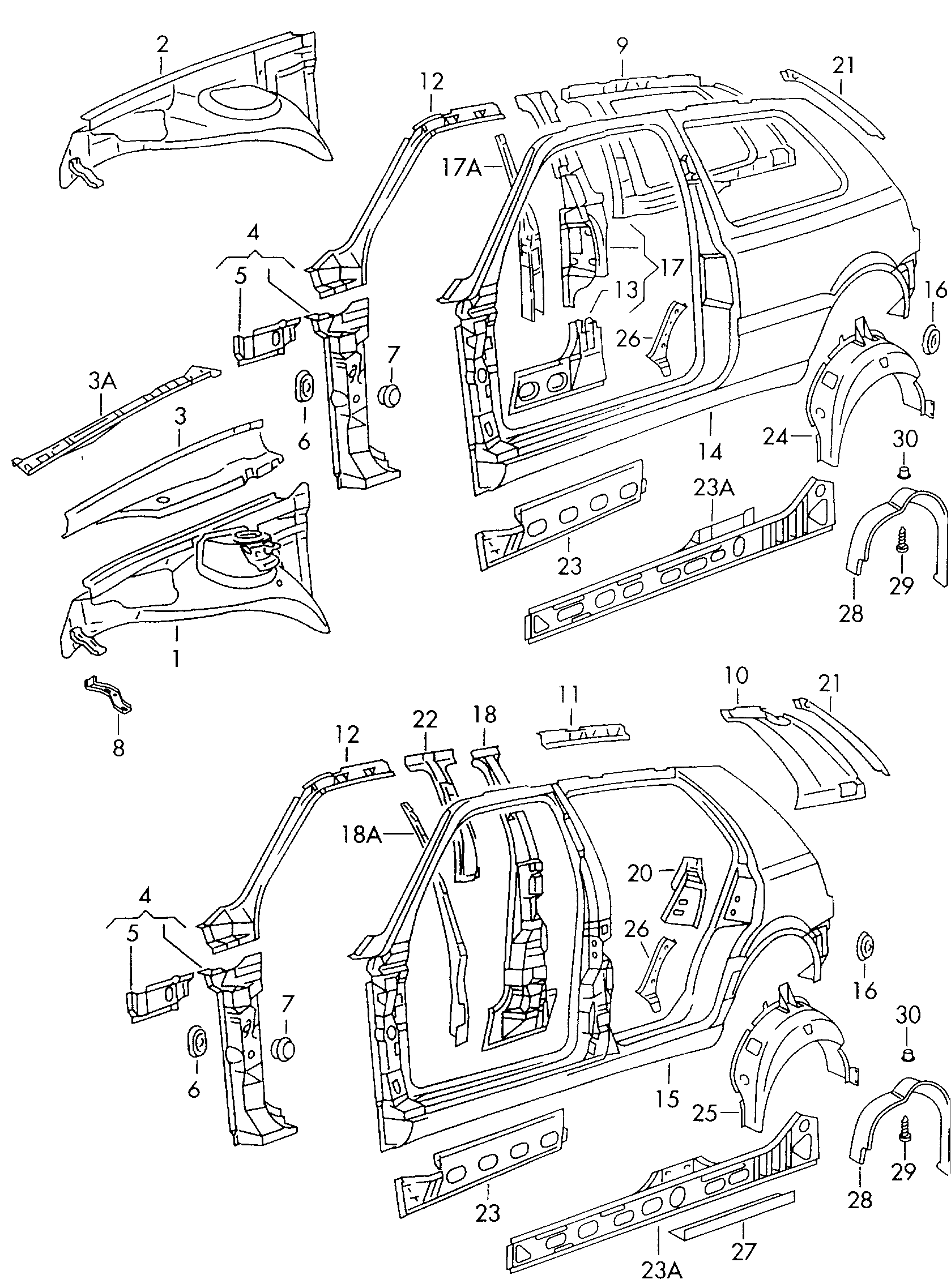

Side part — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Side part

Generation: Mk3 1997 (RDW) Group: Front body Parts: 51 Primary OEM: 1H0 971 908, 1H4 971 295, 1H4 971 908 A

Side part for the Volkswagen Golf Mk3 (1997): factory exploded diagram 809030 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 51 OEM part numbers including 1H0 971 908, 1H4 971 295 and 1H4 971 908 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 51 OEM part numbers across 51 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bungs 70 70	1H0 971 908
-	Coverb-pillar	1H4 971 295
-	Bungs 41 41	1H4 971 908 A
-	Trim for side windowaperture	1H6 809 271 A
-	Seal	1H0 861 913
-	Trim for side windowaperture	1H6 809 272 A
-	Bungs Side part 25 25	1H0 839 863
-	1 set attachment partsfor side panel	1H0 898 621
(1)	Wheel housing	1H0 809 101 D
(10)	side panel, inner	1H6 809 404 A
(11)	side panel, inner	1H4 809 430
(12)	side panel, inner	1H0 809 438 A
(13)	Insert plate for B-pillar	1H3 809 518 B
(13)	Insert plate for B-pillar	1H3 809 517 B
(14)	Side part use if required: 1 H 0 898 621 1 H 0 898 621	1H3 809 605
(14)	Side part use if required: 1 H 0 898 621 1 H 0 898 621	1H3 809 606 A
(15)	Side part use if required: 1 H 0 898 621 1 H 0 898 621	1H6 809 605 G
(15)	Side part use if required: 1 H 0 898 621 1 H 0 898 621	1H6 809 606 K
(17)	Reinforcement for B-pillar	1H3 809 607 B
(17)	Reinforcement for B-pillar	1H3 809 608 B
(18)	Reinforcement for B-pillar	1H4 809 608 C
(18)	Reinforcement for B-pillar	1H4 809 607 C
(2)	Sectional part - wheel housing	1H0 809 103 A
(20)	Reinforcement for C-pillarfor cotter pin	1H6 809 612
(21)	Sealing channel	1H6 809 642 A
(21)	Sealing channel	1H6 809 641 A
(22)	Reinforcement for safetybelt fastening Reinforcement for B-pillar	1H4 809 762 A
(22)	Reinforcement for safetybelt fastening Reinforcement for B-pillar	1H4 809 761 A
(23)	Web plate for side member	1H0 810 607 A
(23)	Web plate for side member	1H0 810 608
(23)	Web plate for side memberfor models withside airbag	1H0 810 608 A
(3)	Side member for wheel housing	1HM 809 147
(4)	a-pillar	1H0 809 206
(5)	Insert plate for A-pillar	1H0 810 232
(8)	Brace for wheel housing	1H0 810 113
(8)	Brace for wheel housing	1H0 810 091
(9)	side panel, inner	1H6 809 404
1	Wheel housing	1H0 809 102 D
10	side panel, inner	1H6 809 403 A
11	side panel, inner	1H4 809 429
12	side panel, inner	1H0 809 437 A
16	Bungs 30 X 5,6 X 37 30 X 5,6 X 37	N 100 344 01
2	Sectional part - wheel housing	1H0 809 104 A
20	Reinforcement for C-pillarfor cotter pin	1H6 809 611
23	Web plate for side member	1H0 810 607
3	Side member for wheel housing	1HM 809 148
4	a-pillar	1H0 809 205
5	Insert plate for A-pillar	1H0 810 231
7	Bungs 15 15	191 807 196
8	Brace for wheel housing	1H0 810 114 A
9	side panel, inner	1H6 809 403

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 25 Front body
Factory subgroup: 809030
