Side part fuel filler flap — Mk3 Golf Front Body (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Fuel filler flap. Side part

Generation: Mk3 1994 - 1997 (RDW) Group: Front body Parts: 55 Primary OEM: 191 807 196, 1H0 971 908, 1E0 810 072

Side part fuel filler flap for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 809030 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 55 OEM part numbers including 191 807 196, 1H0 971 908 and 1E0 810 072. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 55 OEM part numbers across 55 numbered positions.

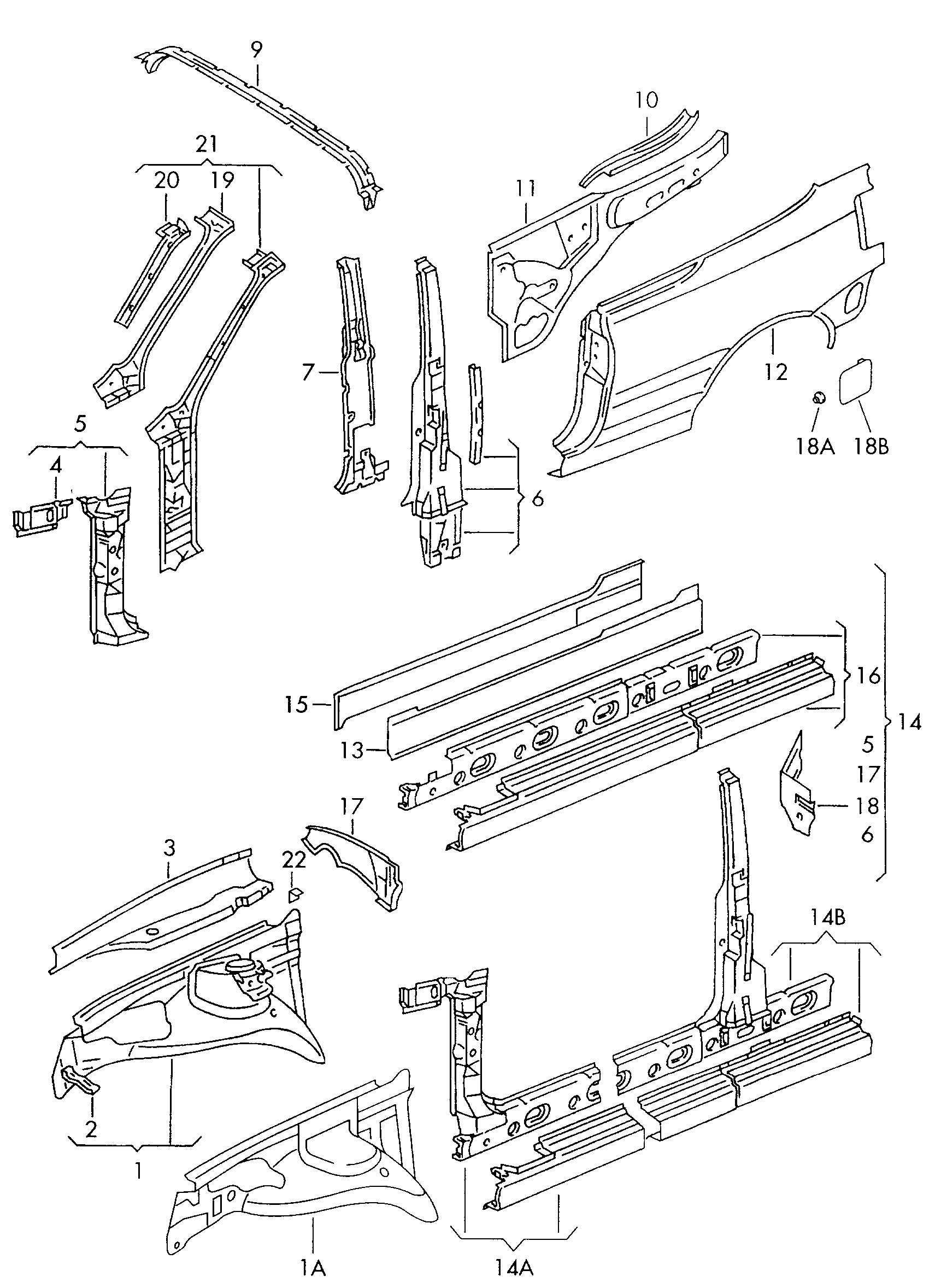

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Bungs 15 15	191 807 196
	Bungs 70 70	1H0 971 908
-	Sectional part - pillar A withframe member	1E0 810 072
(1)	Wheel housing	1H0 809 101 D
(10)	Drip mouldingside	1E0 809 394
(11)	side panel, inner	1E0 809 404 A
(12)	Side part use if required: 1 H 0 809 905 A 1 H 0 809 905 A	1E0 809 602 A
(13)	Web plate for side member	1E0 809 630
(14)	side member with lower apillar and outer b pillar	1E0 809 674
(14)	side member with lower apillar and outer b pillar	1E0 809 674 A
(14A)	Sectional part - pillar A withframe member	1E0 810 072 A
(14B)	Sectional part - pillar B withframe member	1E0 810 074
(15)	Reinforcement Support plate Bottom plate	1E0 809 684
(16)	side member	1E0 809 706 A
(17)	Reinforcement	1E0 805 182
(18)	Reinforcement	1E0 809 760
(18B)	Fuel filler flap F 1 E-T-000 001>>*	1H0 809 905 A
(19)	a-pillar, inner	1E0 810 094
(1A)	Sectional part - wheel housing	1H0 809 103 A
(1A)	Sectional part - wheel housing	1H0 809 104 A
(2)	Brace for wheel housing	1H0 810 113
(2)	Brace for wheel housing	1H0 810 091
(20)	Reinforcementa-pillar, inner	1E0 817 136
(21)	Reinforcement for windprotection window frame	1E0 817 134 A
(3)	Side member for wheel housing	1HM 809 147
(4)	Insert plate for A-pillar	1H0 810 232
(6)	b-pillar, outer	1E0 809 222
(7)	b-pillar, inner	1E0 809 224
1	Wheel housing F >> 1 E-S-024 000*	1H0 809 102 A
1	Wheel housing	1H0 809 102 D
10	Drip mouldingside	1E0 809 393
11	side panel, inner	1E0 809 403 A
12	Side part	1E0 809 601
13	Web plate for side member	1E0 809 629
14	side member with lower apillar and outer b pillar	1E0 809 673 A
14	side member with lower apillar and outer b pillar	1E0 809 673
14A	Sectional part - pillar A withframe member	1E0 810 071 A
14B	Sectional part - pillar B withframe member	1E0 810 073
15	Reinforcement Support plate Bottom plate	1E0 809 683
16	side member	1E0 809 705 A
17	Reinforcement	1E0 805 181
18	Reinforcement	1E0 809 759
18A	Stop Fuel filler flap	1H0 809 948 C
18B	Fuel filler flap F >> 1 E-S-050 000*	1H0 809 905
19	a-pillar, inner	1E0 810 093
2	Brace for wheel housing	1H0 810 114 A
2	Brace for wheel housing	1H0 810 114
20	Reinforcementa-pillar, inner	1E0 817 135
21	Reinforcement for windprotection window frame	1E0 817 133 A
22	Bracket for gas filled strut	1E0 810 807
3	Side member for wheel housing	1HM 809 148
4	Insert plate for A-pillar	1H0 810 231
6	b-pillar, outer	1E0 809 221
7	b-pillar, inner	1E0 809 223
9	roll bar	1E0 809 291
