Sill trim strip radiator grilleinscriptions lettering — Mk3 Golf Front Body (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Molding - roof. Protective strips

Generation: Mk3 1997 (RDW) Group: Front body Parts: 176 Primary OEM: 1H6 853 675 E Z 10, 1H6 853 750 V 05, 1H0 853 675 E E QW

Sill trim strip radiator grilleinscriptions lettering for the Volkswagen Golf Mk3 (1997): factory exploded diagram 853030 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 173 OEM part numbers across 176 catalogued positions including 1H6 853 675 E Z 10, 1H6 853 750 V 05 and 1H0 853 675 E E QW. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 173 OEM part numbers across 176 numbered positions.

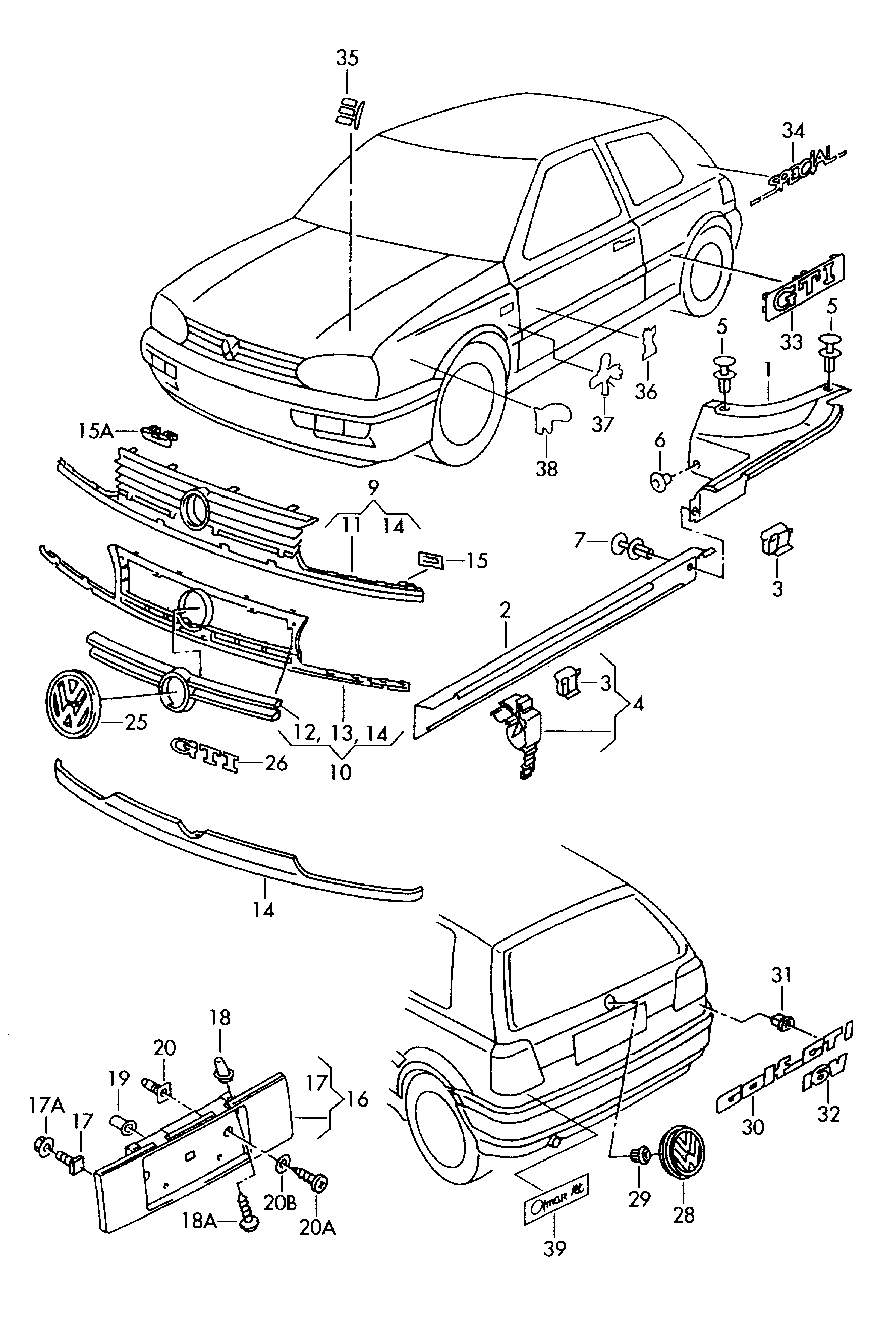

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
chrome
 1H6 853 675 E Z 10
black/multicolor
 1H6 853 750 V 05
chrome/red
 1H0 853 675 E E QW
beaver
 1H4 853 371 B T 21
Multicolour
 1H6 853 431 AG9 SX
flint
 1H4 853 371 B Y 01
Red/blue/turquoise
 1H6 853 750 L 1 ME
Satin black/tornado red
 357 853 675 A Q N5
turquoise/red
 1H6 853 750 K 6 JS
chrome
 3A0 853 675 Z 10
green/blue/red
 1H6 853 750 J 6 GP
black/gunpowder
 1H6 853 675 B D LV
black/multicolor
 1H6 853 750 H Z 47
chrome
 3A0 853 675 B Z 10
chrome
 1H0 853 675 D Z 10
Satin black
 1H4 853 372 B B 41
beaver
 1H4 853 372 B T 21
flint
 1H4 853 372 B Y 01
Satin black
 1H3 853 373 B B 41
beaver
 1H3 853 373 B T 21
flint
 1H3 853 373 B Y 01
Satin black
 1H4 853 373 B B 41
beaver
 1H4 853 373 B T 21
flint
 1H4 853 373 B Y 01
Satin black
 1H3 853 374 B B 41
beaver
 1H3 853 374 B T 21
flint
 1H3 853 374 B Y 01
Satin black
 1H4 853 374 B B 41
beaver
 1H4 853 374 B T 21
flint
 1H4 853 374 B Y 01
Multicolour
 1H6 853 431 AF9 SX
Multicolour
 1H6 853 431 AJ9 SX
silver grey
 1H6 853 431 AC7 SH
Satin black
 1H0 867 199 0 1C
black/multicolor
 1H6 853 432 C Z 47
beaver
 N 905 740 01T 21
Satin black
 N 905 740 010 1C
black/multicolor
 1H6 853 431 N Z 47
flint
 N 905 740 01Y 01
Multicolour
 1H6 853 431 AD9 SX
Satin black 9,5 X 6 X 31
9,5 X 6 X 31
 N 908 315 010 1C
Multicolour
 1H6 853 431 AH9 SX
mauritius blue
 1H0 867 199 A H 21
beaver
 1H0 867 199 A T 21
Satin black
 1H0 867 199 A 0 1C
Multicolour
 1H6 853 431 AE9 SX
Multicolour
 1H6 853 431 AB8 SK
anthracite
 1H6 853 431 T 2 ZE
Satin black
 1H6 853 653 C 0 1C
silver
 1H6 853 431 T 1 ZQ
primed
 1H6 853 653 D G RU
Red/blue/turquoise
 1H6 853 431 R 1 ME
green/blue/red
 1H6 853 431 P 6 GP
primed
 1H6 853 661 G RU
black/multicolor
 1H9 853 432 V 05
turquoise/red
 1H6 853 431 Q 6 JS
black/multicolor
 1H6 853 431 M Z 47
chrome
 3A0 853 600 E PG
Black
 323 853 601 0 41
black/multicolor
 1H6 853 431 A V 05
chrome
 3A0 853 600 E PG
diamond-silver
 1H6 853 431 K 9 ZD
chrome
 1H6 853 679 E Z 10
tornado red
 1H6 853 679 E Q N5
red
 1H6 853 750 N 8 SY
chrome
 1H6 853 679 F Z 10
Satin black
 1E0 853 714 B 41
black/gunpowder
 1H6 853 679 D D LV
Satin black
 1H4 853 371 B B 41
black/red
 1H6 853 679 G Q N5
chrome colored
 1H6 853 714 H Z 50
chrome
 3A9 853 630 7 39
black/blue/red/yellow
 1H6 853 714 G Z 39
Satin black
 1H6 853 630 C 0 1C
tornado red
 1H6 853 714 C Q N5
black/gunpowder
 1H6 853 630 D D LW
chrome
 1H6 853 714 C Z 10
chrome
 1H6 853 687 AHZ 10
tornado red 'OTMAR ALT'
 1H6 853 687 AHQ N5
chrome
 1H0 853 714 D Z 10
chrome
 1H6 853 687 ACZ 10
chrome
 1H0 853 714 C Z 10
chrome
 1H6 853 687 ADZ 10
silver grey
 1H6 853 431 AC7 SH
chrome
 1H6 853 687 AEZ 10
Multicolour
 1H6 853 750 M 8 SK
chrome
 1H6 853 687 AFZ 10
anthracite
 1H6 853 431 T 2 ZE
chrome
 1H6 853 687 AGZ 10
silver
 1H6 853 431 T 1 ZQ
chrome colored
 1H6 853 687 AJZ 10
tornado red
 1H6 853 687 AJQ N5
(1)
Sill trim strip
 1H4 853 372 B
(1)
Sill trim strip
 1H4 853 372 B
(2)
Sill trim strip
 1H4 853 373 B
(2)
Sill trim strip
 1H4 853 374 B
(2)
Sill trim strip
 1H3 853 373 B
(2)
Sill trim strip
 1H3 853 373 B
(2)
Sill trim strip
 1H3 853 374 B
(25)
VW emblem
 3A0 853 600
(25)
VW emblem
 323 853 601
(26)
inscription 'VR 6' HIGHLINE
'VR 6'
 1H6 853 679 D
(26)
inscription 'VR 6'
'VR 6'
 1H6 853 679 F
(26)
inscription '16 V' GOLF
'16 V'
 1H6 853 679 G
(28)
VW emblem
 1H6 853 630 C
(28)
VW emblem HIGHLINE
 1H6 853 630 D
(30)
inscription 'GTI'
'GTI'
 1H6 853 687 AJ
(30)
inscription 'GOLF GLI'
'GOLF GLI'
 1H6 853 687 AG
(30)
inscription 'GOLF CLI'
'GOLF CLI'
 1H6 853 687 AF
(30)
inscription 'GOLF GTD'
'GOLF GTD'
 1H6 853 687 AE
(30)
inscription 'GOLF GT'
'GOLF GT'
 1H6 853 687 AC
(30)
inscription 'GOLF'
'GOLF'
 1H6 853 687 AH
(32)
inscription 'VR 6' 'HIGHLINE'
'VR 6'
 1H6 853 675 B
(32)
inscription 'VR 6'
'VR 6'
 3A0 853 675
(32)
Film lettering 'AMERICAN FOOTBALL'
'AMERICAN FOOTBALL'
 1H6 853 750 L
(32)
Film lettering 'EUROPE'
'EUROPE'
 1H6 853 750
(32)
Decorative film 'BON JOVI'
'BON JOVI'
 1H6 853 431 T
(32)
inscription 'ECOMATIC'
'ECOMATIC'
 1H6 853 675 E
(32)
inscription 'TDI I'
'TDI I'
 1H0 853 675 E
(32)
Film lettering 'JOKER'
'JOKER'
 1H6 853 750 M
(32)
inscription 'SDI'
'SDI'
 1H0 853 675 D
(32)
Film lettering 'MOVIE'
'MOVIE'
 1H6 853 750 H
(32)
inscription 'TDI'
'TDI'
 3A0 853 675 B
(32)
Film lettering 'AREZZO'
'AREZZO'
 1H6 853 750 J
(32)
Film lettering 'MATCH'
'MATCH'
 1H6 853 750 K
(32)
Decorative film 'FAMILY'
'FAMILY'
 1H6 853 431 AC
(33)
inscription 'GTI-EDITION'
'GTI-EDITION'
 1H6 853 714 H
(33)
inscription 'GTD'
'GTD'
 1H0 853 714 D
(33)
Trim COLOUR-CONCEPT
 1H6 853 714 G
(33)
inscription 'GT'
'GT'
 1H0 853 714 C
(33)
Trim "A..":RABBIT
 1E0 853 714
(34)
Film lettering 'MOVIE'
'MOVIE'
 1H6 853 431 M
(34)
Film lettering 'SPECIAL'
'SPECIAL'
 1H6 853 431 K
(34)
Film lettering 'EUROPE'
'EUROPE'
 1H6 853 431 A
(34)
Film lettering 'MATCH'
'MATCH'
 1H6 853 431 Q
(34)
Film lettering 'EUROPE'
'EUROPE'
 1H9 853 432
(34)
Film lettering 'AREZZO'
'AREZZO'
 1H6 853 431 P
(34)
Film lettering 'AMERICAN FOOTBALL'
'AMERICAN FOOTBALL'
 1H6 853 431 R
(34)
Decorative film 'BON JOVI'
'BON JOVI'
 1H6 853 431 T
(34)
Decorative film 'JOKER'
'JOKER'
 1H6 853 431 AB
(34)
Decorative film 'OTMAR ALT'
 1H6 853 431 AE
(34)
Decorative film 'OTMAR ALT'
 1H6 853 431 AH
(35)
Decorative film 'OTMAR ALT'
 1H6 853 431 AD
(35)
No longer available 'OTMAR ALT'
 —
(36)
Decorative film 'MOVIE'
 1H6 853 432 C
(36)
Decorative film 'FAMILY'
'FAMILY'
 1H6 853 431 AC
(38)
Decorative film 'OTMAR ALT'
 1H6 853 431 AG
(6)
press stud 9,5 X 6 X 31
9,5 X 6 X 31
 N 908 315 01
(9)
Radiator grille, complete
 1H6 898 913 B
1
Sill trim strip
 1H4 853 371 B
1
Sill trim strip
 1H4 853 371 B
10
Radiator grille, complete For vehicles with twinheadlights
 1H6 898 913 C
11
Radiator grille
 1H6 853 653 C
12
Radiator grille For vehicles with twinheadlights
 1H6 853 653 D
13
retaining frame Radiator grille For vehicles with twinheadlights
 1H6 853 655 A
14
Trim
 1H6 853 661
15A
Sleeve
 1H0 854 549
15A
Sleeve
 6H0 854 549 B
25
VW emblem
 3A0 853 600
26
inscription 'GTI'
'GTI'
 1H6 853 679 E
28
VW emblem
 3A9 853 630
3
Clip
 1H0 853 577
30
inscription 'GOLF GTI'
'GOLF GTI'
 1H6 853 687 AD
32
inscription '16 V'
'16 V'
 357 853 675 A
33
inscription 'GTI'
'GTI'
 1H6 853 714 C
36
Decorative film 'MOVIE'
 1H6 853 431 N
37
Decorative film 'OTMAR ALT'
 1H6 853 431 AJ
37
No longer available 'OTMAR ALT'
 —
38
Decorative film 'OTMAR ALT'
 1H6 853 431 AF
38/39
No longer available 'OTMAR ALT'
 —
39
inscription 'OTMAR ALT'
'OTMAR ALT'
 1H6 853 750 N
4
Bracket
 1H0 971 003 A
5
Bungs 23 X 10,5 X 19
23 X 10,5 X 19
 1H0 867 199
6
press stud 9,5 X 6 X 31
9,5 X 6 X 31
 N 905 740 01
6
press stud 9,5 X 6 X 31
9,5 X 6 X 31
 N 905 740 01
7
Clip 24 X 7,4 X 17,3
24 X 7,4 X 17,3
 1H0 867 199 A
