Sill trim strip radiator grilleinscriptions lettering — Mk3 Golf Front Body (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Trim for pillar b. trim for wheel arch. Protective strips

Generation: Mk3 1994 - 1997 (RDW) Group: Front body Parts: 92 Primary OEM: 1H6 853 431 AB8 SK, 1H3 853 373 B B 41, 1H3 853 373 B F 31

Sill trim strip radiator grilleinscriptions lettering for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 853030 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 91 OEM part numbers across 92 catalogued positions including 1H6 853 431 AB8 SK, 1H3 853 373 B B 41 and 1H3 853 373 B F 31. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 91 OEM part numbers across 92 numbered positions.

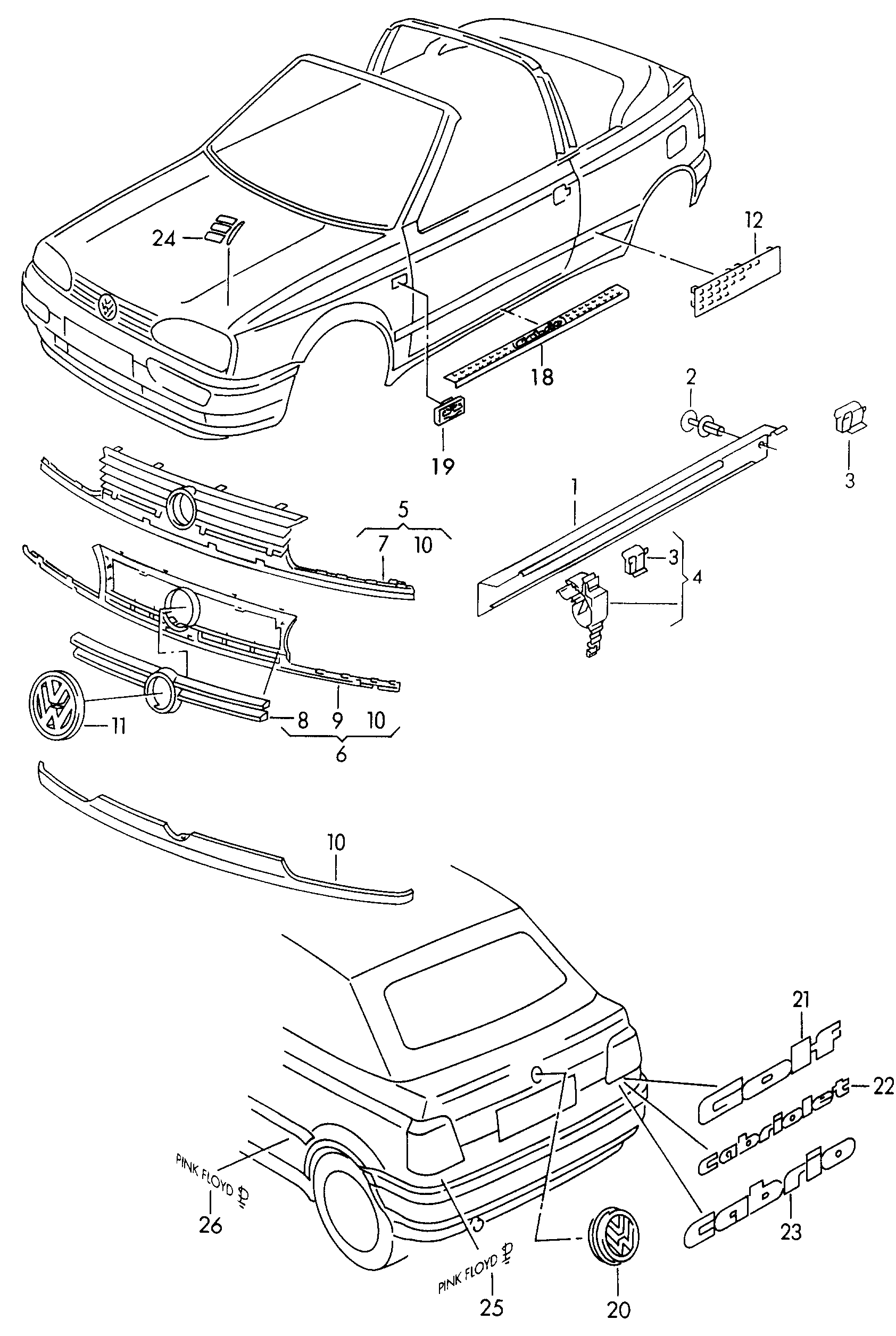

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Multicolour	1H6 853 431 AB8 SK
	Satin black	1H3 853 373 B B 41
	mauritius blue	1H3 853 373 B F 31
	beaver	1H3 853 373 B T 21
	light beige	1H3 853 373 B Q 70
	flint	1H3 853 373 B Y 01
	chrome/grey/turquoise	1E0 853 687 E Z 90
	primed	1H6 853 661 G RU
	Purple violet chrome	1E0 853 687 B H 44
	chrome	3A0 853 600 E PG
	green/blue/red	1H6 853 431 P 6 GP
	Satin black	1E0 853 806 0 1C
	chrome	3A9 853 630 7 39
	chrome	1H6 853 687 AHZ 10
	rolling stones	1H6 853 431 J Z 66
	Satin black/chrome special	1E0 853 687 G X2
	chrome	1E0 853 687 C Z 10
	Purple violet chrome	1E0 853 687 B H 44
	chrome/grey/turquoise	1E0 853 687 E Z 90
	green/blue	1H6 853 431 F 2 JE
	Yellow/black/white	1H6 853 431 L Z 77
	green/blue	1E0 853 750 A 4 KQ
	green/blue	1E0 853 750 A 4 KQ
	rolling stones	1H6 853 750 G Z 55
	green/blue/red	1H6 853 750 J 6 GP
	silver	1H6 853 431 T 1 ZQ
	anthracite	1H6 853 431 T 2 ZE
	chrome	3A0 853 675 B Z 10
	chrome/red	1H0 853 675 E E QW
	Satin black	1H3 853 374 B B 41
	mauritius blue	1H3 853 374 B F 31
	beaver	1H3 853 374 B T 21
	light beige	1H3 853 374 B Q 70
	flint	1H3 853 374 B Y 01
	green/blue	1H6 853 431 G 4 FE
	mauritius blue	1H0 867 199 A H 21
	beaver	1H0 867 199 A T 21
	Satin black	1H0 867 199 A 0 1C
	light beige	1H0 867 199 A Q 70
	flint	1H0 867 199 A Y 01
	blue/silver	1E0 853 431 A 7 SX
	Multicolour	1H6 853 431 AB8 SK
	Satin black	1H6 853 653 C 0 1C
	anthracite	1H6 853 431 T 2 ZE
	primed	1H6 853 653 A G RU
	primed	1H6 853 661 G RU
	silver	1H6 853 431 T 1 ZQ
	Satin black	1H6 853 653 C 0 1C
	primed	1H6 853 653 D G RU
-	fluorescent strip PINK FLOYD	1H6 853 431 G
-	Trim GOLF	1H6 853 661
-	Sleeve	6H0 854 549 B
(1)	Sill trim stripfor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H3 853 374 B
(21)	inscription 'GOLF' 'GOLF'	1H6 853 687 AH
(22)	inscription 'CLASSIC EDITION' 'CLASSIC EDITION'	1E0 853 687 E
(22)	inscription 'CABRIOLET' 'CABRIOLET'	1E0 853 687 C
(22)	inscription 'HIGHLINE' 'HIGHLINE'	1E0 853 687 B
(24)	Decorative film ROLLING-STONES	1H6 853 431 L
(25)	Film lettering 'ROLLING- STONES' 'ROLLING- STONES'	1H6 853 750 G
(25)	Decorative film 'JOKER' 'JOKER'	1H6 853 431 AB
(25)	Film lettering 'AREZZO' 'AREZZO'	1H6 853 750 J
(25)	inscription 'TDI I' 'TDI I'	1H0 853 675 E
(25)	Decorative film 'BON JOVI' 'BON JOVI'	1H6 853 431 T
(25)	inscription 'TDI' 'TDI'	3A0 853 675 B
(26)	Decorative film 'BON JOVI' 'BON JOVI'	1H6 853 431 T
(26)	Decorative film 'JOKER' 'JOKER'	1H6 853 431 AB
(26)	inscription 'CLASSIC EDITION' 'CLASSIC EDITION'	1E0 853 687 E
(26)	inscription 'HIGHLINE' 'HIGHLINE'	1E0 853 687 B
(26)	Film lettering 'SPORTEDITION' 'SPORTEDITION'	1E0 853 431 A
(26)	Film lettering 'ROLLING- STONES COLLECTION' 'ROLLING- STONES COLLECTION'	1H6 853 431 J
(26)	Film lettering 'AREZZO' 'AREZZO'	1H6 853 431 P
(6)	Radiator grille, complete For vehicles with twinheadlights	1H6 898 913 C
1	Sill trim stripfor vehicles with three-pointseat belts with inertia reeland belt tensioner	1H3 853 373 B
10	Trim use if required: 443 845 237 D 443 845 237 D	1H6 853 661
11	VW emblem	3A0 853 600
12	see illustration: 853-000 853-000	—
18	Impact protection film withlettering	1E0 853 806
2	Clip	1H0 867 199 A
20	VW emblem	3A9 853 630
22	inscription 'CABRIOLET' 'CABRIOLET'	1E0 853 687
24	Film lettering Bonnet 'CHOP SUEY' PINK FLOYD 'CHOP SUEY'	1H6 853 431 F
25	Film lettering 'PINK FLOYD' 'PINK FLOYD'	1E0 853 750 A
26	Film lettering 'PINK FLOYD' 'PINK FLOYD'	1E0 853 750 A
3	Clip	1H0 853 577
4	Bracket	1H0 971 003
4	Bracket	1H0 971 003 A
5	Radiator grille use if required: 1 H 6 853 661(GRU) GOLF 1 H 6 853 661(GRU)	1H6 853 653 C
5	Radiator grille, complete	1H6 898 913 B
7	Radiator grille	1H6 853 653 C
8	Radiator grille For vehicles with twinheadlights	1H6 853 653 D
8	Radiator grille For vehicles with twinheadlights	1H6 853 653 A
9	retaining frame Radiator grille For vehicles with twinheadlights F >> 1 E-W-024 000*	1H6 853 655 A
